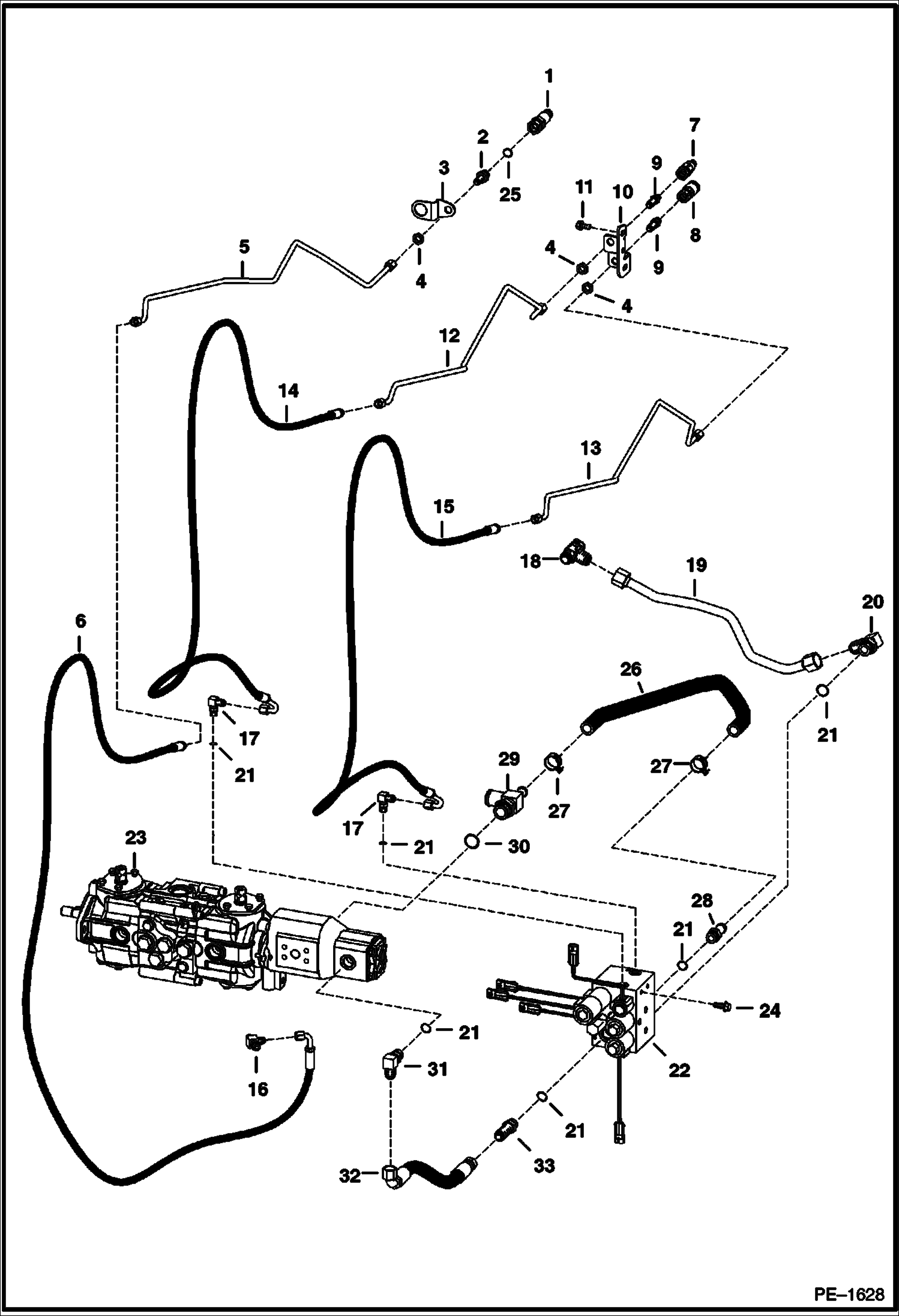

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (S/N 500K11039-12193, 517619259-20247, 518012219 & Above, 518112090-12285, 519018910-21332, 519212155-12389) HIGH FLOW HYDRAULICS

1

6667806

COUPLER male

1

6669659

O-RING

2

6726479

ADAPTER W/Ref. 25 - check boss face to determine correct replacement o-ring - Was 6711628 - A

2

97K6

O RING flared end

3

6711913

BRACKET

4

86F5

NUT

5

6718136

TUBE

6

7114121

HOSE Was 6734664 - A

7

6667804

COUPLER, FF MALE

7

6669657

SEAL KIT

8

6667803

COUPLER, FF FEMALE

9

6716089

CONNECTOR W/ O-rings

10

6711674

MOUNT

11

84G3712

BOLT 5

12

6718245

TUBE

13

6718244

TUBE

14

HOSE NLA - Order Ref. 15 - Was 6718455 - A

15

6718454

HOSE 107'' (2,717 mm) long - 37 degree flare female swivel 90 degree and 37 degree flare male

16

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 34 - check boss face to determine correct replacement o-ring - Was 21KV00005B - A

16

97K6

O RING flared end

16

17KB0606

FITTING See Illustration HYDROSTATIC CIRCUITRY/ PE1037 W/Ref. 34 - check boss face to determine correct replacement o-ring - For Standard Flow Hydraulics See Ref. 28 on ILL. PE1037 - Was 17KV00005B -

17

17KB0606

FITTING W/Ref. 34 - check boss face to determine correct replacement o-ring - Was 17KV00005B - A

17

97K6

O RING flared end

18

6718098

CONNECTOR

19

6726192

TUBE

20

6676944

VALVE 90 degrees inline check - W/Ref. 35 - check boss face to determine correct replacement o-ring

21

99K10

O'RING tapered boss face

21

79K10

O RING 10 flat boss face

22

6669203

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1434R - select

23

PUMP See Illustration HYDROSTATIC PUMP/ B17103

24

35C616

BOLT 5

25

99K8

O-RING tapered boss face

25

79K8

O RING 10 flat boss face

26

6726196

HOSE

27

5HM29

HOSECLAMP constant tension - Was 5HM00027B - A

28

1316263

ADAPTER W/Ref. 21 - check boss face to determine correct replacement o-ring

29

6714904

TEE W/Ref. 30

30

79K16

O RING 10

31

17KB1010

FITTING, HYD ELBOW W/Ref. 21 - check boss face to determine correct replacement o-ring - Was 17KV00007B - A

31

97K10

O-RING 10 flared end

32

6729094

HOSE Use W/Ref. 33 (16KN-7 Adapter)

32

6705497

HOSE Use W/Ref. 33 (15KV-7 Adapter)

33

16KB1010

FITTING, HYD ELBOW W/Ref. 21 - Use W/Ref. 32 - check boss face to determine correct replacement o-ring - (6729094 Hose) - Was 16KN00007B - A

33

15KB1010

FITTING, HYD CONNECTOR W/Ref. 21 - Use W/Ref. 32 - check boss face to determine correct replacement o-ring - (6705497 Hose) - Was 15KV00007B - A

34

99K6

O RING tapered boss face

34

79K6

O RING 10 flat boss face

35

99K12

O RING tapered boss face

35

79K12

O RING 10 flat boss face
