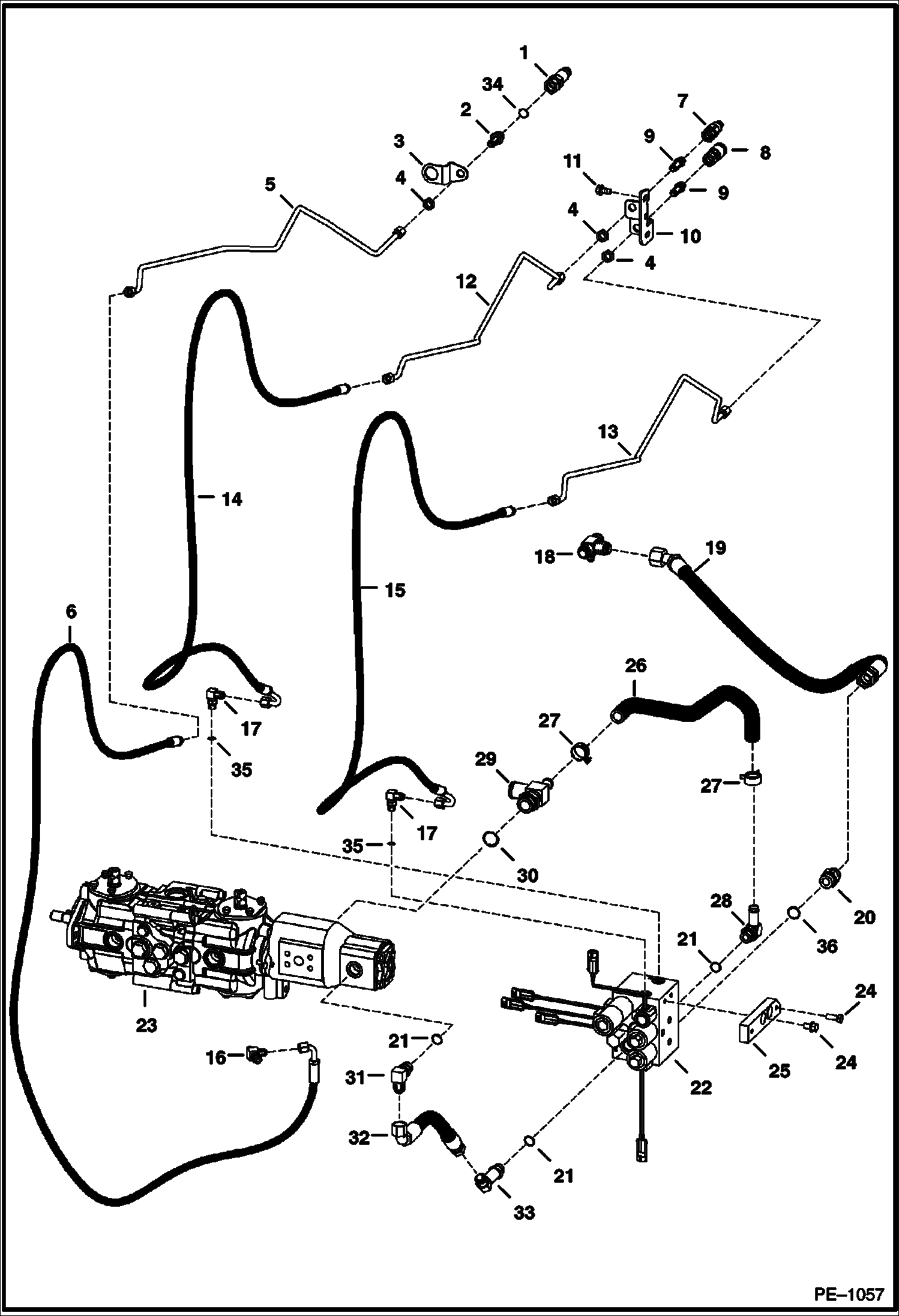

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (S/N 500K11038 & Below, 517619258 & Below, 518012218 & Below, 518112089 & Below, 519018909 & Below, 519212154 & Below) HIGH FLOW HYDRAULICS

1

6667806

COUPLER male

1

6669659

O-RING

2

6726479

ADAPTER W/Ref. 34 - flat boss face - Was 6711628 - A

2

6726479

ADAPTER W/Ref. 34 - tapered boss face - Was 6711628 - A

2

97K6

O RING flared end

3

6711913

BRACKET

4

86F5

NUT

5

6718136

TUBE

6

7114121

HOSE Was 6734664 - A

7

6667804

COUPLER, FF MALE

7

6669657

SEAL KIT

8

6667803

COUPLER, FF FEMALE

9

6716089

CONNECTOR W/ O-rings

10

6711674

MOUNT

11

84G3712

BOLT 5

12

6718245

TUBE

13

6718244

TUBE

14

HOSE NLA - Order Ref. 15 - Was 6718455 - A

15

6718454

HOSE

16

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 21 - Was 21KV00005B - A

16

97K6

O RING flared end

17

17KB0606

FITTING W/Ref. 21 - Was 17KV00005B - A

17

97K6

O RING flared end

18

6718098

CONNECTOR

19

6729146

HOSE Was 6712856 - A

20

6659459

CHECK VALVE inline check

21

99K10

O'RING tapered boss face

21

79K10

O RING 10 flat boss face

22

6669203

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1434R - select

23

PUMP See Illustration HYDROSTATIC PUMP/ B17103

24

17C616

BOLT 5

25

6705471

MOUNT

26

6717886

HOSE

27

5HM29

HOSECLAMP constant tension - Was 5HM00027B - A

28

6717885

ELBOW W/Ref. 21 - check boss face to determine correct replacement o-ring

29

6714904

TEE W/Ref. 30 - check boss face to determine correct replacement o-ring

30

79K16

O RING 10 flat boss face

30

99K16

O-RING tapered boss face

31

17KB1010

FITTING, HYD ELBOW W/Ref. 21 - Was 17KV00007B - A

31

97K10

O-RING 10 flared end

32

6728613

HOSE Was 6718074 - A

33

6718080

ELBOW W/Ref. 21

34

79K8

O RING 10 O-RING

34

99K8

O-RING tapered boss face

35

79K6

O RING 10 flat boss face

35

99K6

O RING tapered boss face

36

79K12

O RING 10 flat boss face

36

99K12

O RING tapered boss face
