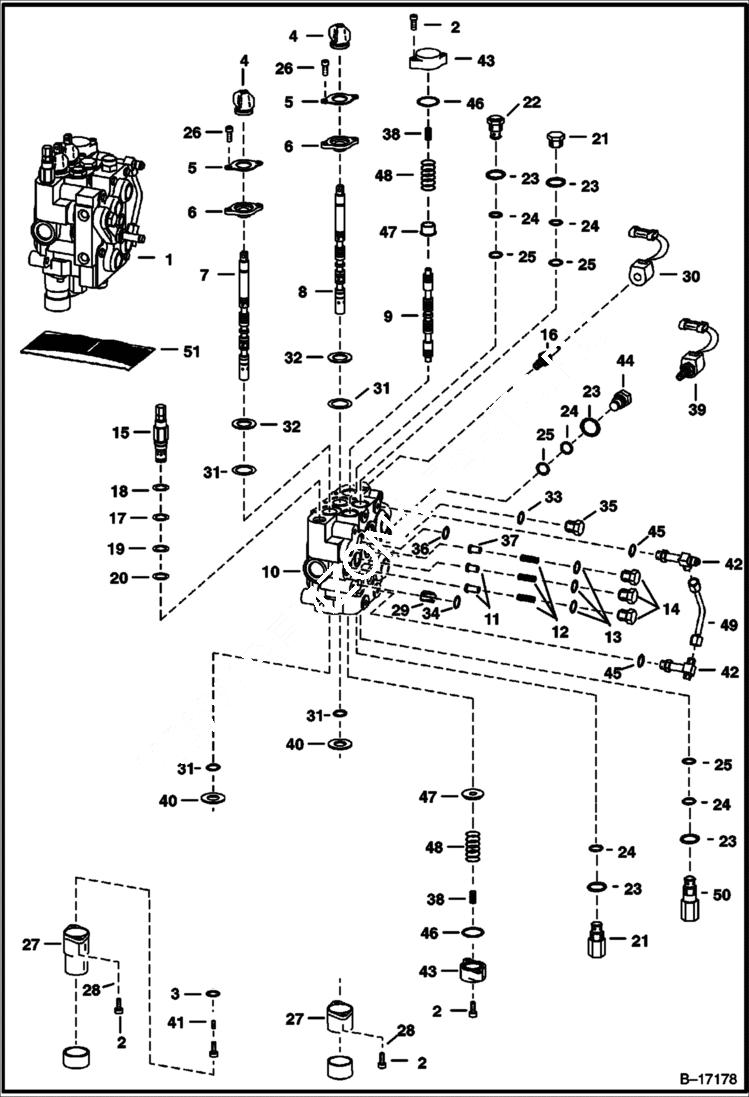

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (Advanced Control System) (W/BICS Combo Valve) HYDRAULIC SYSTEM

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365 - BICS CONTROL

2

29G416

BOLT

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER

6

6589565

BUSHING seal

7

SPOOL NLA - lift - # 1 or Red - Order 7108251 - Was 6677660 - A

7

SPOOL NLA - lift - # 2 or Green - Order 7108251 - Was 6677661 - A

7

7108251

SPOOL, LIFT Was 7101151 - A

8

SPOOL NLA - tilt - # 1 or Red - Order 7108242 - Was 6677662 - A

8

SPOOL NLA - tilt - # 2 or Green - Order 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - W/Ref. 17-20 - pressure preset in factory - Was 6676200 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6666616

STEM

16

6688743

STEM, VALVE CONTROL W/Screen Was 6678892

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6678574

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6673184 - A

22

6667549

VALVE anti-cavity check - W/Ref. 23-25

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10

26

29G412

BOLT

27

6676496

BONNET

27

7101345

BONNET, DETENT HYD VALVE for Ref. 1 (6812670 Valve) - Was 6587633 - A

28

25E13

WASHER 5

29

6800124

ORIFICE 0.185

30

6717706

COIL, 10 VOLT 10 volt - W/ 6676566 nut - for 6666616 stem

30

6676566

NUT for 6666616 stem and 6717706 coil

30

6678891

COIL 10 volt - W/ 6691022 nut - for 6688743 stem

30

6691022

NUT for 6688743 stem and 6678891 coil - Was 6690705 - A

31

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

32

1K127

O-RING 10 Was 93K127 - A

33

95K12

O-RING tapered boss face - Was 99K000012B - B

34

55K212

O RING 10

35

90K8

PLUG W/Ref. 33 - tapered boss face - socket head - Was 90KV00008B - A

36

55K204

O RING 10

37

6596569

SEAT

38

6806007

SPRING white

39

6665084

SOLENOID W/Ref. 16 (6666616 stem) & 30 (6717706 coil)

39

6586459

SEAL KIT

39

SOLENOID NLA - W/Ref. 16 (6678892 Stem) & 30 (6678891 coil) - Was 6678893 - A

40

6595663

BUSHING

41

6801167

PLUG plastic - 0.69'' long

42

6817553

CROSS W/Ref. 45 - flat boss face - Was 6805241 - A

42

97K6

O RING flared end

43

6588781

END CAP

44

6592720

PLUG W/Ref. 23-25

45

97K6

O RING

45

79K6

O RING 10 flat boss face

46

58K124

O RING 10

47

7108780

SLEEVE Was 6595951 - A

48

6596332

SPRING

49

6577690

TUBE

50

6678552

VALVE port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6671632 - A

51

6816250

KIT, SEAL one spool - Ref. 2, 3, 4, 26, 32 & 32 - Was 6803605 - A

51

6632279

KIT, SEAL main relief - Ref. 17-20 - main relief

51

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

51

6816253

KIT, SEAL complete - Ref. 2, 4, 13, 17-20, 23-26, 31, 32, 34, 36, 45 & 46 - also Order 6816250 seal kit - Was 6809448 - A
