Артикул
Название
Примечание
Количество

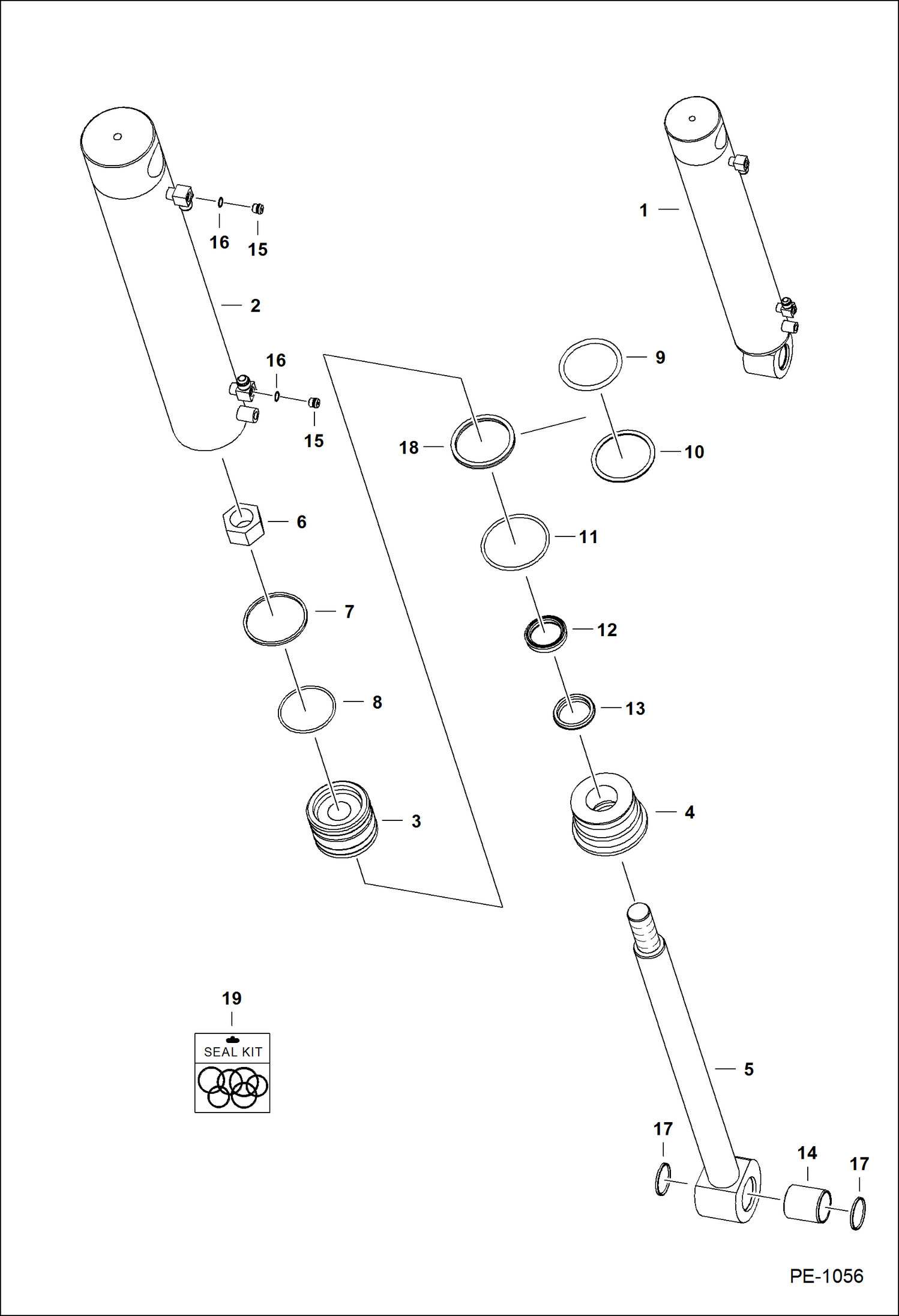

1
CYLINDER, TILT NLA - Ref. 2-13, 15 & 16 - 0.563'' base end fitting - Order 7117174 cylinder & 7114236 hose - Was 6809802 - A
2
CASE NLA - 70 mm (2.75'') ID - 0.563'' base end fitting - Order 7117175 case & 7114236 hose - Was 6809904 - A
2
7117175
TUBE, CASE CYL TILT 70 mm (2.75'') ID - 0.75'' base end fitting
3
6806315
PISTON
5
6809903
SHAFT, ROD CYL TILT 35 mm (1.375'') - W/Ref. 14
6
92D16
NUT
7
25K30210
O-RING Was 54K30210 - B
8
6516229
PISTON SEAL
9
25K60212
O RING 10 Was 54K60212 - B
10
80K332
WASHER back-up
11
25K40224
O RING 10 Was 54K40224 - B
12
6667325
SEAL rod
13
6666543
WIPER, ROD CYL
15
90KV2
PLUG W/Ref. 16 - allen socket head - tapered boss face
15
6812170
PLUG W/Ref. 16 - hex head - flat boss face
16
95K3
O'RING tapered boss face
16
75K3
O-RING flat boss face
18
7008356
SEAL, QUAD
Выбрано товаров: 24
