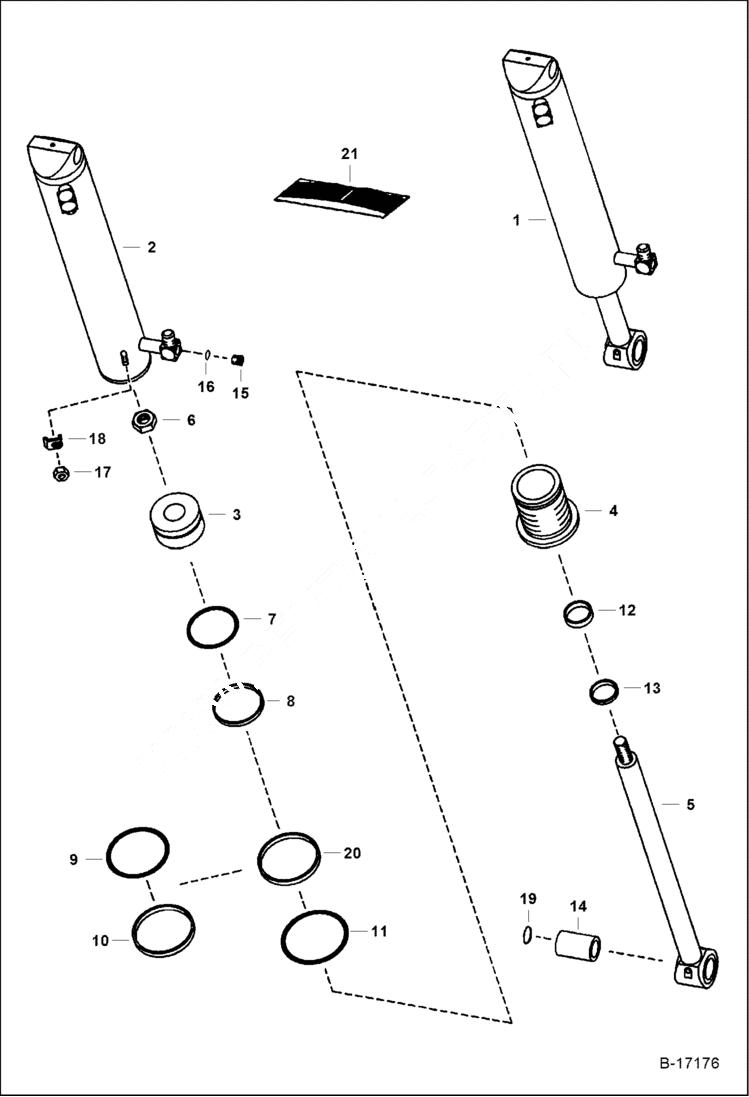

Запчасти Bobcat 700s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER, TILT See Illustration TILT CYLINDER/ PE1056 - NLA - Ref. 2-8 & 11-20 - 0.563'' thread base end fitting - Order 7117174 cylinder & 7114236 hose - Was 6806331 - A

2

CASE See Illustration TILT CYLINDER/ PE1056 - NLA 70 mm (2.75'') ID - 0.563'' thread base end fitting - Order 7117175 case & 7114236 hose - WAS 6806337 - A

3

6806315

PISTON

4

6536968

HEAD Was 6806332 - A

5

6809903

SHAFT, ROD CYL TILT 35 mm (1.375'') - W/Ref. 14 - Was 6806336 - A

6

92D16

NUT

7

25K30210

O-RING Was 54K30210 - B

8

6516229

PISTON SEAL

9

25K60212

O RING 10 Was 54K60212 - B

10

80K332

WASHER back-up

11

25K40224

O RING 10 Was 54K40224 - B

12

6667325

SEAL rod

13

6666543

WIPER, ROD CYL

14

6805453

BUSHING wear

15

90KV2

PLUG W/Ref. 16 - allen socket head - tapered boss face - Was 90KV00005B - A

16

95K3

O'RING

17

85D6

NUT, 5

18

6562266

CLAMP

19

6654117

SEAL, OIL 51 mm (2'') OD

19

225855

SEAL, OIL 10 38 mm (1.5'') OD

20

7008356

SEAL, QUAD

21

6806330

KIT, SEAL Ref. 6-8, 11-13 & 20
