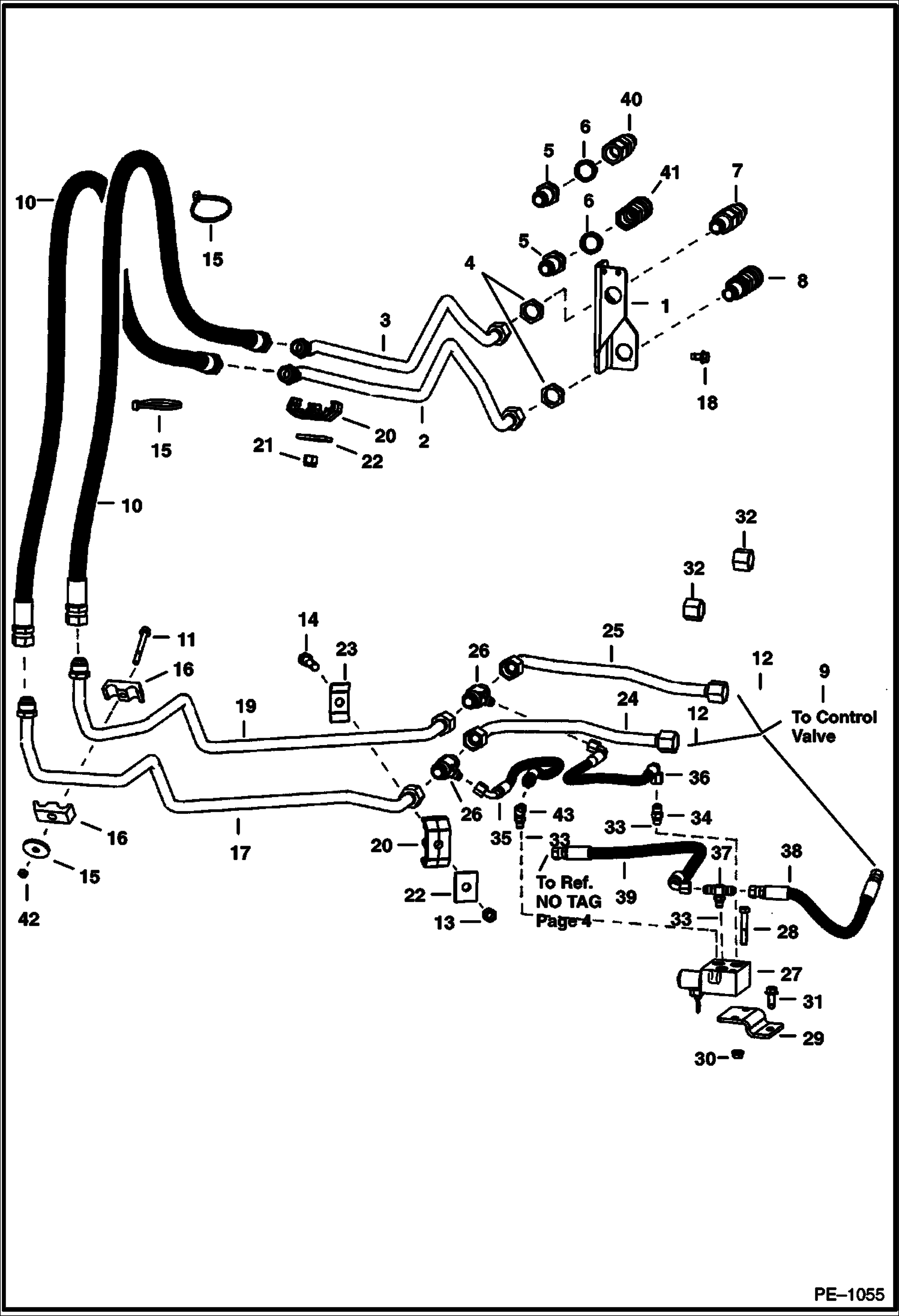

Запчасти Bobcat 700s AUXILIARY HYDRAULICS (W/Pressure Relief) (S/N 500K11977 & Below, 517620140 & Below, 518012386 & Below, 518112245 & Below, 519021020 & Below, 519212363 & Below) HYDRAULIC SYSTEM

1

6714665

MOUNT

2

6718027

TUBE

3

6718028

TUBE

4

86F8

NUT 5

5

CONNECTOR NLA - W/Ref. 6 - tapered boss face - Order 6812823 - Was 6716090 - A

5

97K12

O'RING flared end

5

6812823

ADAPTER W/Ref. 6 - flat boss face

6

99K12

O RING tapered boss face

6

79K12

O RING 10 flat boss face

7

6676445

COUPLER male - FF

7

6676445

COUPLER

7

6676445

COUPLER

7

6676445

COUPLER

7

6676445

COUPLER

7

6676445

COUPLER

8

6676447

COUPLER female - FF

8

6676447

COUPLER

8

6676447

COUPLER

8

6676447

COUPLER

8

6676447

COUPLER

8

6676447

COUPLER

9

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17144

10

6729161

HOSE W/cover - Was 6718069 - A

11

35C540

BOLT

12

ADAPTER NLA - W/Ref. 6 - tapered boss face - Was 15KN00008B - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

13

61D8

NUT 5

14

17C832

BOLT

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

6717867

TUBE

18

84G3712

BOLT 5

19

6717440

TUBE

20

6717951

CLAMP

21

59D8

NUT 5

22

6553709

WASHER

23

6718657

CLAMP

24

6717866

TUBE

25

6717439

TUBE

26

6717923

TEE

26

97K12

O'RING flared end

27

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 NLA - W/.4375'' threaded ports - Order 6678150 valve, 15KB606, 17KB606 & 19KB606 fittings - Was 6674372 - A

27

6678150

VALVE See Illustration PRESSURE RELEASE VALVE/ PE1017 W/.5625'' threaded ports

28

17C636

BOLT

29

6717384

BRACKET

30

55D6

NUT

31

84G3716

SCREW 5

32

36K8

CAP W/O front auxiliaries

33

79K4

O RING 10 flat boss face

33

99K6

O RING tapered boss face

33

79K6

O RING 10 flat boss face

33

99K6

O RING tapered boss face

34

ADAPTER NLA - W/Ref. 33 (99K4) - flat boss face - Use W/Ref. 27 (NLA/6674372 Valve) - Was 6718109 - A

34

97K6

O RING flared end

34

15KB0604

FTG HYD S CONNECTOR W/Ref. 33 (79K4) - flat boss face - Use W/Ref. 27 (NLA/ 6674372 valve)

34

ADAPTER W/Ref. 33 (99K6 O-Ring) - Use W/Ref. 27 (6678150 Valve) - Order 15KB606 - Was 15KV00005B - A

34

97K6

O RING flared end

34

15KB0606

FITTING, HYD CONNECTOR W/Ref. 33 (79K6 O-ring) - Use W/Ref. 27 (6678150 valve)

35

6718962

HOSE

36

6717387

HOSE

37

TEE NLA - W/Ref. 33 (99K4 O-Ring) - Use W/Ref. 27 (NLA/6674372 Valve) - Order 19KB604 - Was 6718183 - A

37

97K6

O RING flared end

37

19KB0604

FITTING, HYD TEE W/Ref. 33 (79K4) - flat boss face - Use W/Ref. 27 (NLA/6674372 Valve)

37

TEE NLA - W/Ref. 33 (99K-4 O-Ring) - Use W/Ref. 27 (6678150 Valve) - Order 19KB606 - Was 19KV00005B - A

37

97K6

O RING flared end

37

19KB0606

TEE W/Ref. 33 (79K6) - Use W/Ref. 27 (6678150 Valve)

38

6717385

HOSE

39

6711166

HOSE

40

QUICK COUPLER NLA - male FF - Order Ref. 7 - Was 6667808 - B

40

6679841

SEAL Was 6672026 - A

41

QUICK COUPLER NLA - female FF - Order Ref. 8 - Was 6672960 - B

42

85D5

NUT 5

43

ELBOW NLA - W/Ref. 33 (99K4) - Use W/Ref. 27 (NLA/6674372 Valve) tapered boss face - Order 17KB604 - Was 6718182 - A

43

97K6

O RING flared end

43

17KB0604

ELBOW UNION W/Ref. 33 (79K4) - Use W/Ref. 27 (NLA/6674372 Valve) flat boss face

43

ELBOW NLA - W/Ref. 33 (99K6) tapered boss face - Use W/Ref. 27 (6678150 Valve) Order 17KB606 - Was 17KV00005B - A

43

97K6

O RING flared end

43

17KB0606

FITTING W/Ref. 33 (79K6) - Use W/Ref. 27 (6678150 Valve)
