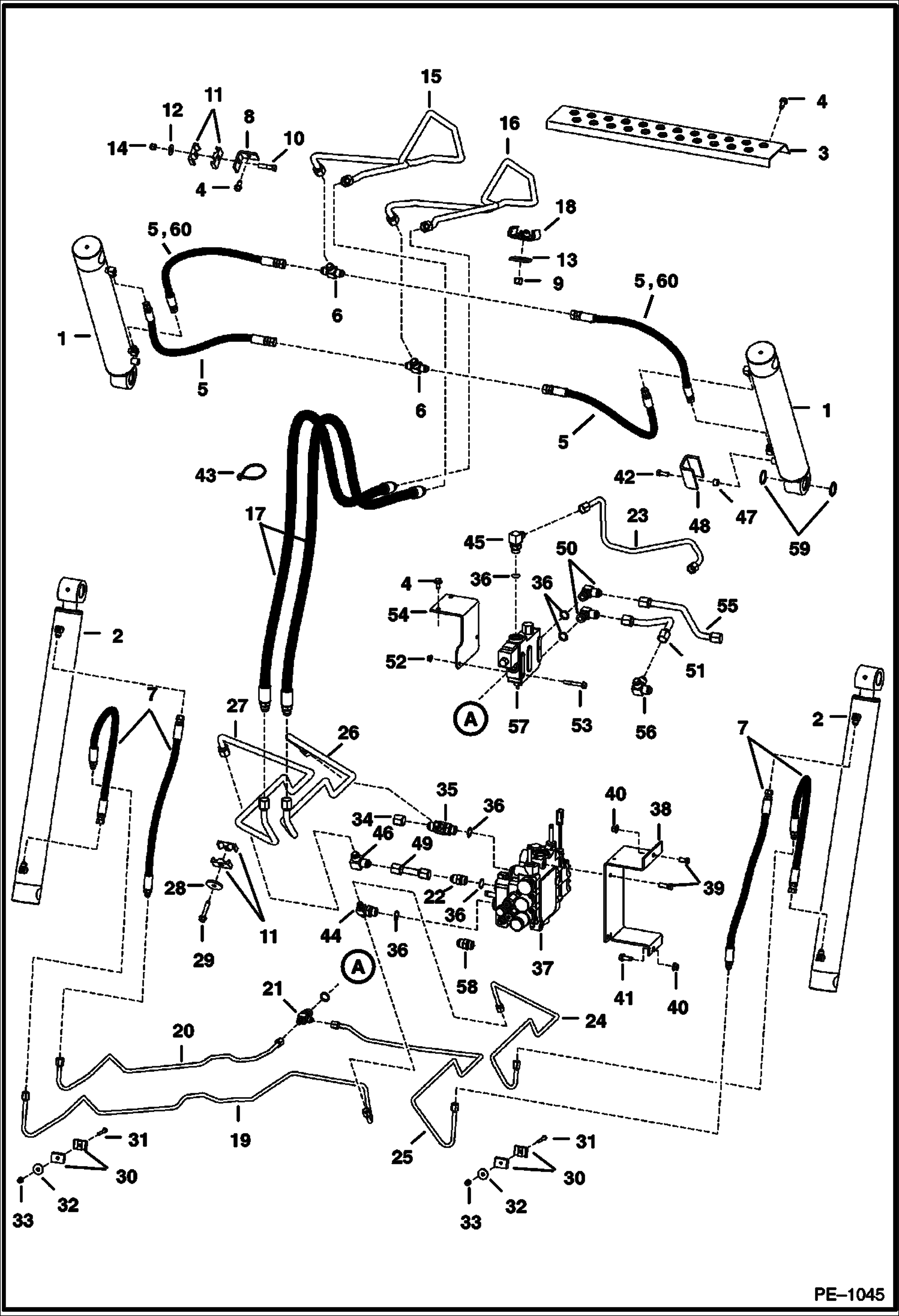

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/BPV) (S/N 500K11038 & Below, 517619258 & Below, 518012218 & Below, 518112089 & Below, 519018909 & Below, 519212154 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ B17176 TILT

2

CYLINDER See Illustration LIFT CYLINDER/ B13593 LIFT

3

6717502

BOOM STEP W/ 2'' (50,8 mm) mtg. hole surface

3

6735669

BOOM STEP W/ 3.4'' (86,4 mm) mtg hole surface

4

84G3712

BOLT 5

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (2) per tilt cylinder W/.5625'' thread base end fitting

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

6

6716061

TEE

7

7116564

HOSE Was 7104132 - A

8

6718238

BRACKET

9

59D8

NUT 5

10

17C628

BOLT

11

6701893

CLAMP

12

27E6

WASHER 5

13

6553709

WASHER

14

59D6

NUT

15

6718030

TUBE

16

6725337

TUBE

17

6719439

HOSE

18

6717933

CLAMP

19

6717437

TUBE

20

6717441

TUBE

21

TEE NLA - W/Ref. 36 - tapered boss face - Was 6717503 - A

21

97K6

O RING flared end

21

21KB0610

FITTING, HYD TEE W/Ref. 36 - flat boss face

22

15KB1010

FITTING, HYD CONNECTOR W/Ref. 36 - check boss face to determine correct replacement o-ring - Was 15KV00007B - A

22

97K10

O-RING 10 flared end

23

6717436

TUBE

24

6717444

TUBE

25

6717445

TUBE

26

6717442

TUBE

27

6717443

TUBE

28

872229

WASHER

29

84G3732

BOLT

30

6578870

CLAMP

31

17C428

BOLT

32

6701174

WASHER

33

83D4

NUT 10

34

36K7

FITTING

35

21KB1010

FITTING, HYD TEE W/Ref. 36 - check boss face to determine correct replacement o-ring - Was 21KN00007B - A

35

97K10

O-RING 10 flared end

36

99K10

O'RING tapered boss face

36

79K10

O RING 10 flat boss face

37

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17144

38

6717143

MOUNT

39

17C620

BOLT Was 17C000612B - B

40

83D6

NUT 5

41

84G3716

SCREW 5

42

17C616

BOLT 5

43

6624289

STRAP, TIE

44

TEE NLA - W/Ref. 36 - tapered boss face - Was 6717492 - A

44

19KB0610

FITTING, HYD TEE W/Ref. 36 - flat boss face

45

ELBOW NLA - W/Ref. 36 - flat boss face - Was 6715716 - A

45

97K8

O-RING flared end

45

17KB0810

FITTING, HYD ELBOW W/Ref. 36 - flat boss face

46

77F7

ELBOW

47

6725969

SPACER

48

6725592

GUARD U shaped guard

49

6710573

TUBE 3.25''(82,6 mm) long

50

17KB1010

FITTING, HYD ELBOW W/Ref. 36 - check boss face to determine correct replacement o-ring - Was 17KV00007B

50

97K10

O-RING 10 flared end

51

6717435

TUBE

52

57D5

NUT

53

35C536

BOLT

54

6717142

BRACKET

55

6717434

TUBE

56

6705070

TEE

57

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - order 6673959 valve - If loader is not equipped with an on/off switch also order 6647784 pluf, 79K8 O-ring, 6647785 spring, & 6647783 load

58

6715184

ADAPTER See Illustration HYDRAULIC CONTROL VALVE/ B17144 USE W/VALVE

59

6654117

SEAL, OIL 51 mm (2'') OD

59

225855

SEAL, OIL 10 38 mm (1.5'') OD

60

7114236

HOSE .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting
