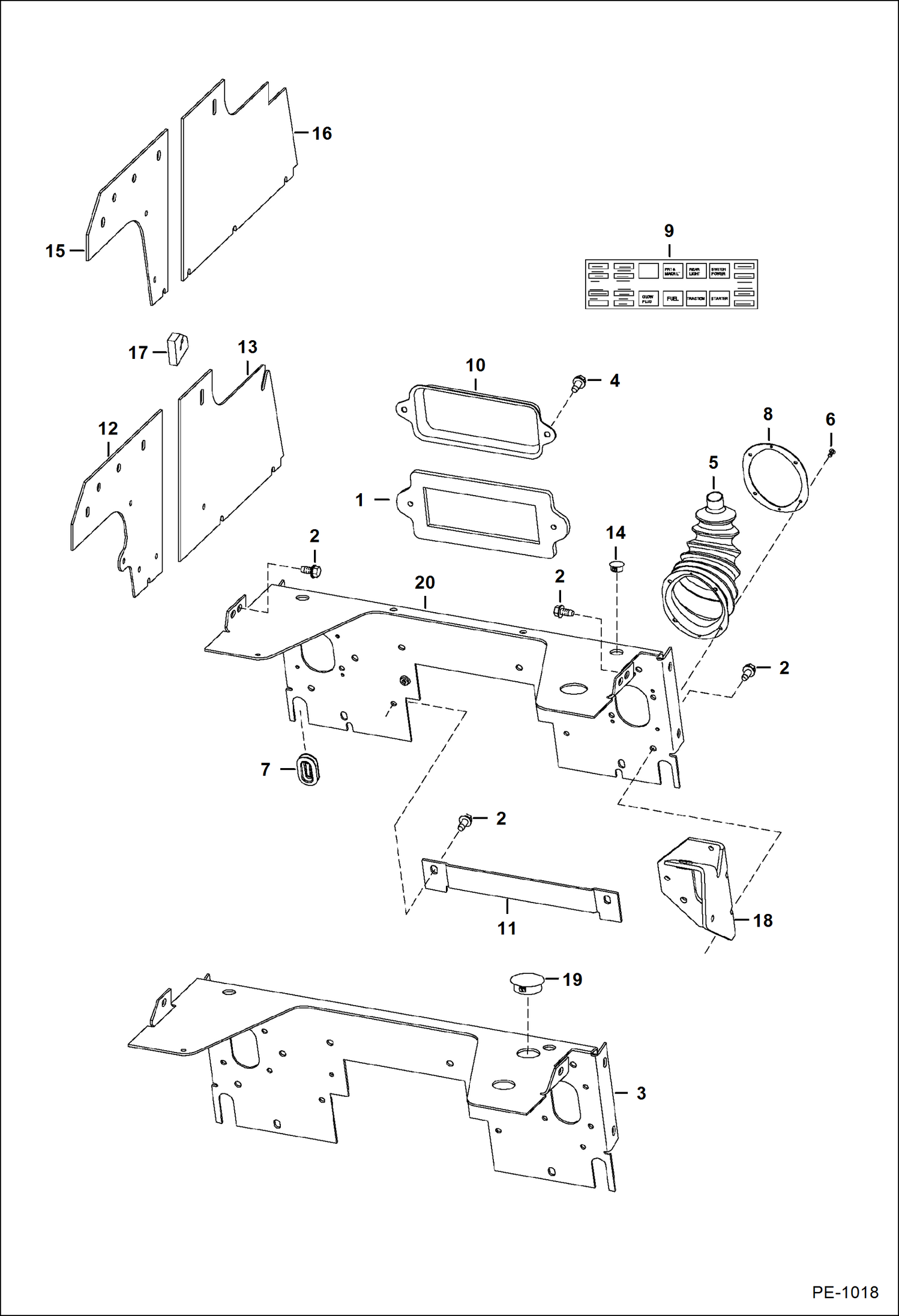

Запчасти Bobcat 700s PANELS MAIN FRAME

1

6725302

GASKET

2

84G3712

BOLT 5 Use W/Ref. 12 & 13

2

84G3712

BOLT 5 Use W/Ref. 15 & 16

3

SHIELD NLA - Order Ref. 20 & 6734520 cover - Was 7106687 - A

4

84G3112

BOLT 5

5

6532127

BOOT W/Ref. 8

6

6630207

RIVET 5

7

6577961

GROMMET

8

PLATE NLA - Order Ref. 5

9

DECAL NLA - fuse/relay - 2.10'' x 9.40'' (53,3 mm x 238,8 mm) - Order 6718774 Decal

9

6718774

DECAL fuse/relay - 2'' x 7'' (50,8 mm x 177,8 mm)

10

6716621

COVER fuse/relay

10

6736071

KIT extreme applications - W/decal & insulation

10

6718774

DECAL extreme applications

10

6731275

INSULATION fuse/ relay

11

6717890

COVER

12

7117232

PANEL rear side - Was 6732620

13

6717313

PANEL side front

14

6657719

PLUG 0.75'' dia hole

14

6648348

PLUG 0.81'' dia hole

15

6717207

PANEL side - A

16

6732621

PANEL side - front

17

6733529

SEAL Use W/Ref. 16

18

BRACKET See Illustration HAND CONTROLS/ B21594 R.H. - Was 6733022 - A

18

BRACKET See Illustration HAND CONTROLS/ B21594 L.H. - Was 6733024 - A

19

6681469

PLUG 35 mm (1.38'') dia hole - Was 6665697 - A

20

7139183

SHIELD
