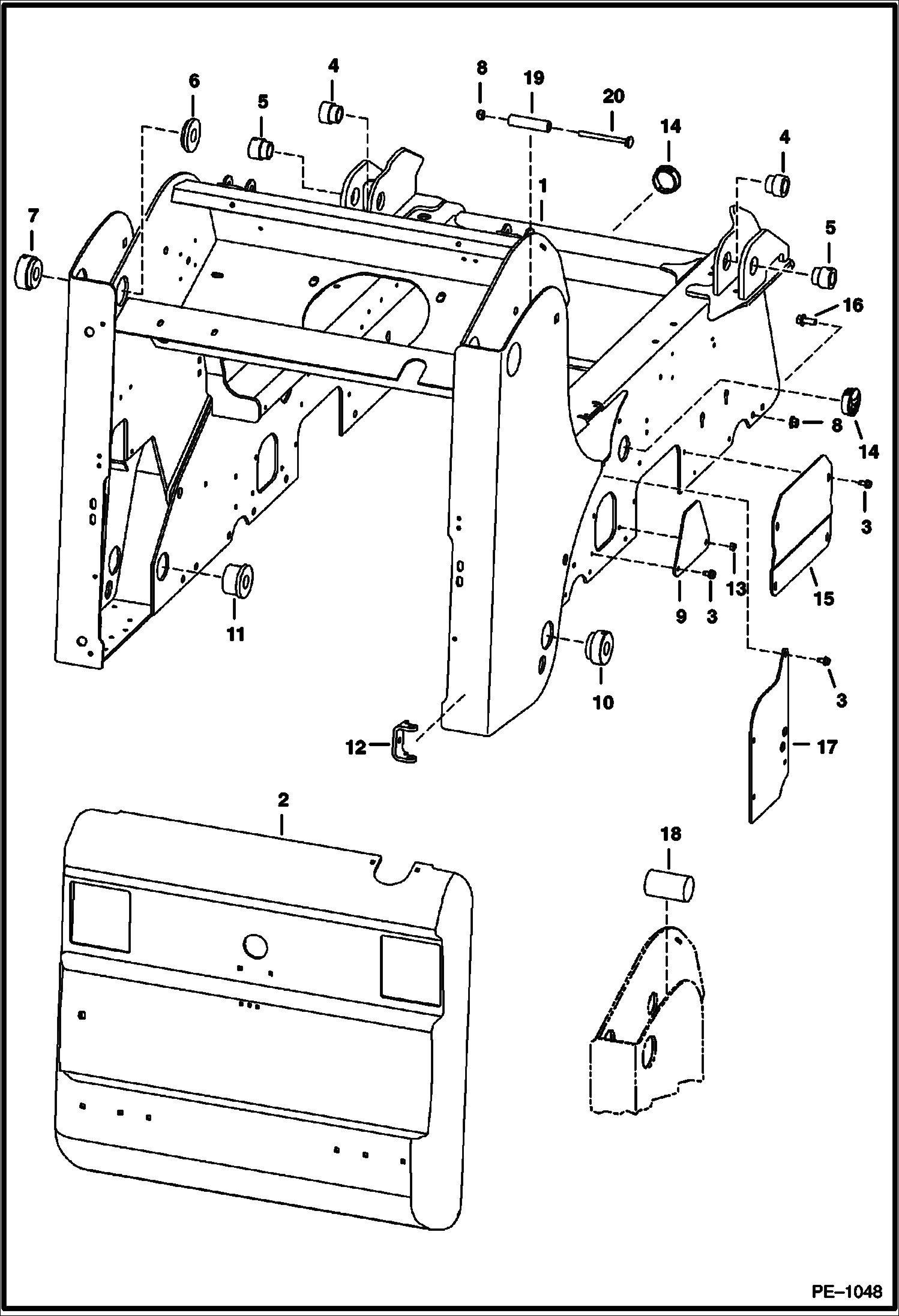

Запчасти Bobcat 700s MAIN FRAME MAIN FRAME

1

6717052

MAIN FRAME

1

MAIN FRAME NLA - Order 6733002 Main Frame & 2 of Ref. 15 (6719201 cover ) - Was 6726150 - A

1

6733002

MAIN FRAME

2

6711524

REAR DOOR See Illustration REAR DOOR/ TS1523

3

84G3712

BOLT 5

3

84G3712

BOLT 5

4

6717278

BUSHING, WELD-ON

5

6717277

BUSHING, WELD-ON weld on

6

6717356

BUSHING, WELD-ON weld on

7

6717357

BUSHING weld on - flat edge

7

6731578

BUSHING, WELD-ON

8

83D8

NUT 5

8

83D8

NUT 5

9

6718791

COVER

9

7136696

COVER Was 6726069 - A

10

6717359

BUSHING weld on - bottom upright

10

6731578

BUSHING, WELD-ON

11

6717358

BUSHING WELD-ON weld on

12

6708987

HINGE, WELD-ON

13

61D6

NUT 5

14

6718796

PLUG

15

6706808

COVER A - 12.80'' (325,1 mm) hole pattern

15

6719201

COVER 13.80'' (350,5 mm) hole pattern

16

31C820

BOLT

16

31C820

BOLT

17

6726062

SHIELD

18

6718994

MOUNT weld on - solid

19

6732225

SPACER hollow - .56'' ID

20

37C888

BOLT Use W/Ref. 19
