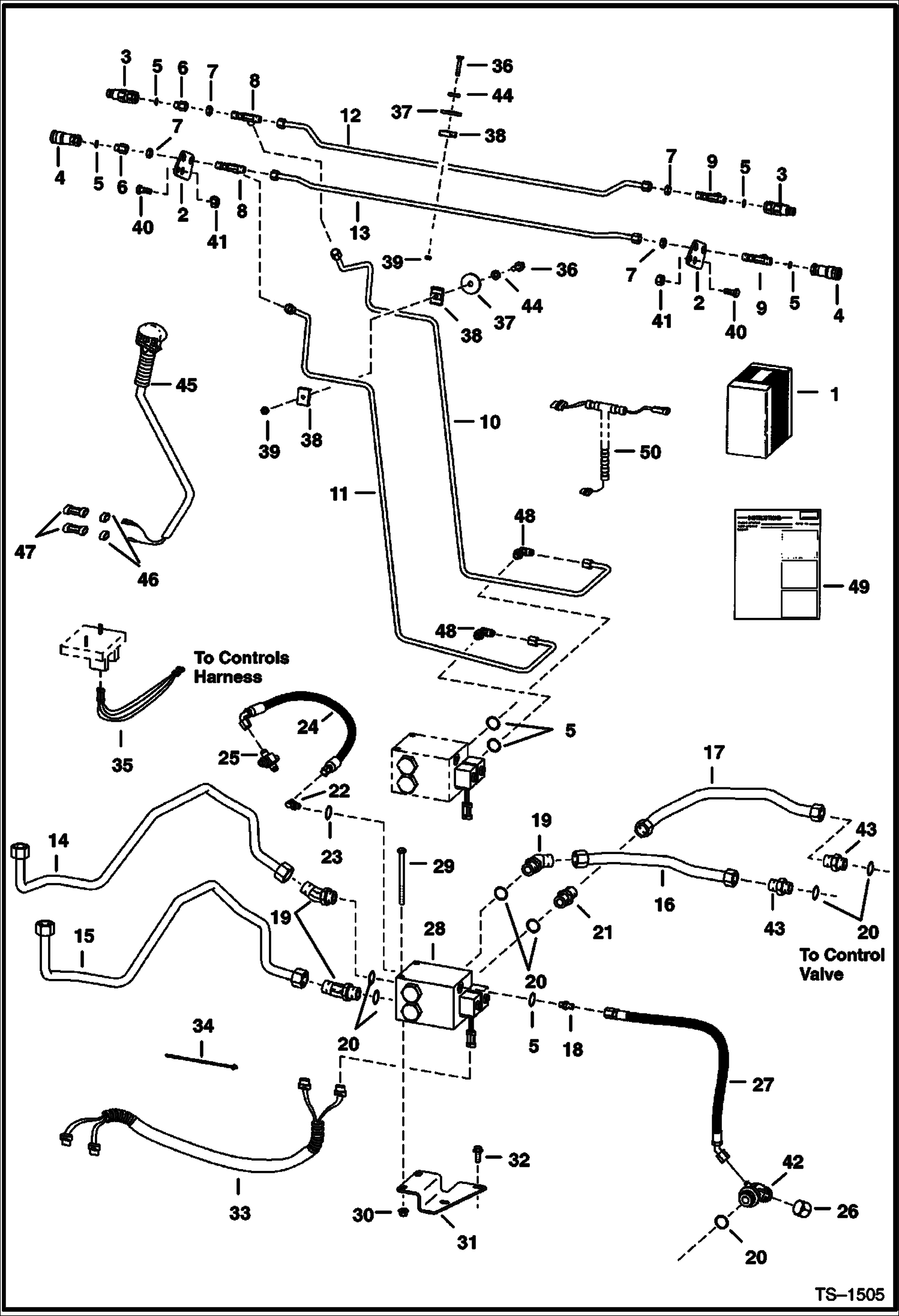

Запчасти Bobcat 700s REAR AUXILIARY (W/FF Couplers) (S/N 5096 40660 & Above, 5096 16542-34999) ACCESSORIES & OPTIONS

1

6713536

KIT Ref. 2 - 42 & 44 - 49 - Also Order Ref. 50 - Was SALES - D

2

6710351

MOUNT

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

79K6

O RING 10 flat boss face

5

99K6

O RING tapered boss face

6

6706633

ADAPTER W/Ref. 5

7

86F5

NUT

8

TEE NLA - tapered boss face - Was 91KN00005B - A

8

91K5

TEE flat boss face

8

97K6

O RING flat boss face

9

45K5

FITTING W/Ref. 5

10

6710354

TUBE

11

6710355

TUBE

12

6710352

TUBE

13

6710353

TUBE

14

6706747

TUBE

15

6710929

TUBE

16

6713490

TUBE

17

6713489

TUBE

18

15K5

FITTING W/Ref. 5 - flat boss face

18

ADAPTOR NLA - W/Ref. 5 - tapered boss face - Was 15KV00005B - A

18

97K6

O RING flared end

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - flat boss face

19

18K8

FTG W/Ref. 20 - flat boss face

19

18KB1212

FITTING, HYD ELBOW W/Ref. 20 - tapered boss face - Was 18KV00008B - A

19

97K12

O'RING flared end

20

79K12

O RING 10 flat boss face

20

99K12

O RING tapered boss face

21

15K8

FITTING W/Ref. 20 - flat boss face

21

ADAPTER NLA - W/Ref. 20 - tapered boss face - Was 15KN00008B - A

21

97K12

O'RING flared end

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 20 - flat boss face

22

17K3

ELBOW W/Ref. 5 - flat boss face

22

ELBOW NLA - W/Ref. 5 - tapered boss face - Was 17KV00003B - A

22

97K4

O'RING flared end

22

17KB0404

FTG HYD ELBOW 90 W/Ref. 5 - flat boss face

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE Replaces Ref. 24 on Ill. E2218

26

36K8

CAP

27

6713060

HOSE

27

6715330

HOSE Export

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6710870

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

17C428

BOLT

37

872229

WASHER

38

6578870

CLAMP

39

83D4

NUT 10

40

17C816

BOLT

41

61D8

NUT 5

42

6706144

CONNECTOR existing - cross - W/Ref. 20 - check boss face to determine correct replacement o-ring

42

6700599

ELBOW W/Ref. 20 - Export

43

ADAPTER See Illustration AUXILIARY HYDRAULICS/ D2399 EXISTING - W/Ref. 20

44

25E13

WASHER 5

45

6680414

HANDLE ASSY. Was 6705921 - A

45

6640690

PIN

45

6641176

SEAL

46

6641180

LOCK Use W/ 2-pin connector

46

6640700

LOCK 3-pin

47

6641179

CONNECTOR 2-pin

47

6640699

CONNECTOR 3-pin

48

17K5

ELBOW W/Ref. 5

49

6724419

INSTRUCTIONS

50

6710435

HARNESS
