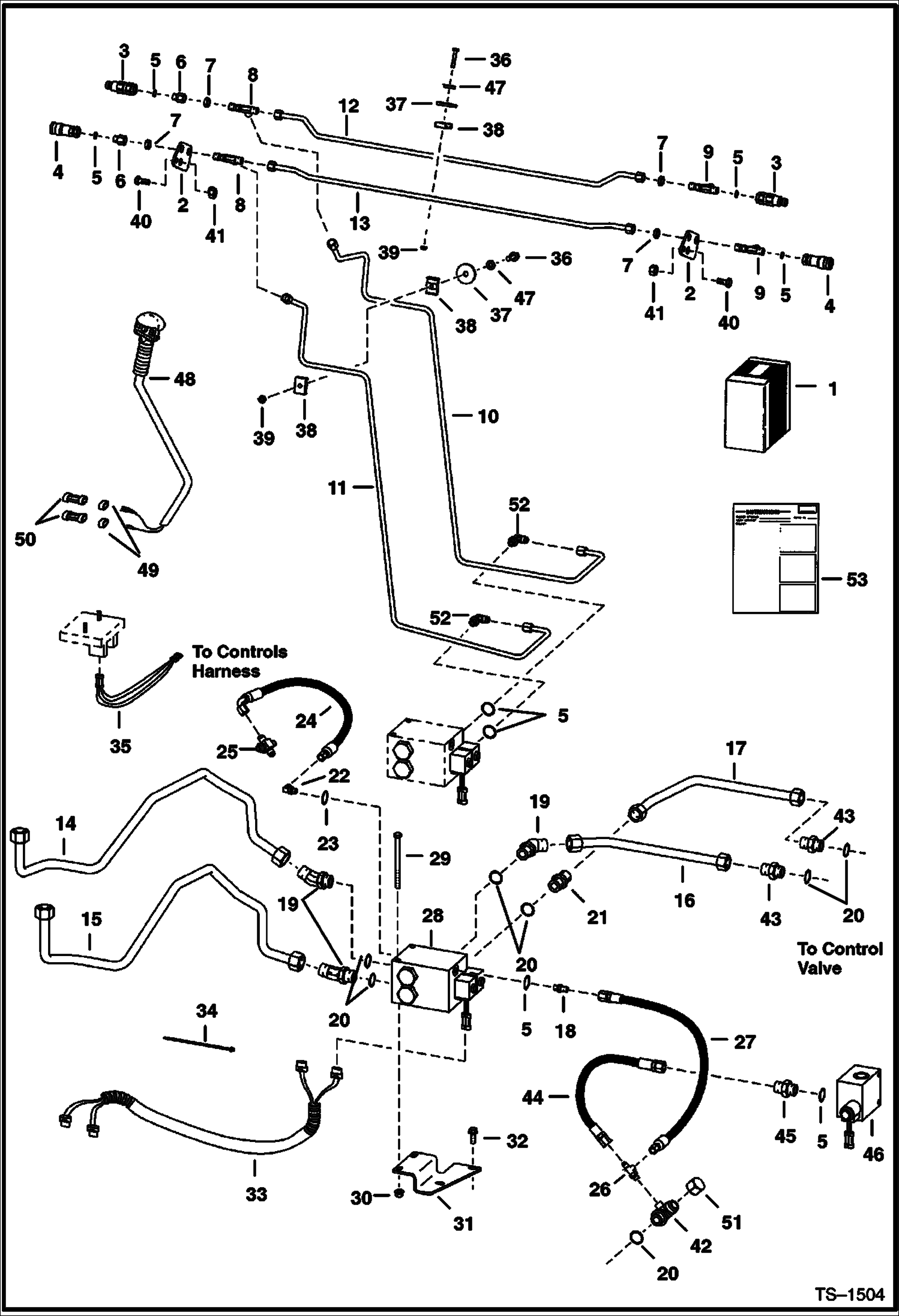

Запчасти Bobcat 700s REAR AUXILIARY (W/FF Couplers) (S/N 5096 39190-40659, 5096 16447-16541) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 42 & 47 - 53

2

6710351

MOUNT

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

79K6

O RING 10

6

6706633

ADAPTER W/Ref. 5

7

86F5

NUT

8

TEE NLA - tapered boss face - Was 6531597 - A

8

97K6

O RING flat boss face

9

45K5

FITTING W/Ref. 5

10

6710354

TUBE

11

6710355

TUBE

12

6710352

TUBE

13

6710353

TUBE

14

6706747

TUBE

15

6710929

TUBE

16

6706531

TUBE

17

6706530

TUBE

18

15K5

FITTING W/Ref. 5

19

18K8

FTG W/Ref. 20

20

79K12

O RING 10

21

15K8

FITTING W/Ref. 20

22

17K3

ELBOW W/Ref. 5

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE Replaces Ref. 24 on Ill. E2218

26

21K3

CONNECTOR W/Ref. 23

27

6710869

HOSE

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6710870

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

17C428

BOLT

37

872229

WASHER

38

6578870

CLAMP

39

83D4

NUT 10

40

17C816

BOLT

41

61D8

NUT 5

42

6707103

CONNECTOR See Illustration HYDROSTATIC CIRCUITRY/ E2218 CROSS - W/Ref. 20

43

ADAPTER See Illustration HYDROSTATIC CIRCUITRY/ E2218 EXISTING - W/Ref. 20

44

6706785

HOSE existing - rerouted from gear pump to Ref. 26

45

6665489

ADAPTER See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - W/INTERNAL FILTER

46

6664849

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - SOLENOID

47

25E13

WASHER 5

48

6680414

HANDLE ASSY. Was 6705921 - A

48

6640690

PIN

48

6641176

SEAL

49

6641180

LOCK Use W/ 2-pin connector

49

6640700

LOCK 3-pin

50

6641179

CONNECTOR 2-pin

50

6640699

CONNECTOR 3-pin

51

36K8

CAP

52

17K5

ELBOW W/Ref. 5

53

6724419

INSTRUCTIONS
