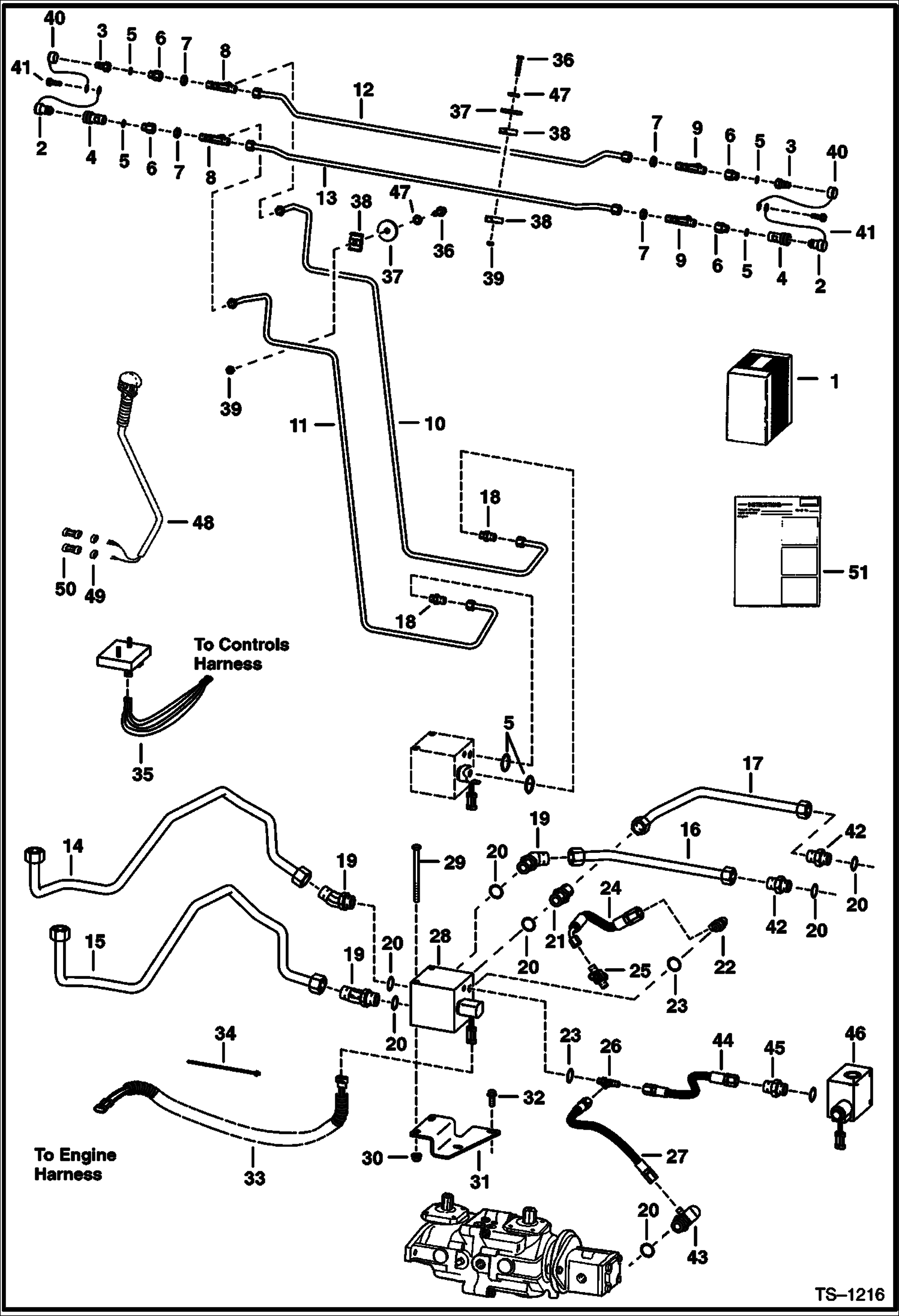

Запчасти Bobcat 700s REAR AUXILIARY (W/Poppet Couplers) (S/N 5096 35001-39189, 5096 16001-16446) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 40 & 51 -Was SALES - D

2

1519324

PLUG

3

6648969

QUICK COUPLER male

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

79K6

O RING 10

6

6706633

ADAPTER W/Ref. 5

7

86F5

NUT

8

TEE NLA - tapered boss face - Was 91KN00005B - A

8

91K5

TEE flat boss face

8

97K6

O RING

9

45K5

FITTING W/Ref. 5

10

6706533

TUBE

11

6706532

TUBE

12

6706549

TUBE

13

6706550

TUBE

14

6706747

TUBE

15

6710929

TUBE Was 6706746 - A

16

6706531

TUBE

17

6706530

TUBE

18

15K5

FITTING W/Ref. 5

19

18K8

FTG W/Ref. 20

20

79K12

O RING 10 flat boss face

20

99K12

O RING tapered boss face

21

15K8

FITTING W/Ref. 20

22

17K3

ELBOW W/Ref. 23

23

79K4

O RING 10

24

6706786

HOSE

25

6578209

TEE cross - replaces Ref. 24 on Ill. E2218

26

21K3

CONNECTOR W/Ref. 23

27

6707411

HOSE

28

VALVE See Illustration REAR AUXILIARY VALVE/ B12959

29

17C680

BOLT

30

83D6

NUT 5

31

6706548

MOUNT

32

84G3716

SCREW 5

33

6704203

HARNESS

34

6610510

TIE

35

6704114

HARNESS

36

17C428

BOLT Was 35C000424B - B

37

872229

WASHER

38

6578870

CLAMP

39

83D4

NUT 10

40

1513549

CAP

41

84G3712

BOLT 5 existing - relocate from transmission cover

42

ADAPTER See Illustration AUXILIARY HYDRAULICS/ D2398 existing - W/Ref. 20

43

6704693

TEE See Illustration HYDROSTATIC CIRCUITRY/ E2218 EXISTING - CROSS - W/Ref. 20 - check boss face to determine correct replacement o-ring

44

6706785

HOSE existing - rerouted from gear pump to Ref. 26

45

6665489

ADAPTER See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - W/INTERNAL FILTER

46

6664849

VALVE See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 EXISTING - SOLENOID

47

25E13

WASHER 5

48

6680414

HANDLE ASSY. Was 6705921 - A

48

6640690

PIN

48

6641176

SEAL

49

6641180

LOCK Use W/ 2-pin connector

49

6640700

LOCK 3-pin

50

6641179

CONNECTOR 2-pin

50

6640699

CONNECTOR 3-pin

51

6722839

INSTRUCTIONS
