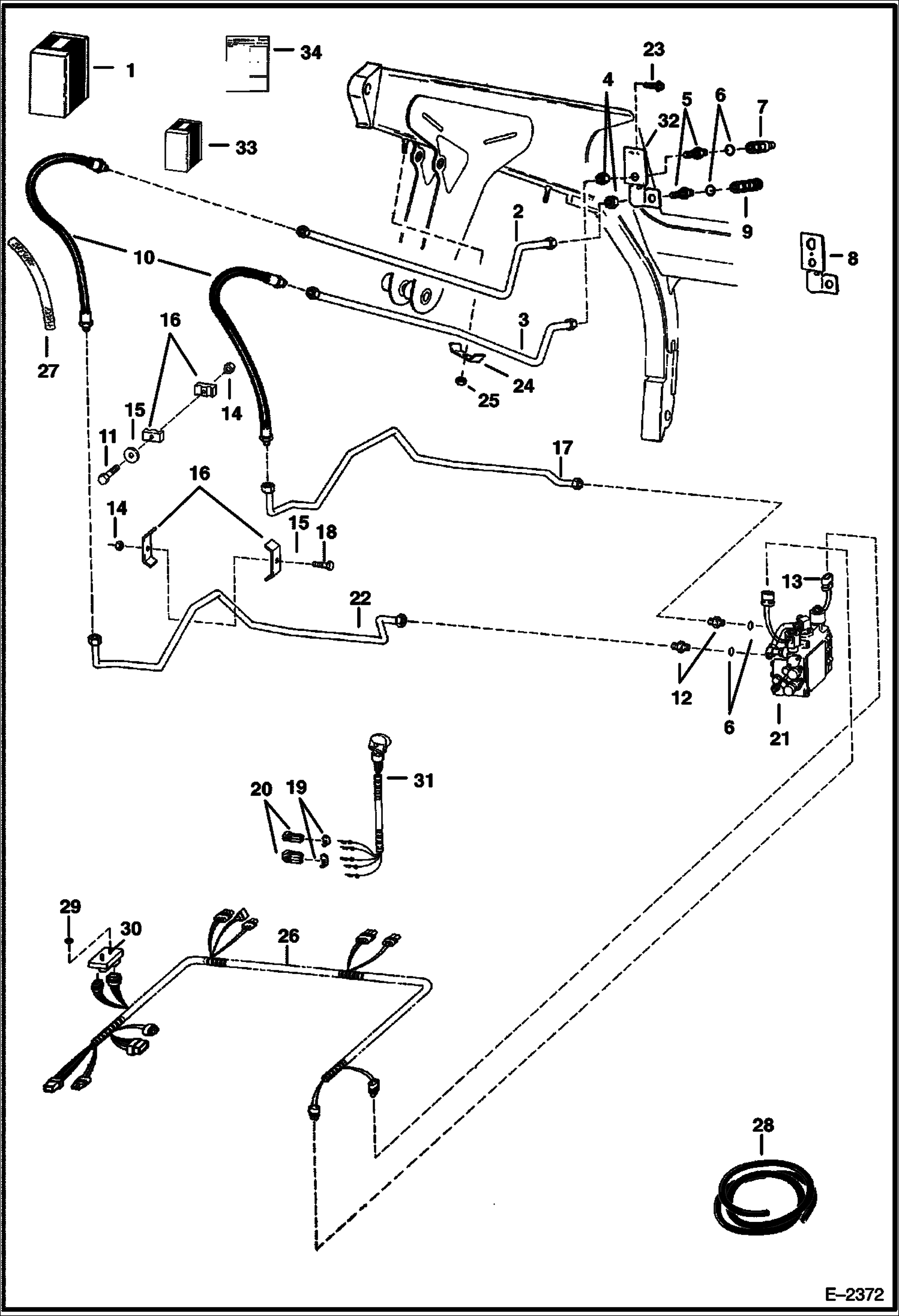

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/FF Couplers) (S/N 5096 40660 & Above, 5096 16542-34999) ACCESSORIES & OPTIONS

1

6713085

KIT front aux. - Ref. 2 - 11, 14, 15, 17 - 22 & 23 - 34 - includes pressure release components on Ill. B17257

2

6711745

TUBE

3

6711744

TUBE

4

86F7

LOCK NUT

5

6711625

FITTING W/Ref. 6 - flat boss face

5

CONNECTOR NLA - W/Ref. 6 - tapered boss face - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

MOUNT NLA - Order Ref. 32 - Was 6711672 - A

9

6667807

COUPLER Female

10

HOSE NLA - Use W/Ref. 27 - Was 6703814 - A

10

6715930

HOSE W/cover

11

84G3732

BOLT

12

ADAPTER See Illustration AUXILIARY HYDRAULICS/ D2399 W/Ref. 13 - NOT IN KIT

13

6717708

COIL, 14 VOLT 14 volt - Not in Kit - W/nut - Was 6665759 - A

13

6679961

NUT

14

83D5

NUT 5

15

872229

WASHER

16

6592506

CLAMP

17

6712961

TUBE

18

37C540

BOLT

19

6641180

LOCK Use W/ 2-pin connector

19

6640700

LOCK

20

6641179

CONNECTOR 2-pin

20

6640699

CONNECTOR

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219 NOT IN KIT

22

6712962

TUBE

23

84G3112

BOLT 5

24

6502203

CLAMP

25

85D6

NUT, 5

26

6719149

HARNESS Was 6712136 - A

27

COVER NLA - 30'' (762 mm) long - Order Ref. 28

28

6705749

SHIELD bulk - Sold Per Foot - 1.85'' (46,9 mm) I.D. poly corrugated

29

85D4

NUT 5

30

6671669

MODULE, CONTROL AUX Was 6669529 - C

31

6680414

HANDLE ASSY. Was 6705921 - A

31

6640690

PIN

31

6641176

SEAL

32

6713850

MOUNT

33

6718243

KIT See Illustration PRESSURE RELEASE KIT/ B17257 FRONT AUX. PRESSURE RELEASE

34

6724635

INSTRUCTIONS
