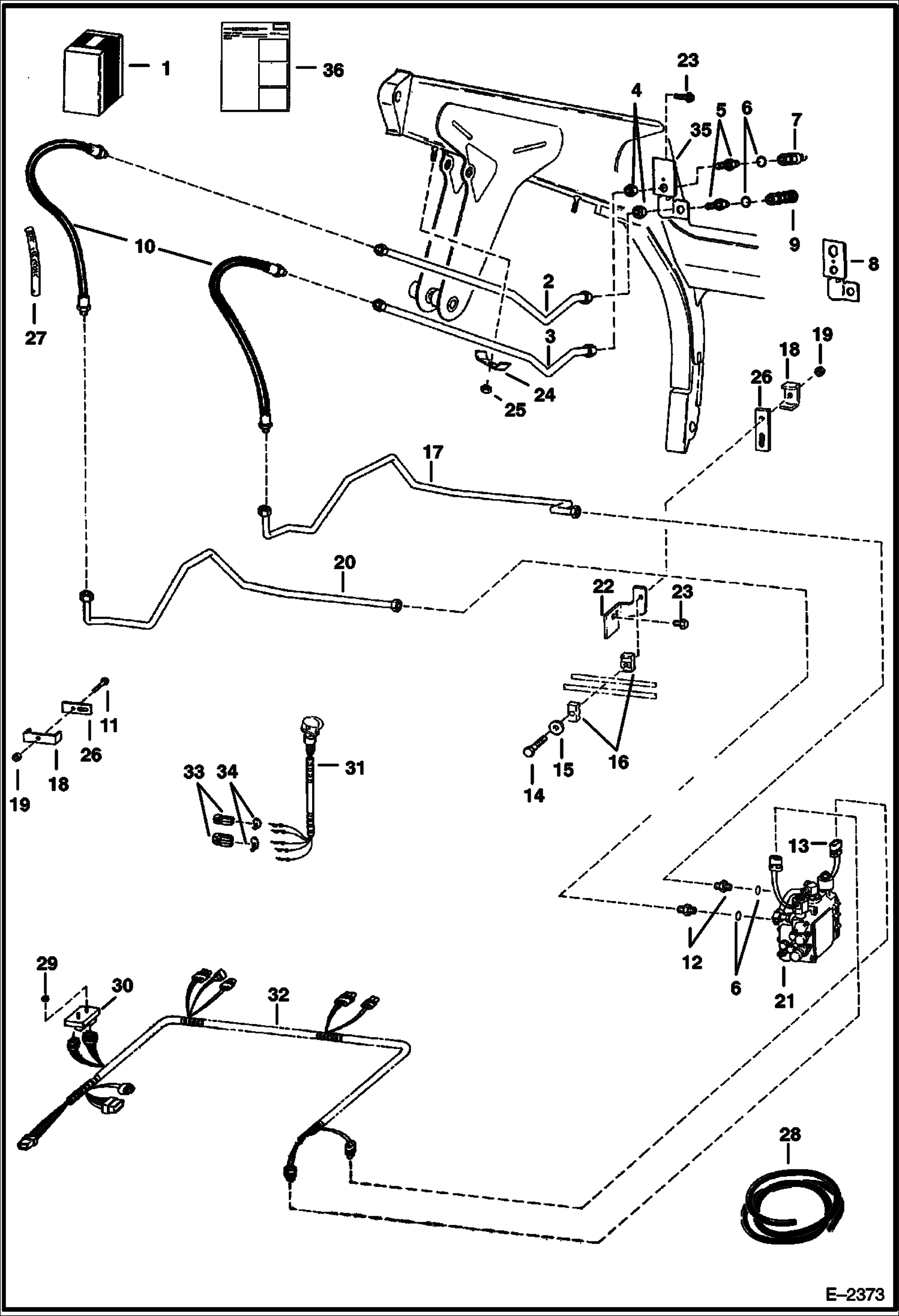

Запчасти Bobcat 700s FRONT AUXILIARY KIT (W/FF Couplers) (S/N 5096 39190-40052, 5096 16447-16511) ACCESSORIES & OPTIONS

1

KIT See Illustration FRONT AUXILIARY KIT/ E2374 NLA - FRONT AUX. - ORDER 6712389 KIT - WAS 6712110 - A

2

6711745

TUBE

3

6711744

TUBE

4

86F7

LOCK NUT

5

6711625

FITTING W/Ref. 6

6

79K12

O RING 10

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

MOUNT NLA - Order Ref. 35 - Was 6711672 - A

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

HOSE NLA - Use W/Ref. 27 - Was 6703814 - A

10

6715930

HOSE W/cover

11

17C536

BOLT

12

ADAPTER See Illustration AUXILIARY HYDRAULICS/ D2398 W/Ref. 6 - NOT IN KIT

13

6717708

COIL, 14 VOLT 14 volt - Not in Kit - Was 6665759 - A

14

17C548

BOLT

15

872229

WASHER Not in Kit

16

6701892

CLAMP Not in Kit

17

6703922

TUBE

18

6568476

CLAMP

19

85D5

NUT 5

20

6703923

TUBE

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219 NOT IN KIT

22

6704619

MOUNT Not in Kit

23

84G3112

BOLT 5

24

6502203

CLAMP

25

85D6

NUT, 5

26

6702548

PAD

27

COVER NLA - 30'' (762 mm) long - Order Ref. 28

28

6705749

SHIELD bulk - Sold Per Foot - 1.85'' (46,9 mm) I.D. poly corrugated

29

85D4

NUT 5

30

6671669

MODULE, CONTROL AUX Was 6669529 - C

31

6680414

HANDLE ASSY. Was 6705921 - A

31

6640690

PIN

31

6641176

SEAL

32

6710365

HARNESS

33

6641179

CONNECTOR 2-pin

33

6640699

CONNECTOR

34

6641180

LOCK Use W/ 2-pin connector

34

6640700

LOCK

35

6713850

MOUNT

36

6724523

INSTRUCTIONS
