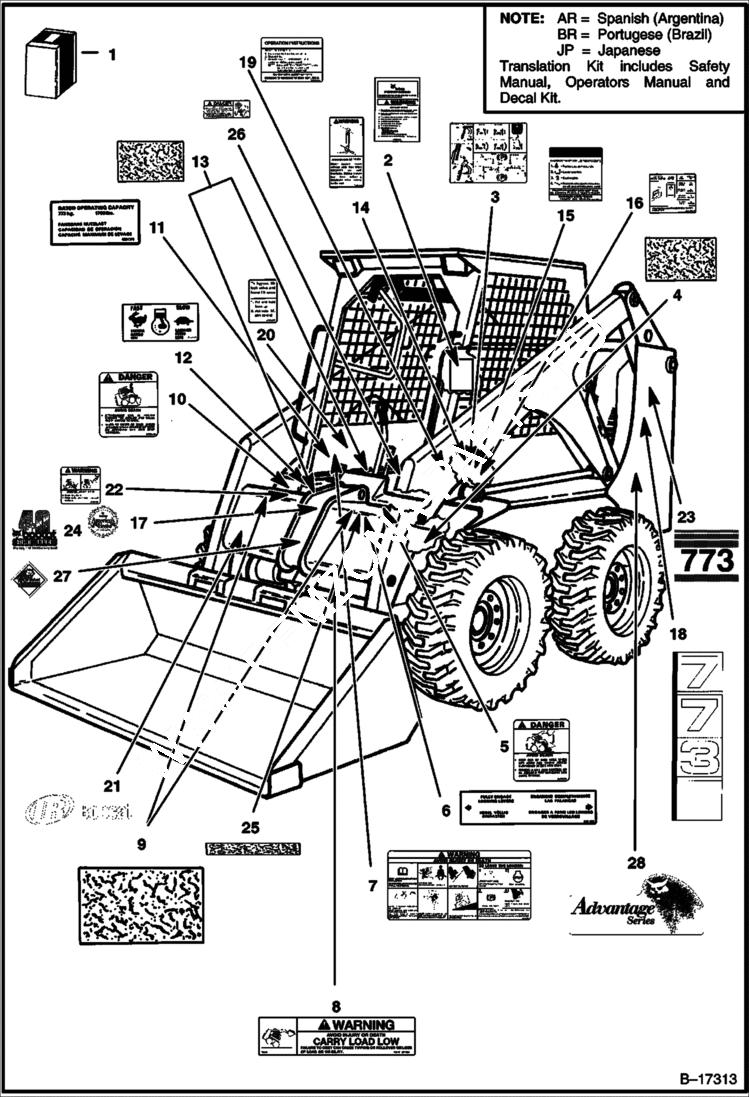

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6900504

KIT decal

1

6716218AR

KIT decal - SEE NOTE

1

6716218BR

KIT decal - SEE NOTE

1

6716218JP

KIT decal - SEE NOTE

1

6716219AR

KIT translation - SEE NOTE

1

6716219BR

KIT translation - SEE NOTE

2

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE Was 6708021 - A

2

6708154ES

KIT handbook - W/wire rope - Spanish

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

3

6703723

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6579639

DECAL danger

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL warning

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6579509

DECAL danger

11

6561376

DECAL capacity

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6707523

SAFETY TREAD LH - 6.8'' x 8.75'' (172,7 mm x 222,3 mm)

13

6707524

SAFETY TREAD RH - 6.8'' x 8.75'' (172,7 mm x 222,3 mm)

14

6705720

DECAL lock shield

15

6707134

DECAL instruction for LCS

16

6708105

DECAL pre-heat

17

6705088

DECAL America's Best

18

6708200

DECAL model no. L.H.

19

6707255

DECAL seat & seat bar operating - W/seat sensor - Was NLA - D

19

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

19

6717639

DECAL seat bar operating - W/O seat sensor - AHC

19

6717639

DECAL seat & seat bar operating - AHC - Was 6717043 - A

20

6706809

DECAL lift lock

20

6711840

DECAL

21

DECAL NLA - Ingersoll Rand - not in kit - Was 6727310 - A

22

6710358

DECAL warning

23

6714535

DECAL model no.

24

6715912

DECAL 40th anniversary

25

6710746

SAFETY TREAD 1.25'' x 15''(31,8 mm x 381 mm)

26

6717343

DECAL, DANGER

27

6718271

DECAL advantage series -L.H.- Not in Kit

28

6718275

DECAL Bobcat advantage
