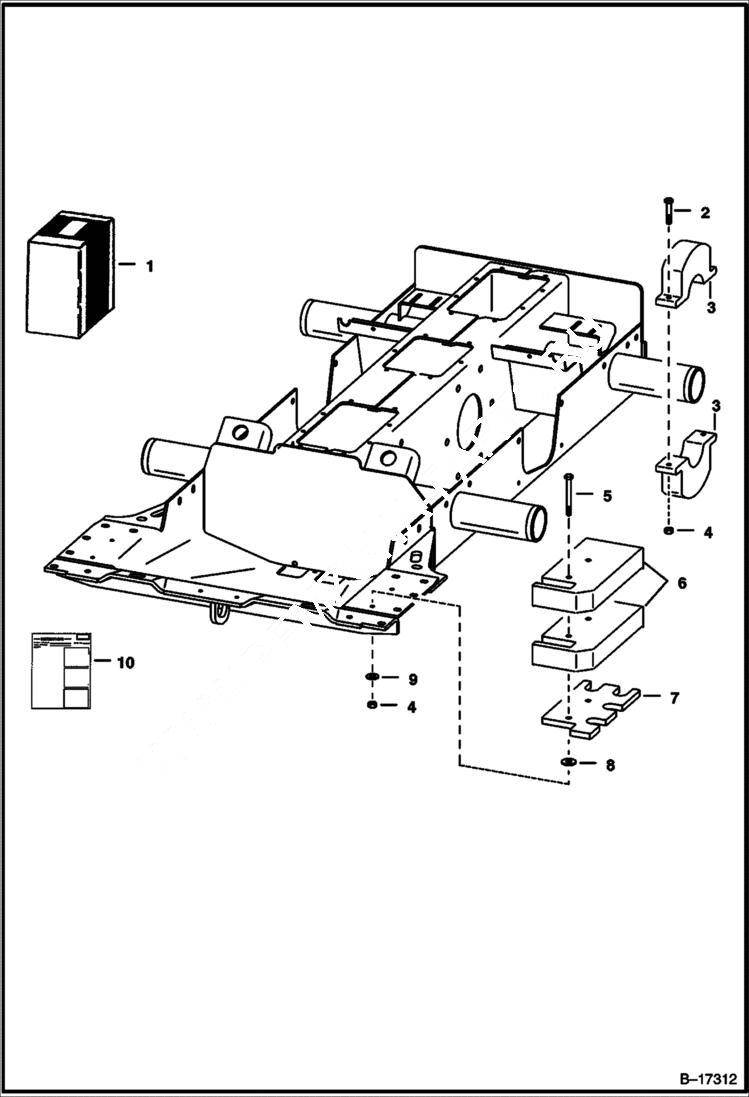

Запчасти Bobcat 700s COUNTERWEIGHT KIT (1400 lb.) ACCESSORIES & OPTIONS

1

KIT NLA - counterweight - Was SALES - D

2

17C640

BOLT 5

3

WEIGHT NLA - front axle - 19.1 lbs (8,7 kg)- 2.25''(57,2 mm) wide - Was 6702453 - A

3

6714361

COUNTERWEIGHT, AXLE front - 71,6 kg (38.7 lb) - 114,3 mm (4.5'') wide

4

61D6

NUT 5

5

17C6104

BOLT

6

6702454

WEIGHT rear - 55.1 lbs. (25,0 kg)

7

6702455

WEIGHT rear - 11.2 lbs (5,1 kg)

8

6701097

WASHER

9

27E6

WASHER 5

10

6720470

INSTRUCTIONS
