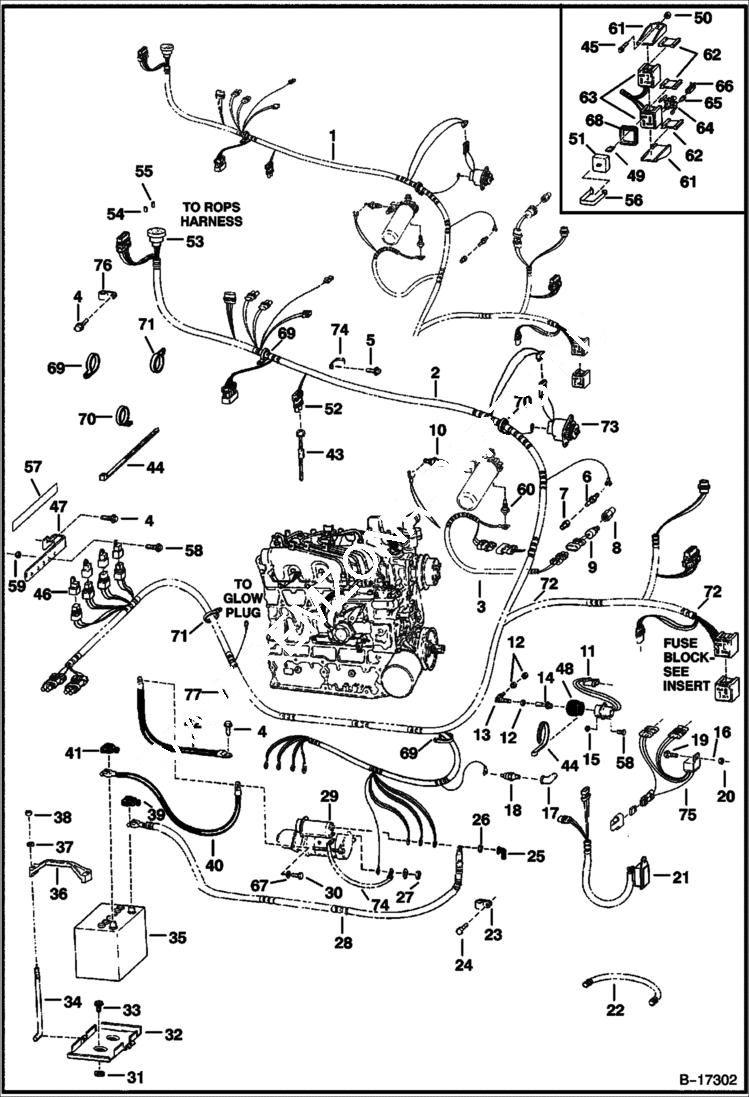

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

HARNESS NLA - engine - W/Ref. 53-55 - W/2 pin connector for rear wiper - Order Ref. 2 & 3 - If Loader is equipped W/rear wiper - Also Order 6712260 Harness - Was 6709894 - A

1

HARNESS NLA - engine - W/Ref. 53-55 & 68-71 - W/10 pin connector for rear wiper - Order Ref. 2 & 3 - Was 6710486 - A

1

6610510

TIE black

2

6715892

HARNESS, ENG BASE engine - W/Ref. 53-55, 68-72 & 77

3

6715880

HARNESS filter

4

84G3712

BOLT 5

5

35C608

BOLT

6

6658818

SENDER eng temp - threaded connector

7

19F4

BUSHING sender

8

6563922

SNUBBER W/Filter

8

6563920

FILTER

9

6670705

SWITCH, PRESS OIL HYD hyd. chg. press. - w/3 pin molded connector - Was 6665372 - A

10

6632633

SWITCH hyd temp

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

25E13

WASHER 5

17

6707040

ELBOW

18

6631010

SWITCH, PRESS OIL ENG eng. oil press.

19

35C416

BOLT Was 35C000516B - B

20

83D4

NUT 10 Was 83D000005B - B

21

TIMER NLA - solenoid - Order Ref. 75 - Was 6665522 - A

22

6563505

CONDUIT bulk - Sold Per Foot

23

30H48

CLIP

24

6CM1220

BOLT Was 1CM01220B - B

25

6560172

COVER

26

4DM10

NUT

27

4DM5

NUT

28

6564991

CABLE pos. - W/Ref. 22

29

STARTER See Illustration STARTER/ D2119

30

35C620

BOLT 5

31

6555455

WASHER

32

6712536

PAN Was 6577809 - A

33

84G3716

SCREW 5

34

6576280

BOLT

35

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

35

6630153

BATTERY CAP

36

6569203

CLAMP

37

25E15

WASHER

38

59D5

NUT 5

39

2356058

BOOT

40

6562905

CABLE ground

41

6599652

BOOT

42

6565170

CABLE neg

43

SENDER NLA - fuel - W/ O-ring - Order 6680438 Sender - Was 6669642 - A

43

79K14

O RING 10 Was 25K040102B - B

43

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

43

6717579

GASKET

44

6610510

TIE

45

45G1212

BOLT

46

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

47

6707649

MOUNT

48

6664286

BOOT Also Order Ref. 44

49

6707620

FUSE, 10A MINI 5 Was 6706720 - D

49

6707621

FUSE, 15A MINI 5 Was 6707621 - D

49

6707622

FUSE, 20A MINI 5 20 amp - Was 6706722 - D

49

6707623

FUSE, 25A MINI 5 Was 6706723 - D

49

6674099

BREAKER, 25A

50

50D12

NUT

51

6665358

COVER , FUSE

52

6646383

CONNECTOR fuel sender

52

6632946

TERMINAL female

53

6664585

CONNECTOR Also Order Ref. 54 (20) & 55 (4) - Was 6665682 - A

54

6664828

SOCKET

55

6664041

SOCKET

56

6708437

CLIP spring

57

6707787

DECAL relay

58

17C410

BOLT 10

59

85D4

NUT 5

60

6632053

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

61

6665369

MOUNT fuse

62

6665411

WEDGE red

63

6665356

BLOCK fuse - W/Ref. 68

64

6665357

LOCK yellow

65

6650107

SEAL

66

PIN NLA - female - Was 6648311 - A

66

6668719

PIN female - for 14 gauge wire

66

6668720

PIN female - Use W/ 14 ga wire

67

6E6

WASHER

68

6671528

SEAL green square - Was 6671156 - B,D

69

6669722

CLAMP

70

6669723

CLAMP

71

6669724

CLAMP

72

6717814

TIE

73

ALTERNATOR See Illustration ALTERNATOR/ C3312

74

6713821

CABLE See Illustration STARTER KIT/ D2393

75

6669415

TIMER, SOLENOID solenoid

75

6702444

FUSE 25A 5 25 amp Was 6670808 - A

76

30H60

CLIP

77

3675725

DIODE
