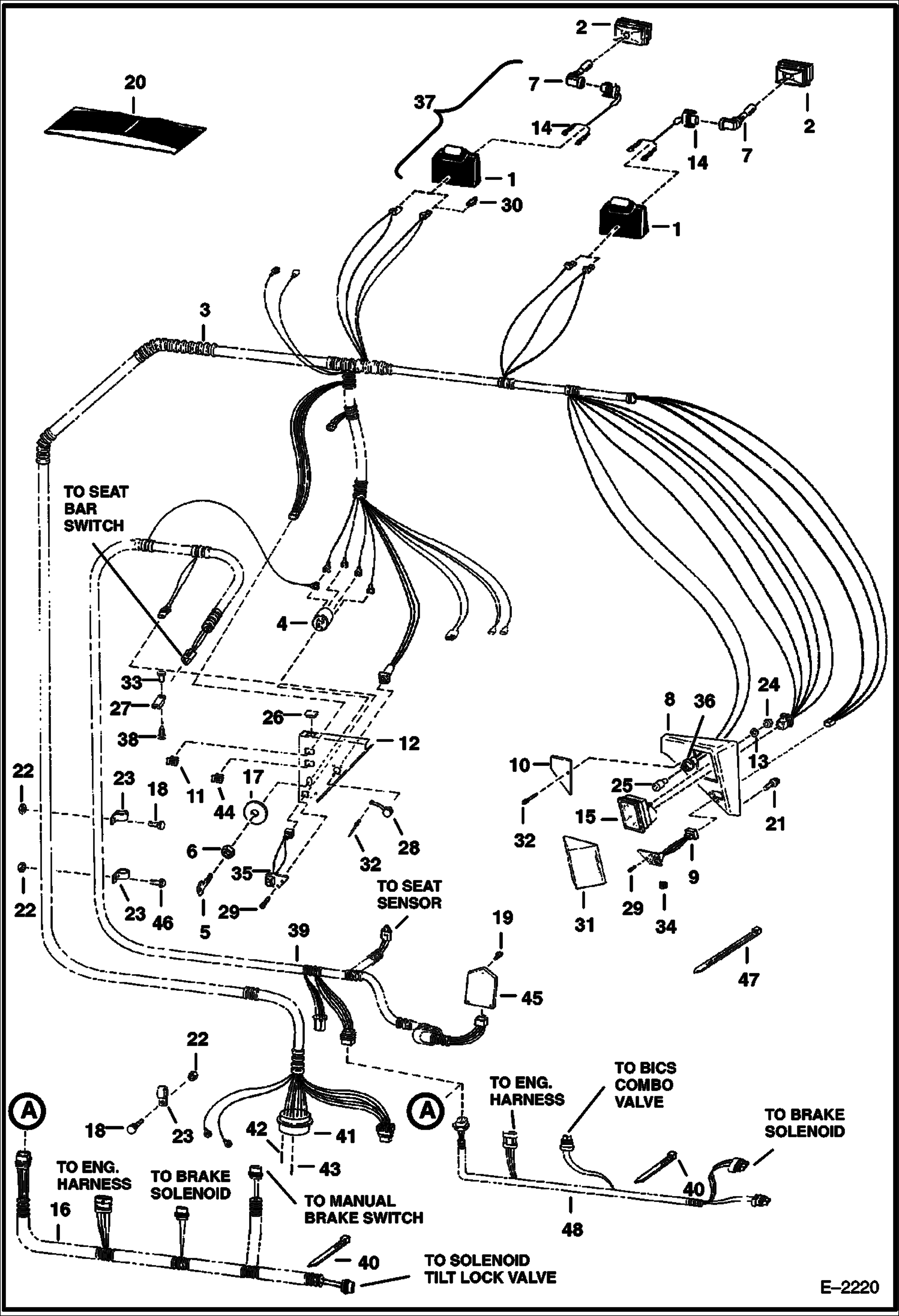

Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING bulb

3

6707671

HARNESS

3

6711774

HARNESS

3

6710483

HARNESS export

4

SWITCH See BTI289 NLA - ignition - Order Ref. 20 - Was 6519592 - A

4

6665606

SWITCH ignition - W/Ref. 5 & 6

5

6512809

KEY ign. - For Ref. 4 (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

6

6674202

NUT For Ref. 4 (6665606 Switch)

7

6667934

BULB Was 6650111 - A

8

6702660

PANEL R.H.

9

6667903

SWITCH, AUX aux. controls module - W/Ref. 34 - W/4 spade conn. - Was 6700603 - A

9

6667904

SWITCH aux. controls module - W/Ref. 34 - W/5 pin connector

10

6702678

PLATE service codes

11

6665410

SWITCH light

12

6708427

PANEL L.H. - Was 6707660 - A

12

PANEL See Illustration EUROPEAN ACCESSORIES/ TS1447 NLA - LH - Europe - Was 6708428 - A

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY LCD monitor - mounted W/nuts - NLA - Order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

NLA - LCD monitor mounted W/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6706876

HARNESS See Ref. 48

16

6710313

HARNESS See Ref. 48

17

6707664

PLATE ignition key - For Ref. 4 (NLA/6519592 Switch)

17

6709027

PLATE For Ref. 4 (6665606 Switch)

18

10C412

BOLT

19

91G412

SCREW cross recess pan head

19

25G412

CAPSCRW10 hex socket button head

20

6724282

SWITCH KIT Ref. 4, 5 & 17

21

6702642

SCREW

22

61D4

NUT 5

23

30H54

CLIP

24

12D8

NUT

25

6578357

BULB

26

6707674

PLUG round - plugs 1.28'' (32,5 mm) dia. hole in top of cab

27

6665000

CLIP

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET

33

6665321

RIVET plastic male

34

6660594

BUTTON on/off

35

6667905

SWITCH trac. override - Was 6706995 - A

35

SWITCH NLA - traction/seat sensor override - Order 6674220 Switch - Was 6673005 - A

35

6674220

SWITCH, OVERRIDE TRACTION push to operate

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT Ref. 1, 2, 7 & 14

38

6665322

RIVET plastic female

39

6706828

HARNESS

39

6710312

HARNESS

39

6712134

HARNESS, CONTROLLER

40

6665527

TIE never modify

41

6664584

CONNECTOR Also Order Ref. 42 & 43 - Was 6665683 - A

42

6664827

PIN

43

6664040

PIN

44

6668814

SWITCH bucket position on-off

45

CONTROLLER NLA - Order 6717702 Mechanical Hand Control Push to Operate Kit on Ill. B-17268 or 6717700 Foot Pedals Push to Operate Kit on Ill. 17268A - Was 6668767 - A

45

CONTROLLER NLA - Order 6717702 Mechanical Hand Control Push to Operate Kit on Ill. B-17268 or 6717700 Foot Pedals Push to Operate Kit on Ill. B-17268A - Was 6673002 - A

45

6680411

CONTROLLER foot pedals - Was 6674222 - A

45

6680445

CONTROLER AHC - Was 6674224 - A

46

35C410

BOLT 5

47

6610510

TIE

48

6712523

HARNESS for BICS combo control valve

48

6712523

HARNESS

48

6712523

HARNESS
