Запчасти Bobcat 700s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

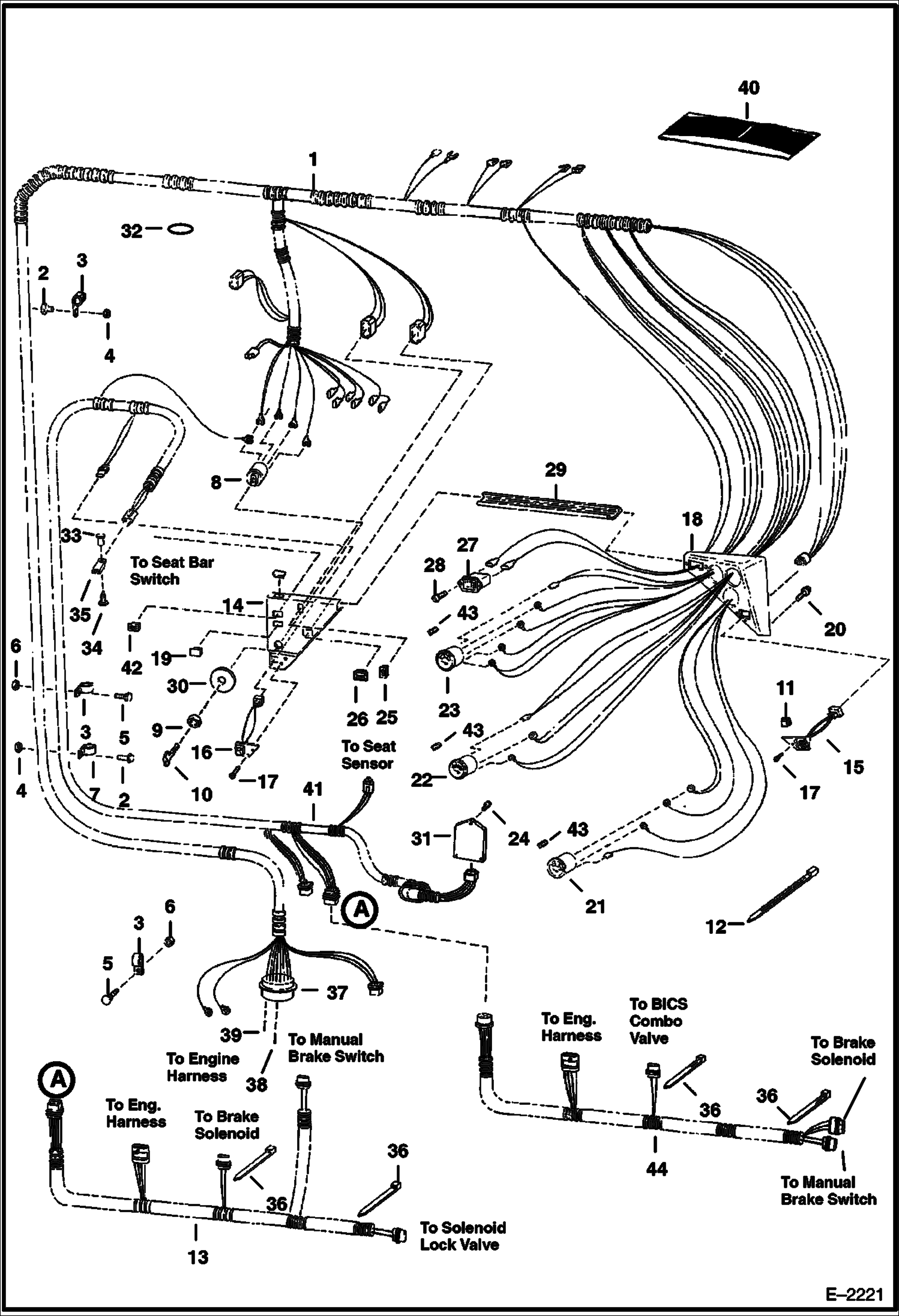

Схема запчастей Bobcat 700s - CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6707665

HARNESS

1

6711767

HARNESS, CAB BASE

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

SWITCH See BTI289 NLA - ignition - Order Ref. 40 - Was 6519592 - A

8

6665606

SWITCH ignition - W/Ref. 9 & 10

9

6598721

NUT For Ref. 8 (NLA/6519592 Switch)

9

6674202

NUT For Ref. 8 (6665606 Switch)

10

6512809

KEY For Ref. 8 (NLA/6519592 Switch)

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6706876

HARNESS See Ref. 44

13

6710313

HARNESS See Ref. 44

14

6708425

PANEL L.H. - Was 6707658 - A

14

6708426

PANEL See Illustration EUROPEAN ACCESSORIES/ TS1447 L.H. - EUROPE

14

6712152

PANEL L.H. - for side console

15

6667903

SWITCH, AUX aux. controls module - W/Ref. 11 - W/4 spade conn. - Was 6700603 - A

15

6667904

SWITCH aux. controls module - W/Ref. 11 - W/5 pin connector

16

6667905

SWITCH trac. override - Was 6706995 - A

16

SWITCH NLA - traction/seat sensor override - Order 6674220 Switch - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push to operate

17

6669225

BOLT Was 58G000408B - A

18

6706896

PANEL R.H.

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

21

6669663

GAUGE eng temp - W/O clamp

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

91G412

SCREW cross recess pan head

24

25G412

CAPSCRW10 hex socket button head

25

6665318

SWITCH glow plug

25

6668927

SWITCH glow plug

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6707664

PLATE brake start - For Ref. 8 (NLA/6519592 Switch)

30

6709027

PLATE brake start - For Ref. 8 (6665606 Switch)

31

CONTROLLER NLA - Order 6717702 Mechanical Hand Control Push to Operate Kit on Ill. B-17268 or 6717700 Foot Pedals Push to Operate Kit on Ill. B-17268A - Was 6668767 - A

31

CONTROLLER NLA - Order 6717702 Mechanical Hand Control Push to Operate Kit on Ill. B-17268 or 6717700 Foot Pedals Push to Operate Kit on Ill. B-17268A - Was 6673002 - A

31

6680411

CONTROLLER foot pedals - Was 6674222 - A

31

6680445

CONTROLER AHC - Was 6674224 - A

32

6707674

PLUG round - plugs 1.28''(32,5 mm) dia. hole in top of cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6724282

SWITCH KIT Ref. 8, 10 & 30

41

6706828

HARNESS

41

6710312

HARNESS

41

6712134

HARNESS, CONTROLLER

42

6668814

SWITCH bucket position on-off

43

6599696

SOCKET & BULB assy.

43

895771

#161 BULB

44

6712523

HARNESS for BICS combo control valve
