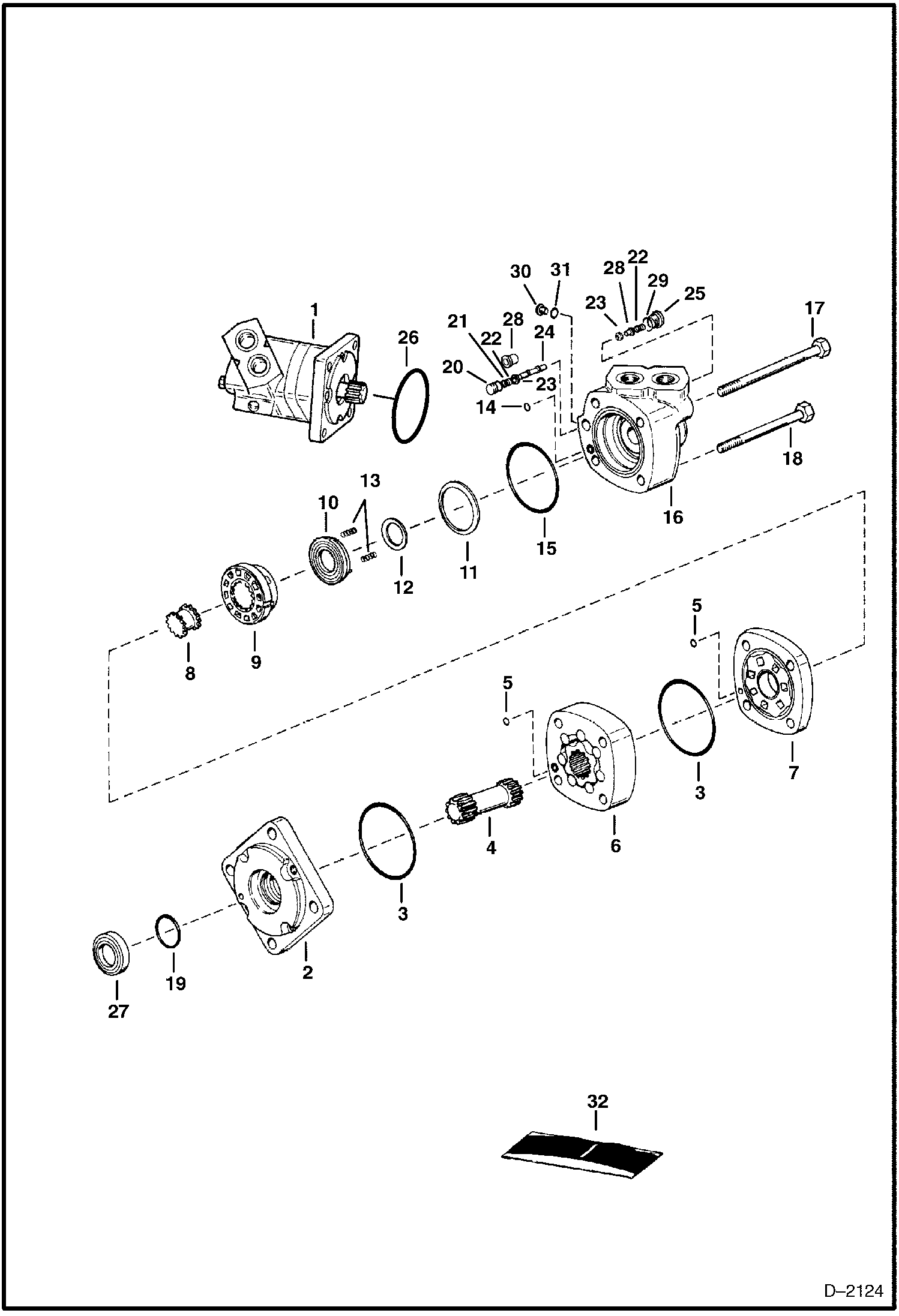

Запчасти Bobcat 700s HYDROSTATIC MOTOR (S/N 5122 18843 & Below, 5124 40645 & Below, 5126 12191 & Below) HYDROSTATIC SYSTEM

1

6722426

MOTOR KIT Ref. 2-28

2

6513528

FLANGE mounting

3

6513524

O'RING

4

6659489

SHAFT

5

6632272

SEAL

6

6659491

GEROLER Was 6661980 - A

7

6661809

PLATE valve

8

6513518

DRIVE valve

9

6513519

VALVE

10

6658757

RING balance assy.

11

6513520

SEAL

12

6513529

SEAL face - Inner

13

6190121

SPRING

14

25K20010

O RING 10

15

58K44

O RING 10

16

6665118

HOUSING valve - Was 6661979 - A

17

6659488

BOLT

18

6659487

BOLT

19

6513799

SEAL

20

6513539

PLUG

21

6513800

O-RING

22

6513533

SPRING

23

6513532

POPPET

24

6513510

PISTON

25

6632271

PLUG W/Ref. 29

26

25K30508

O-RING, 10 See Illustration DRIVE TRAIN/ B17290 NOT PART OF SEAL KIT

27

6513681

BEARING bronze

28

6561218

SHUTTLE

29

79K6

O RING 10

30

90KV2

PLUG W/Ref. 31 - Was 6632270 - A

31

79K3

O RING 10 flat boss face

31

95K3

O'RING tapered boss face

32

6660256

KIT, SEAL Ref. 3, 5, 11, 12, 14, 15, 21 & 26
