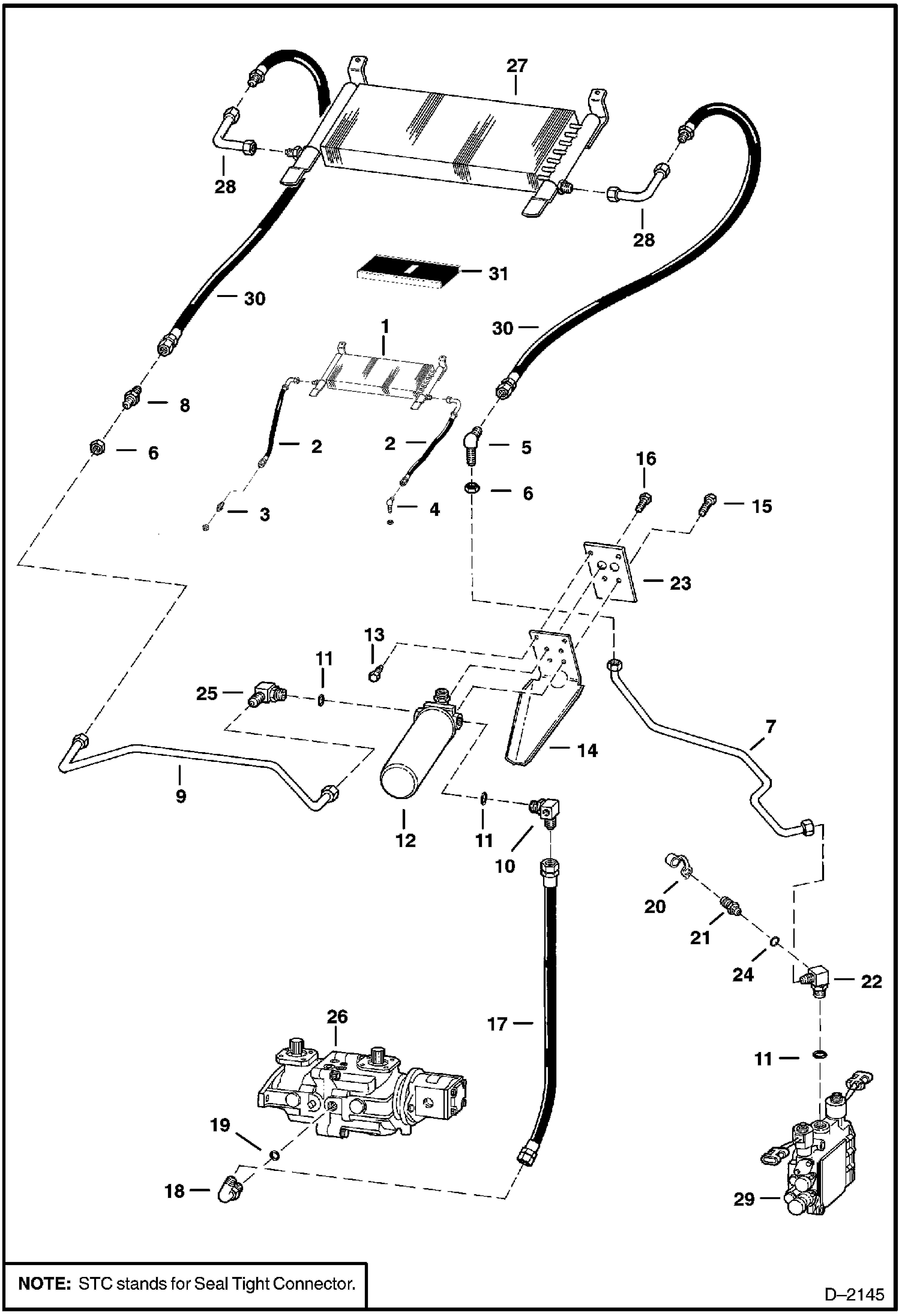

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6674150

EXCHANGER, OIL COOLER STC - SEE NOTE

2

6673828

HOSE, HYD ASSY STC - SEE NOTE

3

6670830

ADAPTER STC - SEE NOTE

3

6690949

O-RING

4

6670831

ELBOW STC - SEE NOTE

4

6690949

O-RING

5

88F8

FITTING W/O O-rings

5

ELBOW NLA - W/ O-rings - Was 88FN00008B - A

5

97K12

O'RING flared end

6

86F8

NUT 5

7

6708215

TUBE

7

6708215

TUBE

7

6708215

TUBE

7

6712711

TUBE

7

6712711

TUBE

7

6712711

TUBE

8

45K8

ADAPTOR

9

6704155

TUBE

10

6704164

ELBOW W/Ref. 11 - flat boss face

10

6715655

ELBOW W/Ref. 11 - tapered boss face

10

97K12

O'RING flared end

11

79K12

O RING 10 flat boss face

11

99K12

O RING tapered boss face

12

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ NA1844 See Illustration HYDROSTATIC OIL FILTER/ C2818

12

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

13

84G3712

BOLT 5

14

6727345

MOUNT filter drain - Was 6704342 - A

15

17C616

BOLT 5

16

17C610

BOLT

17

6704159

HOSE

18

ELBOW NLA - W/Ref. 19 - flat boss face - Was 1300294B - A

18

ELBOW NLA - W/Ref. 19 - flat boss face - Was 6714901

18

17KB1210

FITTING, HYD ELBOW W/Ref. 19 - tapered boss face

19

79K10

O RING 10

20

6630367

CAP

21

6630168

COUPLER diagnostic -W/Ref. 24 - flat boss face

21

90KV5

PLUG tapered boss face

22

6715653

TEE W/Ref. 11 - flat boss face - Was 6704158 - A

22

6715653

TEE W/Ref. 11 - check boss face to determine correct replacement o-ring

22

97K12

O'RING flared end

23

6704341

MOUNT

24

79K6

O RING 10

24

99K6

O RING tapered boss face

25

6704696

ELBOW W/Ref. 11 - W/O B.O.S.S.Option - flat boss face

25

6700599

ELBOW W/Ref. 11 - W/ B.O.S.S. Option - flat boss face

25

6715714

ELBOW W/Ref. 11 - tapered boss face

25

97K12

O'RING flared end

26

PUMP See Illustration HYDROSTATIC PUMP/ D1979

27

6661238

OIL COOLER

28

6703012

TUBE

29

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219

30

6654205

HOSE

31

6674798

REPAIR KIT For Ref. 1, 3 & 4 - Consists of Retaining Ring (1), Back-up Ring (1) & O-Ring (1)
