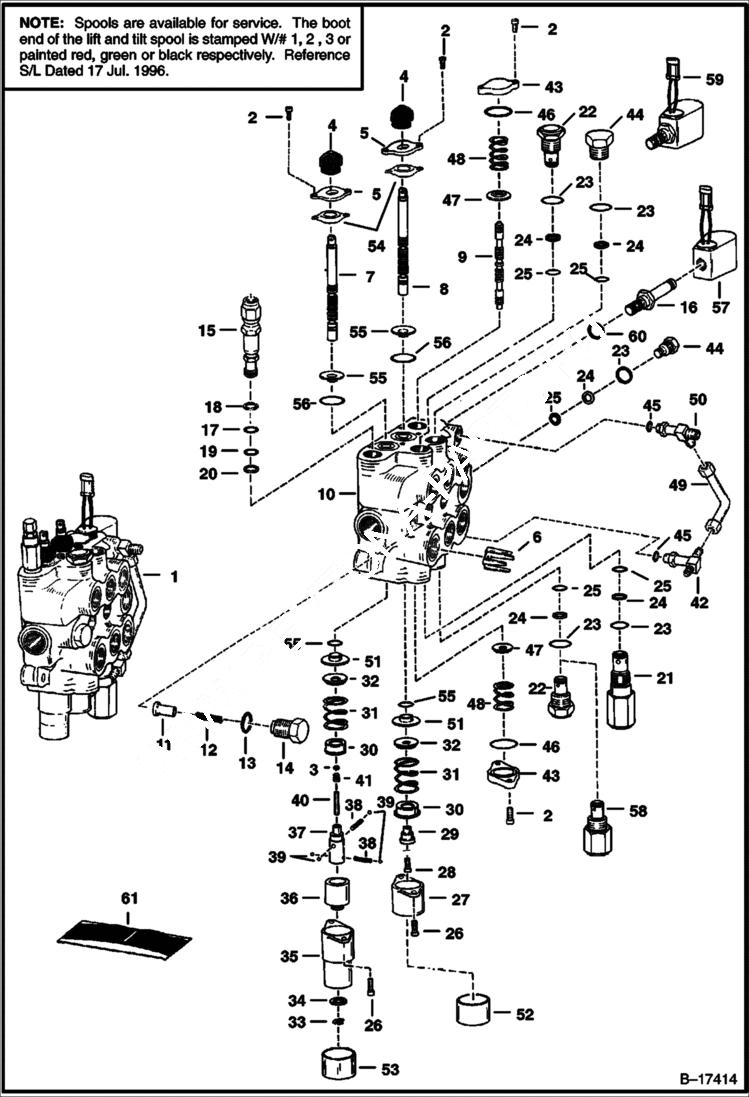

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (Hydraulic Control Valve) (S/N 5122 20297 & Below, 5126 12257 & Below) HIGH FLOW HYDRAULICS

1

6597307

VALVE Ref. 2 - 56 - W/short spools - S/N 5122 20298 & Above and 5126 12258 & Above with high flow hydraulics are built W/BICS combo valves, See Ill. B17294

2

29G416

BOLT

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER flat

6

6534630

RESTRICTOR .134/.141

7

6666588

SPOOL lift - #1 or red - SEE NOTE

7

6666589

SPOOL lift - #2 or green - SEE NOTE

7

6666590

SPOOL lift - #3 or black - SEE NOTE

8

6666591

SPOOL tilt - #1 or red - SEE NOTE

8

6666592

SPOOL tilt - #2 or green - SEE NOTE

8

6666593

SPOOL tilt - #3 or black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - W/Ref. 17 - 20 - 2950-3050 PSI - press. preset at factory - Was 6676197 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6665758

VALVE W/Ref. 60

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6599161

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - Was 6665533 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10

26

29G412

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - C

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6596807

PLUG plastic - 0.46'' long

42

6597495

TEE W/Ref. 45 - Was 6588188 - B

43

6588981

END CAP

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10

46

58K124

O RING 10

47

6537096

WASHER

48

6588197

SPRING

49

6577690

TUBE

50

6800456

ELBOW W/Ref. 45 - Was 6558510 - B

51

6595663

BUSHING

52

6662848

CAP

53

6660644

CAP

54

6589565

BUSHING

55

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

56

1K127

O-RING 10 Was 93K127 - A

57

6717708

COIL, 14 VOLT 14 volt - W/nut - Was 6665759 - A

57

6679961

NUT

58

6664373

VALVE optional - port relief & anti-cav. -W/Ref. 23 - 2500 PSI - use in tilt cylinder base end port

59

6653395

VALVE, SOLENOID solenoid - Ref. 16 & 57

59

6586459

SEAL KIT

60

79K7

O RING 10

61

6816250

KIT, SEAL Ref. 4, 26 & 52 - For One Spool - Was 6596310

61

6661328

SEAL KIT main relief - Ref. 17 - 20

61

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

61

6816715

KIT, SEAL See BTI374 - Ref. 3, 4, 13, 17-20, 23-26, 41, 46, 55, 56 & 60 - Was 6596311 - A
