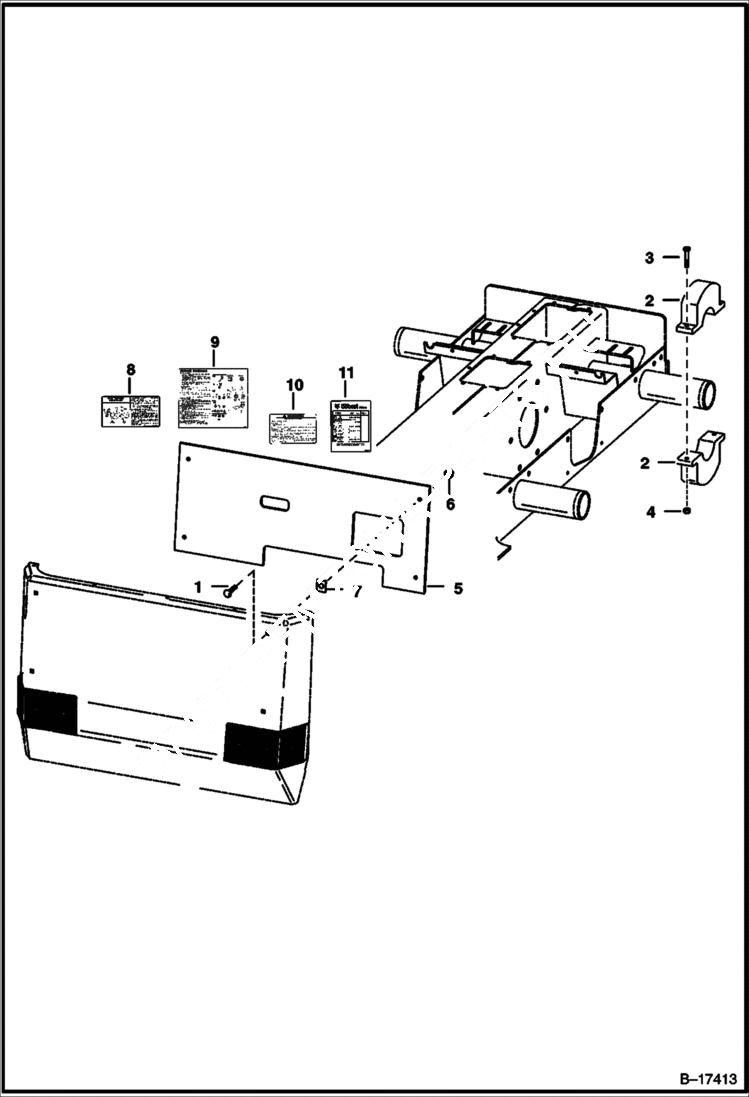

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (1600 lb. Rear Door Counterweight - Two Piece Rear Door) HIGH FLOW HYDRAULICS

1

37C628

BOLT

2

WEIGHT NLA - front axle - 19.1 lbs (8,7 kg) - Was 6702453 - A

2

6714361

COUNTERWEIGHT, AXLE front - 71,6 kg (38.7 lb) - 114,3 mm (4.5'') wide

3

17C640

BOLT 5

4

61D6

NUT 5

5

6704638

WEIGHT

6

57D6

NUT 5

7

1612281

SPRINGNUT spring

8

6705220

DECAL belt tension - for fixed idler

8

6709030

DECAL belt tension - spring loaded idler

9

6708212

DECAL service - Was 6578218 - A

10

6579511

DECAL warning

11

6709781

DECAL filters - Was 6700237 - A
