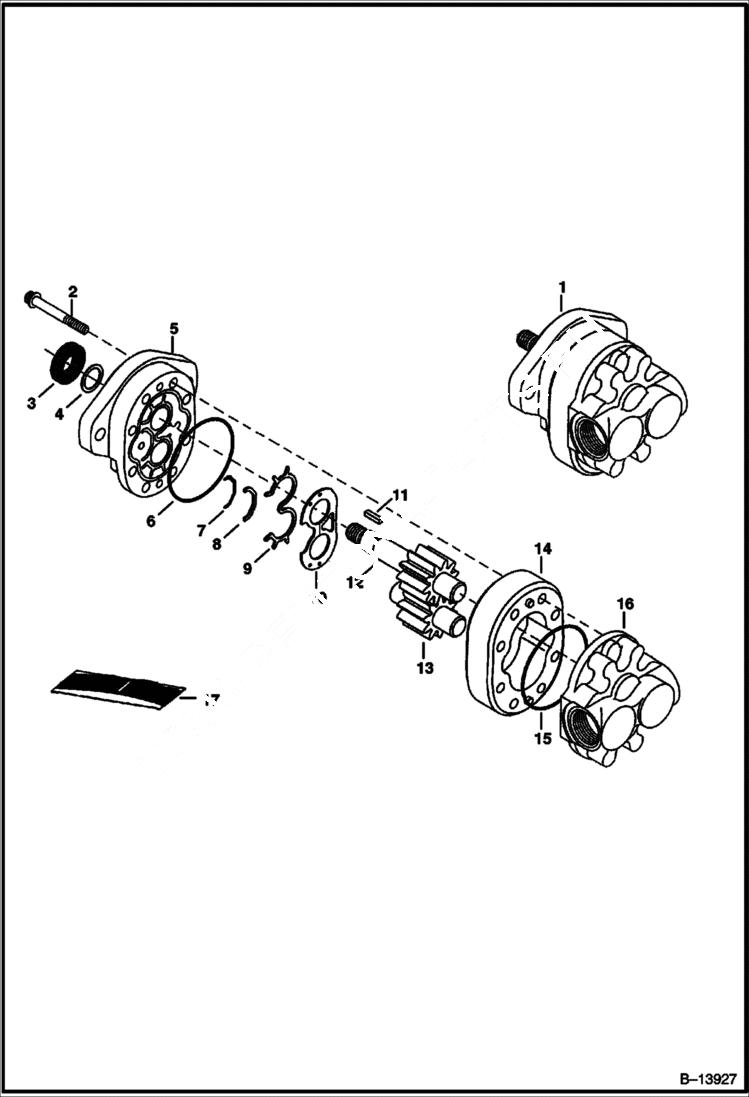

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (Gear Pump - Remotely Mounted to Main Frame) HIGH FLOW HYDRAULICS

1

6667382

PUMP

2

BOLT NSS

3

SEAL NSS

4

WASHER NLA - Order 6668013 - Was 945412 - A

5

COVER NSS

6

O-RING NSS

7

O-RING NSS - moulded

8

SEAL NSS - bearing

9

SEAL NSS

10

PLATE NSS - wear

11

6661020

KEY

12

GEAR NSS

13

GEAR NSS

14

BODY NSS

15

O-RING NSS

16

COVER NSS

17

6668013

SEAL KIT Ref. 3, 4 & 6-10 - Was 6631598 - B,D
