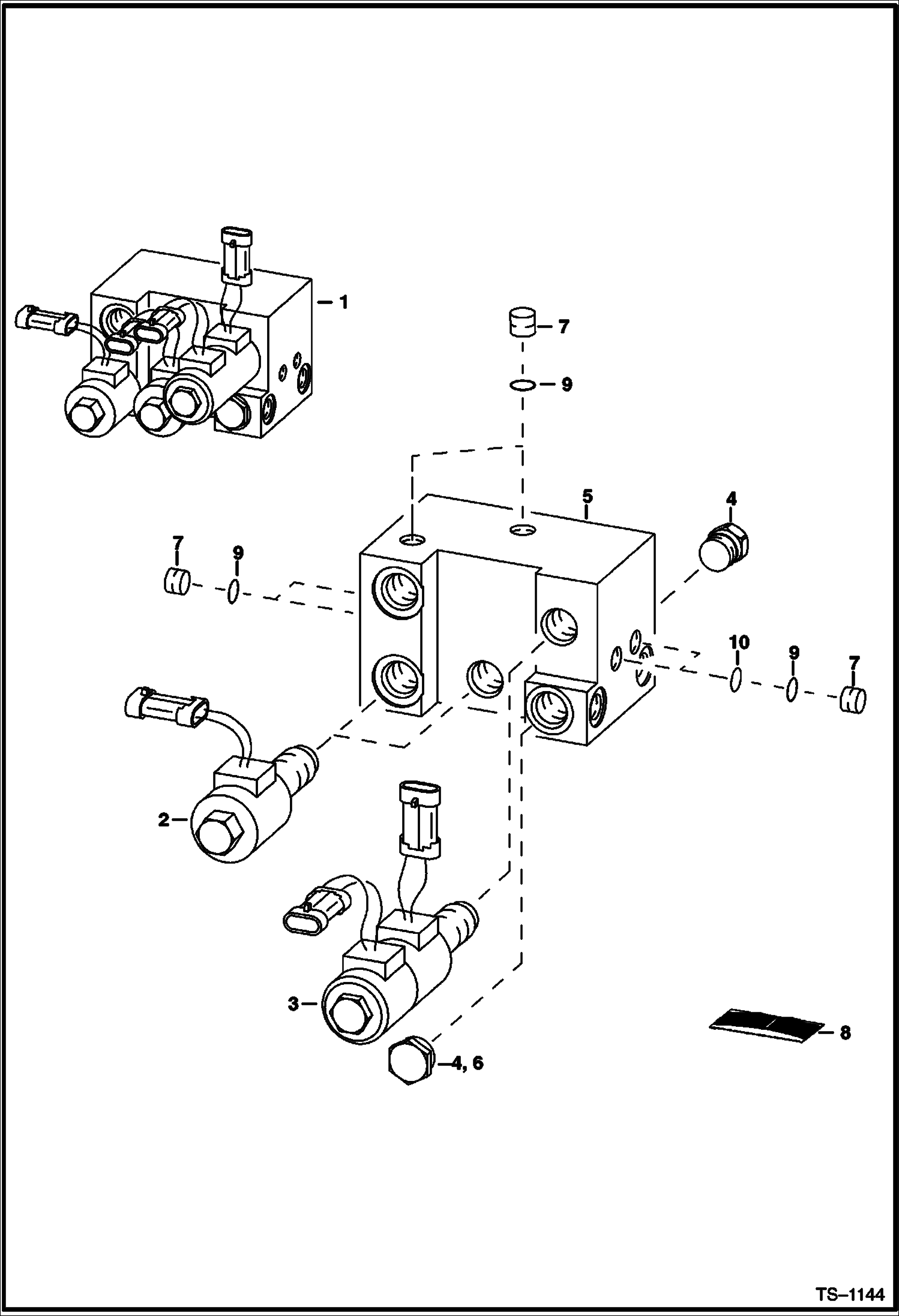

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (Control Valve) (S/N 5122 22018 & Bel, 5126 12416 & Bel) HIGH FLOW HYDRAULICS

1

6662695

VALVE Ref. 2-7, 9 & 10

2

6668725

VALVE Was 6667814 - A

2

6664024

STEM

2

COIL NLA - W/Connector - W/O diode - SEE NOTE - Order 6671026 Coil - Was 6661447 - A

2

6671026

COIL W/Connector - W/ diode - SEE NOTE

2

7D8

NUT 5

3

6666599

VALVE

3

6664025

STEM

3

COIL NLA - W/Connector - W/O diode - SEE NOTE - Order 6671026 Coil - Was 6664031 - A

3

6671026

COIL W/Conn. - W/ diode - SEE NOTE

3

6661448

SEAL KIT

3

7D8

NUT 5

4

6664026

VALVE, CHECK

4

6672515

KIT, SEAL Was 6664033 - A

5

BLOCK NSS - Order Ref. 1

6

6673990

PISTON, VALVE double acting sealed - Was 6664028 - A

7

6665719

PLUG W/Ref. 9

8

6673213

KIT, SEAL For Ref. 2 valve - Was 6664032 - A

8

6661448

SEAL KIT For Ref. 3

8

6672515

KIT, SEAL For Ref. 4 - Was 6664033 - A

9

95K5

O-RING Was 79K000003B - B,D

10

6669615

ORIFICE 0.02
