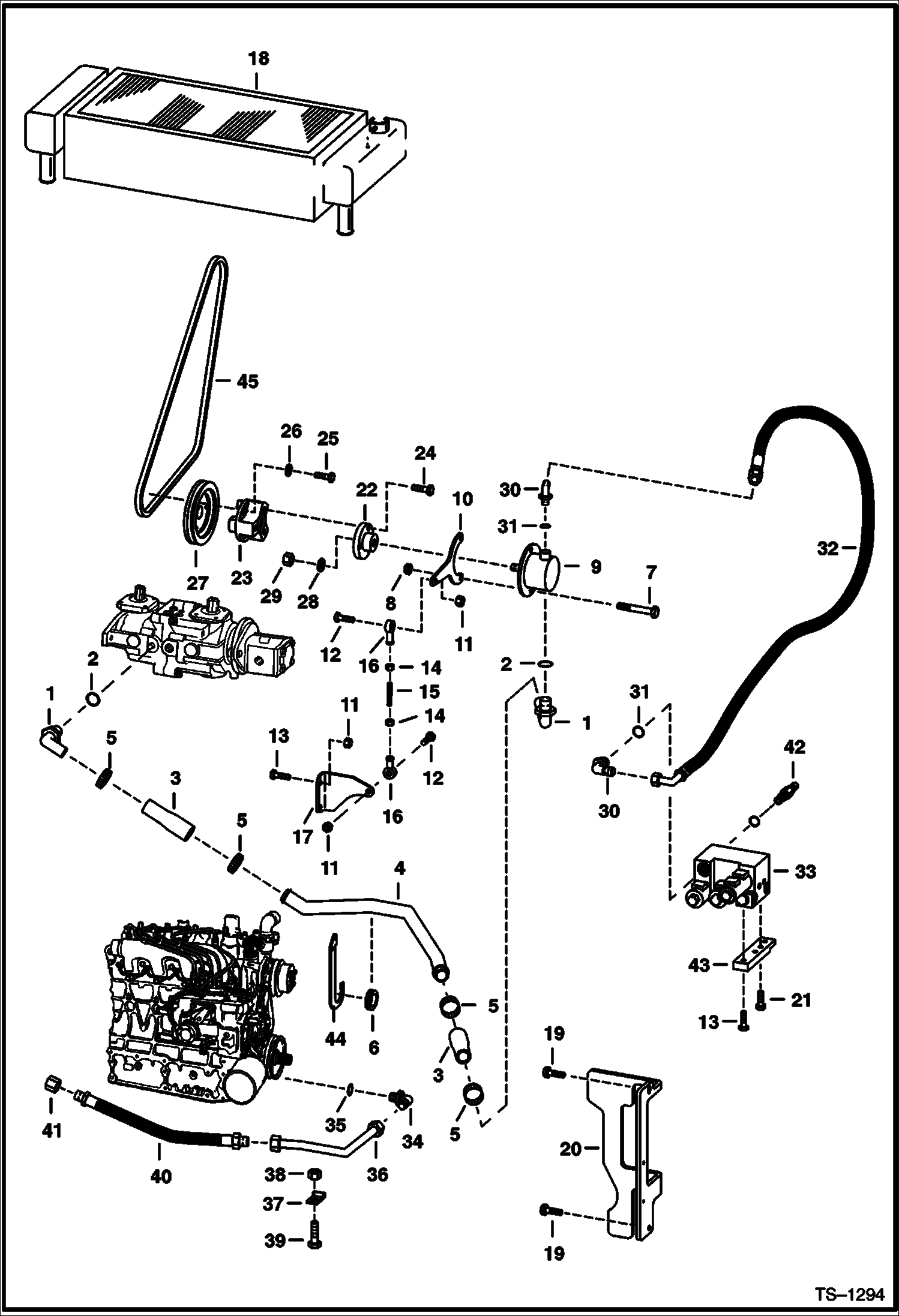

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (S/N 5122 22018 & Below, 5126 12416 & Below) HIGH FLOW HYDRAULICS

1

1321499

FITTING W/Ref. 2

2

79K16

O RING 10

3

6703885

HOSE

4

6705161

TUBE

5

42H16

CLAMP, HOSE 5

6

6705164

GROMMET

7

17C724

BOLT

8

83D7

NUT

9

6667382

PUMP See Illustration HIGH FLOW HYDRAULICS/ B13927 GEAR

10

6703722

ARM torgue

11

85D6

NUT, 5

12

17C620

BOLT

13

17C616

BOLT 5

14

62D6

NUT 5

15

6703719

ROD

16

6512954

ROD END R.H. threads

17

6704016

MOUNT

18

RADIATOR See Illustration COOLING SYSTEM/ B17415

19

84G3712

BOLT 5

20

6709401

SHIELD

21

35C610

BOLT 5

22

6705129

COUPLER

23

6705112

COUPLER

24

17C720

BOLT

25

17C524

BOLT

26

25E15

WASHER

27

6705780

PULLEY high flow

28

25E21

WASHER 5

29

62D8

NUT

30

17K7

ELBOW W/Ref. 31 - flat boss face

30

ELBOW NLA - W/Ref. 31 - tapered boss face - Was 17KV00007B - A

30

97K10

O-RING 10 flared end

30

17KB1010

FITTING, HYD ELBOW W/Ref. 31 - flat boss face

31

79K10

O RING 10 flat boss face

31

99K10

O'RING tapered boss face

32

6705497

HOSE

33

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 CONTROL - W/Ref. 42

34

763818

ELBOW W/Ref. 35

35

79K12

O RING 10

36

6705436

TUBE

37

30H40

CLAMP

38

85D8

NUT, 5

39

17C816

BOLT

40

6705442

HOSE

41

36K7

FITTING

42

6676155

RELIEF VALVE relief - Was 6665626 - B

43

6705471

MOUNT

44

6705168

MOUNT

45

6704720

BELT, ALT See Illustration ENGINE & ATTACHING PARTS/ B17205
