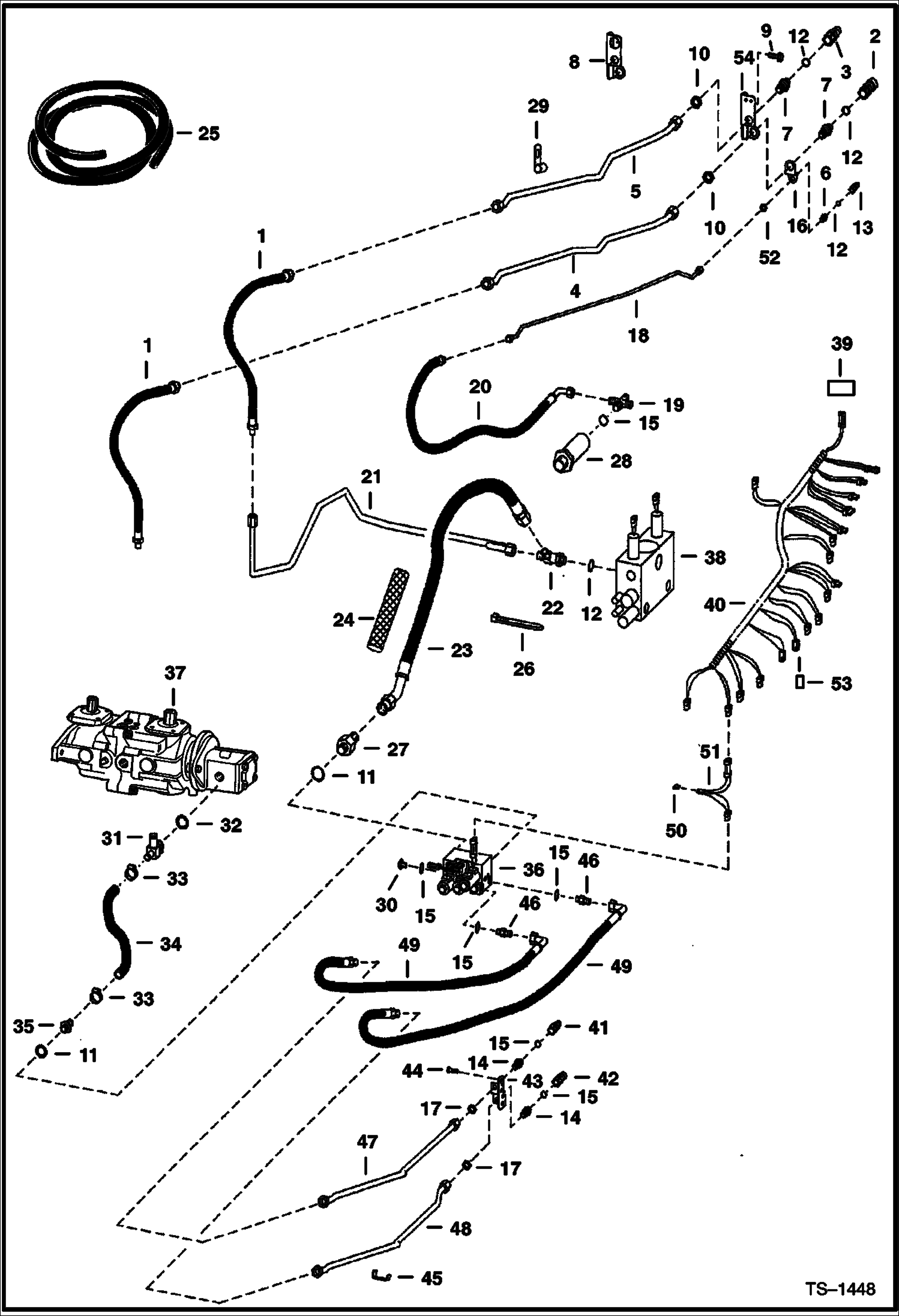

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS (W/ FF Couplers) (S/N 5122 17846-22018, 5126 12076-12416) HIGH FLOW HYDRAULICS

1

6713125

HOSE W/ cover

2

6667807

COUPLER female

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6711740

TUBE

5

6711739

TUBE

6

6726479

ADAPTER W/Ref. 12 - Was 6711628 - A

7

45K8

ADAPTOR W/Ref. 12

8

MOUNT NLA - Order Ref. 54 - Was 6711672 - A

9

84G3712

BOLT 5

10

86F8

NUT 5 NUT

11

79K10

O RING 10

12

79K12

O RING 10

13

6667806

COUPLER male

13

6669659

O-RING

14

45K5

FITTING ADAPTER

15

79K6

O RING 10 O-RING

16

6711913

BRACKET

17

86F5

NUT

18

6727802

TUBE Was 6711746 - A

19

6578209

TEE W/Ref. 15

20

6719108

HOSE Was 6706142 - A

21

6708818

TUBE

22

6704921

TEE W/Ref. 12

23

6708834

HOSE

24

SHIELD NLA - 28'' (711,2 mm) long - Order Ref. 25

25

6652367

HOSE COVER bulk - Sold Per Foot

26

6624289

STRAP, TIE

27

6659459

CHECK VALVE in-line - W/Ref. 12

28

FILTER See Illustration HYDROSTATIC OIL FILTER/ B13527 IN-LINE

29

30H23

CLAMP

30

24K5

PLUG W/Ref. 15

31

6714904

TEE W/Ref. 32 - check boss face to determine correct replacement o-ring - Was 6706466 - A

32

79K16

O RING 10 flat boss face

32

99K16

O-RING tapered boss face

33

42H16

CLAMP, HOSE 5

34

6714423

HOSE Was 6705466 - C

35

1316263

ADAPTER W/Ref. 11

36

6662695

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1144 CONTROL

37

PUMP See Illustration HYDROSTATIC PUMP/ D1979 See Illustration HIGH FLOW HYDRAULICS/ B13927

38

VALVE See Illustration HIGH FLOW HYDRAULICS/ B17414 HYD. CONTROL

39

6668813

SWITCH to activate high flow hydraulics - Was 6665320 - A

40

6710366

HARNESS W/Ref. 53

41

6667804

COUPLER, FF MALE

41

6669657

SEAL KIT

42

6667803

COUPLER, FF FEMALE

43

6711674

MOUNT

44

84G3112

BOLT 5

45

6703615

CLAMP

46

15K5

FITTING W/Ref. 15

47

6711742

TUBE

47

6711742

TUBE

47

6713028

TUBE

47

6713028

TUBE

48

6711741

TUBE

48

6711741

TUBE

48

6713027

TUBE

48

6713027

TUBE

49

6706093

HOSE

50

6703899

DIODE

51

6703898

HARNESS

52

86F6

NUT

53

6704122

DIODE

54

6713850

MOUNT
