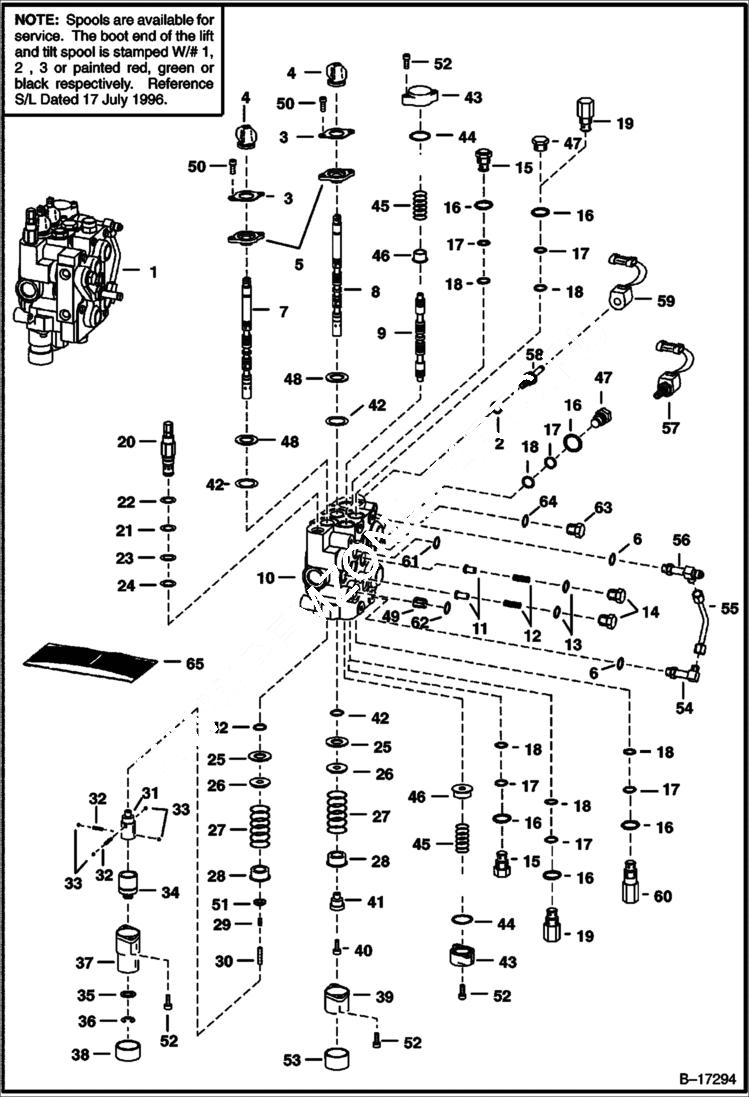

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (W/BICS Valve) (S/N 5122 20298 & Abv, 5124 40721 & Abv, 5126 12258 & Ab HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17197 NLA - W/FITTINGS - REF. 2 - 56, 58, 61 & 62 - ORDER 6808046 VALVE - WAS 6800513 - A

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17197 NLA - REF. 2 - 56, 58 & 60 - 62 - 6803180 VALVE IS THE SAME VALVE AS NLA/6800513 EXCEPT THAT 6803180 USES (2) OF REF. 19 AND (1) OF REF. 47 AND 6

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

79K7

O RING 10

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING seal

6

79K6

O RING 10 flat boss face

6

99K6

O RING tapered boss face

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18 - for NLA/6800513 Valve - SEE NOTE

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18 - for NLA/6803180 Valve - SEE NOTE

20

VALVE NLA - main relief - W/Ref. 21-24 - press. preset at factory - Was 6676197 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

43

6588981

END CAP .62'' thick

44

58K124

O RING 10

45

6588197

SPRING

46

6537096

WASHER

47

6592720

PLUG W/Ref. 16-18 - for NLA/6800513 Valve - SEE NOTE

47

6592720

PLUG W/Ref. 16-18 - for NLA/6803180 Valve - SEE NOTE

48

1K127

O-RING 10 Was 93K127 - A

49

6534630

RESTRICTOR .134/.141

50

29G412

BOLT

51

54K20002

O'RING 10

52

29G416

BOLT

53

6662848

CAP

54

CONNECTOR NLA - W/Ref. 6 - flat boss face - W/O flared end O-rings- Was 6588188

54

CONNECTOR NLA - W/Ref. 6 - tapered boss face - W/flared end O-rings - Was 6715654 - A

54

6817553

CROSS W/Ref. 6 - flat boss face - W/flared end O-rings - Was 6805241 - A

54

97K6

O RING flared end

55

6577690

TUBE

56

TEE NLA - W/Ref. 6 - flat boss face - W/O flared end O-rings - Was 6587889 - A

56

TEE NLA - W/Ref. 6 - tapered boss face - W/flared end O-rings - Was 6804360 - A

56

6805243

TEE W/Ref. 6 - flat boss face - W/flared end O-rings

56

97K6

O RING flared end

57

6653395

VALVE, SOLENOID solenoid - W/Ref. 58 & 59

57

6586459

SEAL KIT

58

6665758

VALVE W/Ref. 2

59

6717708

COIL, 14 VOLT 14 volt - W/nut - Was 6665759 - A

59

6679961

NUT

60

6664373

VALVE port relief & anti-cav. - W/Ref. 16-18 - 2500 PSI - use in tilt cylinder base end port - optional for NLA/6800513 Valve

60

6678552

VALVE port relief & anti-cav. - W/Ref. 16-18 - 3500 PSI - use in tilt cylinder base end port - standard for NLA/6803180 Valve - Was 6671632 - A

61

55K204

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

62

55K212

O RING 10 See Illustration BICS CONTROL VALVE/ TS1365

63

90K8

PLUG W/Ref. 64 - Was 90KV00008B - A

64

95K12

O-RING

65

6816250

KIT, SEAL one spool - Ref. 4, 29, 42 48, & 50-52 - Was 6803605 - A

65

6632279

KIT, SEAL main relief - Ref. 21-24

65

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

65

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 21-24, 42, 44, 48, 52, 58, 61 & 62 - Was 6809448 - A
