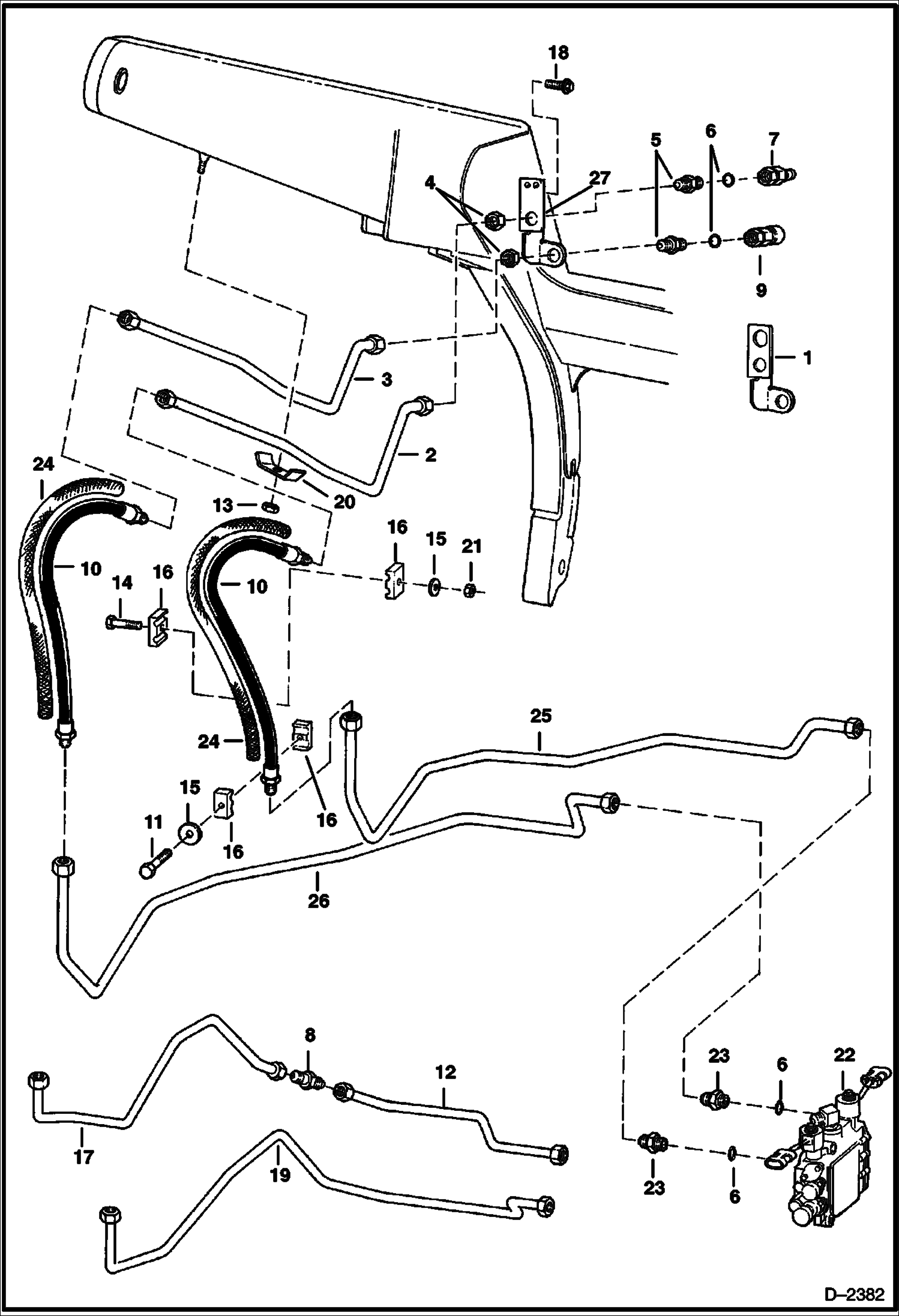

Запчасти Bobcat 700s AUXILIARY HYDRAULICS (W/FF Couplers) (S/N 5122 20298 & Abv, 5124 40721 & Abv, 5126 12258 & Abv) HYDRAULIC SYSTEM

1

MOUNT NLA - Was 6711672 - A

2

6711737

TUBELINE, HYD

3

6727801

TUBELINE, HYD Was 6711738 - A

4

86F7

LOCK NUT

5

6711625

FITTING W/Ref. 6 - flat boss face

5

CONNECTOR NLA - flat boss face - Was 6715185

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K12

O RING 10 flat boss face

6

99K12

O RING tapered boss face

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

45K8

ADAPTOR

8

45K8

ADAPTOR

8

45K8

ADAPTOR

8

10K8

TEE See Illustration HIGH FLOW HYDRAULICS/ B17411 FOR HIGH HORSEPOWER OPTION - NOT SHOWN

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

6729155

HOSE Was 6719155 - D

11

84G3732

BOLT

12

6712876

TUBE

12

6712876

TUBE

12

6712876

TUBE

13

59D6

NUT Was 91D000006B - B

14

35C540

BOLT

15

872229

WASHER

16

6592506

CLAMP

17

6712877

TUBE

17

6712877

TUBE

17

6712877

TUBE

18

84G3112

BOLT 5

19

TUBE NLA - Order Ref. 26 - Was 6712881 - A

20

6502203

CLAMP

21

83D5

NUT 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17294

23

15K8

FITTING W/Ref. 6 - flat boss face

23

ADAPTER NLA - W/Ref. 6 - tapered boss face - Was 15KN00008B - A

23

97K12

O'RING flared end

23

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6 - flat boss face

24

6643249

CONDUIT bulk - sold per foot - Was 6713339 - A

25

6713875

TUBE

25

6713875

TUBE

25

6713875

TUBE

26

6713902

TUBE

26

6713902

TUBE

26

6713902

TUBE

27

6713850

MOUNT
