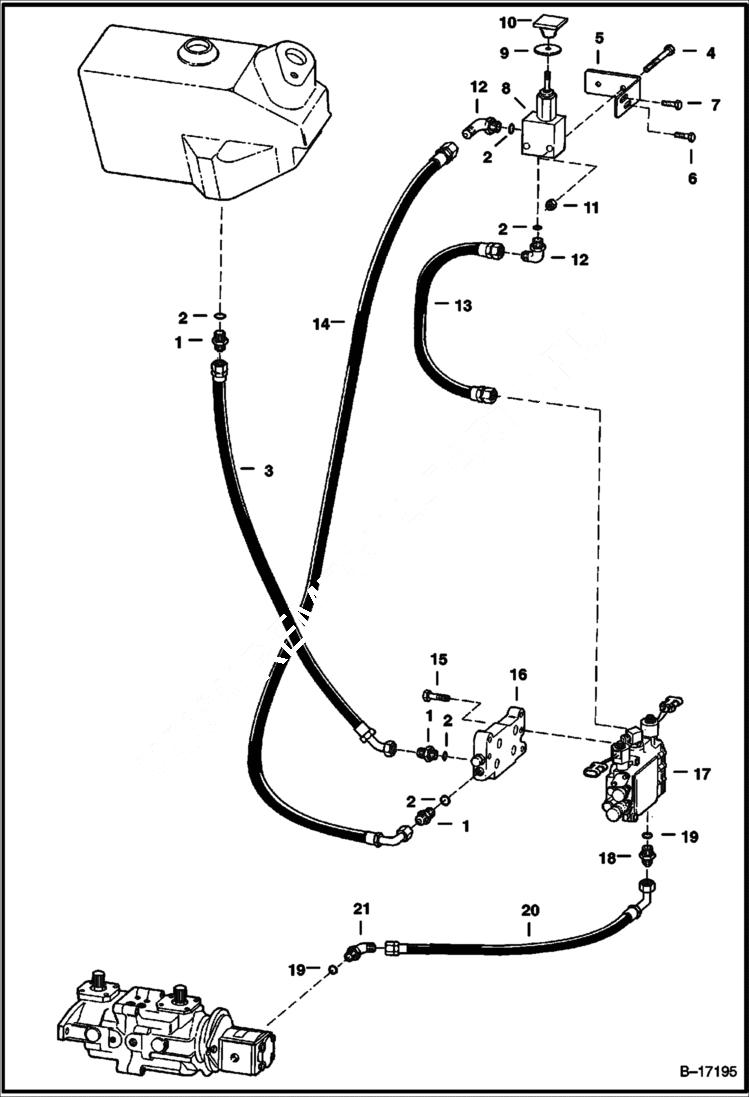

Запчасти Bobcat 700s MANUAL LIFT RELEASE SYSTEM (S/N 512220298 & Above, 512440721 & Above, 512612258 & Above) HYDRAULIC SYSTEM

1

15K5

FITTING W/Ref. 2 - flat boss face

1

ADAPTER NLA - W/Ref. 2 - tapered boss face - Was 15KV00005B - A

1

97K6

O RING flared end

1

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2 - flat boss face

2

79K6

O RING 10 flat boss face

2

99K6

O RING tapered boss face

3

6712886

HOSE 26''(660,4 mm) long

3

6711656

HOSE 24.5''(622,3 mm) long

4

17C428

BOLT

5

6711280

MOUNT

6

84G3716

SCREW 5

7

84G3112

BOLT 5

8

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

9

6707101

SEAL neoprene

10

6737524

KNOB red square - Was 6668913 - A

11

83D4

NUT 10

12

17K5

ELBOW W/Ref. 2 - flat boss face

12

ELBOW NLA - W/Ref. 2 - tapered boss face - Was 17KV00005B - A

12

97K6

O RING flared end

12

17KB0606

FITTING W/Ref. 2 - flat boss face

13

6535451

HOSE

14

6578804

HOSE

15

43C532

BOLT

16

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

17

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17294 - control

18

15K8

FITTING W/Ref. 19 - flat boss face

18

ADAPTER NLA - tapered boss face - Was 15KN00008B - A

18

97K12

O'RING flared end

18

15KB1212

FITTING, HYD CONNECTOR W/Ref. 19 - flat boss face

19

79K12

O RING 10 flat boss face

19

99K12

O RING tapered boss face

20

6729145

HOSE Was 6712848 - A

21

18K8

FTG W/Ref. 19 - flat boss face

21

18KB1212

FITTING, HYD ELBOW tapered boss face - W/Ref. 19 - Was 18KV00008B - A

21

97K12

O'RING flared end
