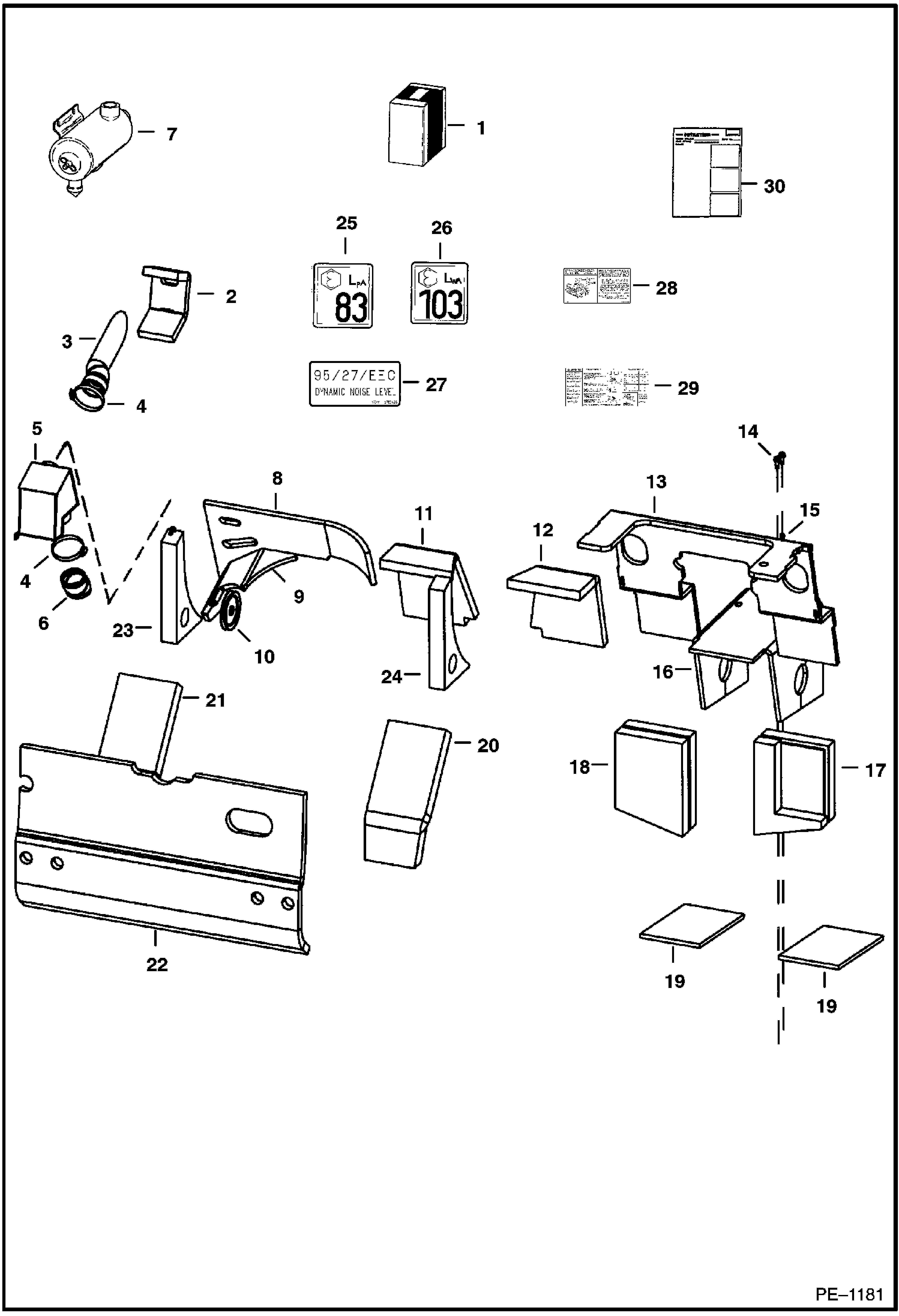

Запчасти Bobcat 700s SOUND KIT ACCESSORIES & OPTIONS

1

6725364

KIT

2

6703331

INSULATION air inlet

3

HOSE NLA - intake - Order Ref. 30 - Was 6715239 - A

4

42H52

CLAMP max dia. 3.75'' (95.25 mm)

4

42H44

HOSECLAM5 max dia. 3.25'' (82.55 mm)

5

MUFFLER NLA - intake - Order Ref. 30 - Was 6719649 - A

6

HOSE NLA - air cleaner - Order Ref. 30 - Was 6715240

7

6735285

AIR CLEANER European

8

6719332

INSULATION blower housing

9

6704769

INSULATION blower housing

10

6712970

PULLEY 4.75''(120,7 mm) O.D.

10

6712971

PULLEY 5.00''(127 mm) O.D.

11

6732722

INSULATION cross member - L.H. - Was 6704721 - A

12

6732723

INSULATION cross member - R.H. - Was 6704722 - A

13

6719372

INSULATION steering panel

14

84G3716

SCREW 5

15

6562619

BUSHING

16

6715372

INSULATION pedal

17

6725316

INSULATION transmission

18

6705848

INSULATION transmission

19

6715371

INSULATION transmission

20

6705850

INSULATION brace

21

6705849

INSULATION brace

22

6715106

INSULATION rear door

23

6707924

INSULATION upright

24

6707923

INSULATION upright

25

6579399

DECAL noise level - 83 decibal

26

6579403

DECAL noise level - 103 decibal

27

6715428

DECAL dynamic level

28

6709030

DECAL belt tension - spring loaded idler

29

6734534

DECAL, SERVICE warning/service schedule/parts - Was 6718398 - A

30

6901003

INSTRUCTIONS
