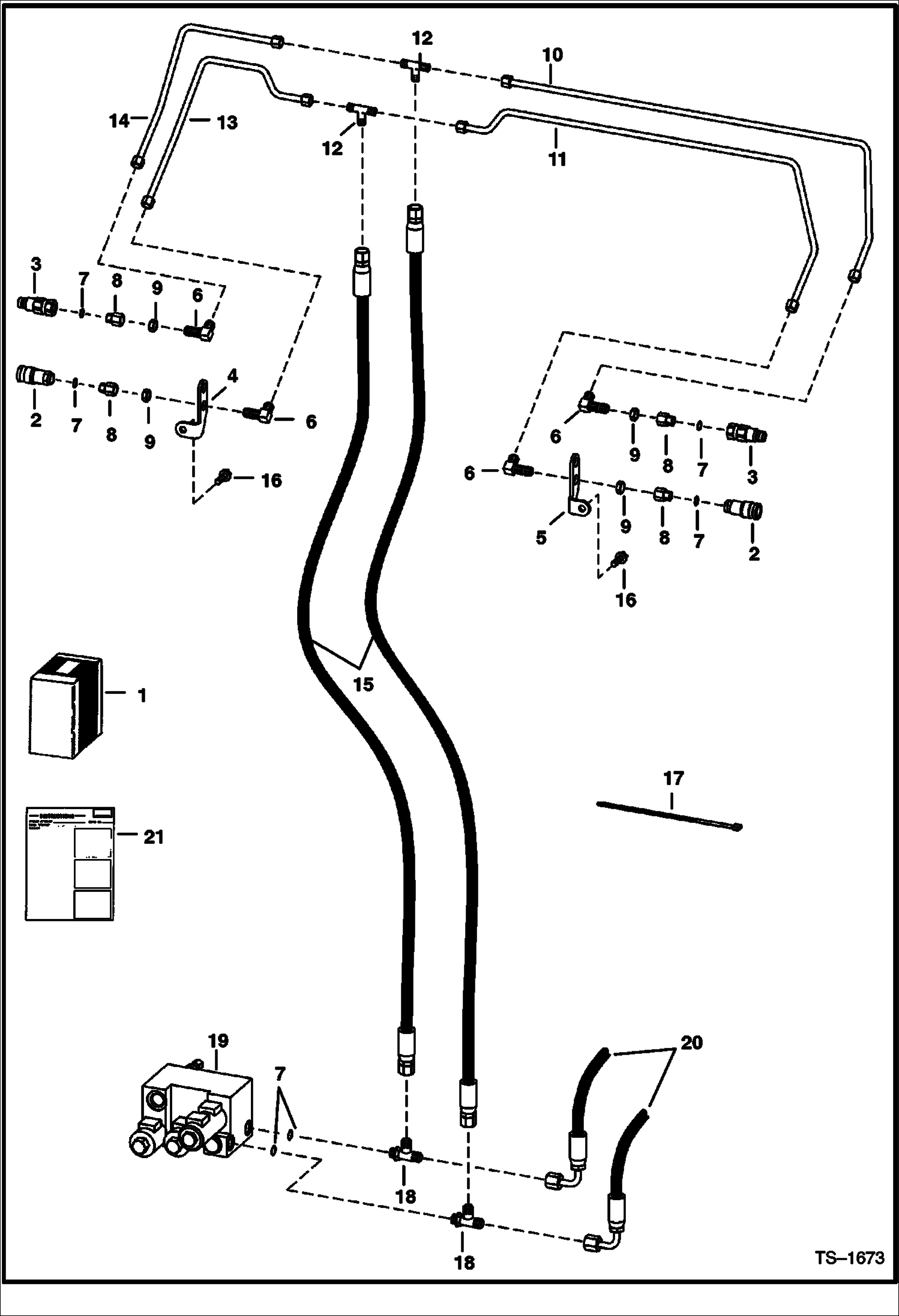

Запчасти Bobcat 700s REAR AUXILIARY KIT (High Flow Hydraulics) (W/ FF Couplers) ACCESSORIES & OPTIONS

1

6712525

KIT Ref. 2-18 & 21

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6707822

MOUNT

5

6707823

MOUNT

6

88F5

ELBOW

7

79K6

O RING 10 flat boss face

7

99K6

O RING tapered boss face

8

6706633

ADAPTER W/Ref. 7 - check boss face to determine correct replacement O-ring

9

86F5

NUT

10

6707872

TUBE

11

6707871

TUBE

12

TEE NLA - W/flared end O-rings - Was 10KN00005B - A

12

97K6

O RING flared end

12

10K5

TEE

13

6707869

TUBE

14

6707870

TUBE

15

6719809

HOSE

16

84G3712

BOLT 5

17

6624289

STRAP, TIE

18

TEE NLA - W/Ref. 7 - tapered boss face - Was 21KV00005B - A

18

97K6

O RING flared end

18

21K5

TEE W/Ref. 7 - flat boss face

19

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 NOT IN KIT

20

HOSE existing hoses

21

6724385

INSTRUCTIONS
