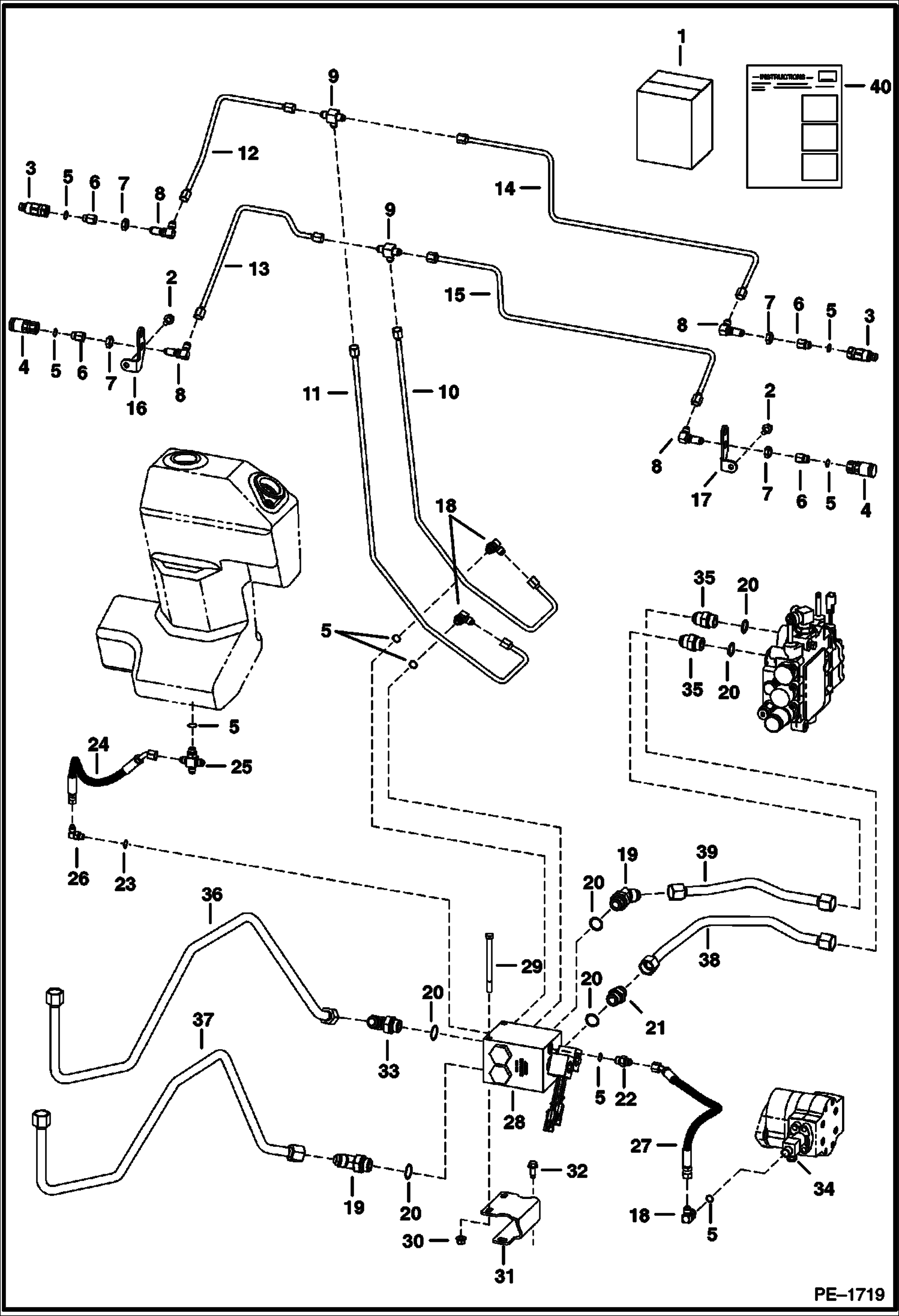

Запчасти Bobcat 700s REAR AUXILIARY KIT (S/N 5122 64900 & Abv, 5124 52200 & Abv) ACCESSORIES & OPTIONS

1

6732808

KIT Ref. 3 - 33 & 36 - 40

2

84G3712

BOLT 5 not in kit - Used in factory option only

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

99K6

O RING tapered boss face

5

79K6

O RING 10 flat boss face

6

6706633

ADAPTER W/Ref. 5 - check boss face to determine correct replacement O-ring

7

86F5

NUT

8

88F5

ELBOW

9

10K5

TEE flat boss face

10

6719950

TUBE

11

6719949

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6733093

TUBE

15

6733092

TUBE

16

6707822

MOUNT

17

6707823

MOUNT

18

17KB0606

FITTING W/Ref. 5 - flat boss face

19

18KB1212

FITTING, HYD ELBOW W/Ref. 20

20

79K12

O RING 10

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 20

22

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - flat boss face

23

79K4

O RING 10

24

6733098

HOSE

25

6578209

TEE W/Ref. 5 - flat boss face

26

17KB0404

FTG HYD ELBOW 90 W/Ref. 23

27

6733096

HOSE

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6725081

MOUNT

32

84G3716

SCREW 5

33

17KB1212

FITTING, HYD ELBOW W/Ref. 20

34

7103953

TEE See Illustration HYDROSTATIC CIRCUITRY/ PE1777 EXISTING - NOT IN KIT - Was 6717662 - A

35

15KB1212

FITTING, HYD CONNECTOR existing - Not in Kit - W/Ref. 20

36

6719946

TUBE

37

6719945

TUBE

38

6719947

TUBE

39

6719948

TUBE

40

6901786

INSTRUCTIONS
