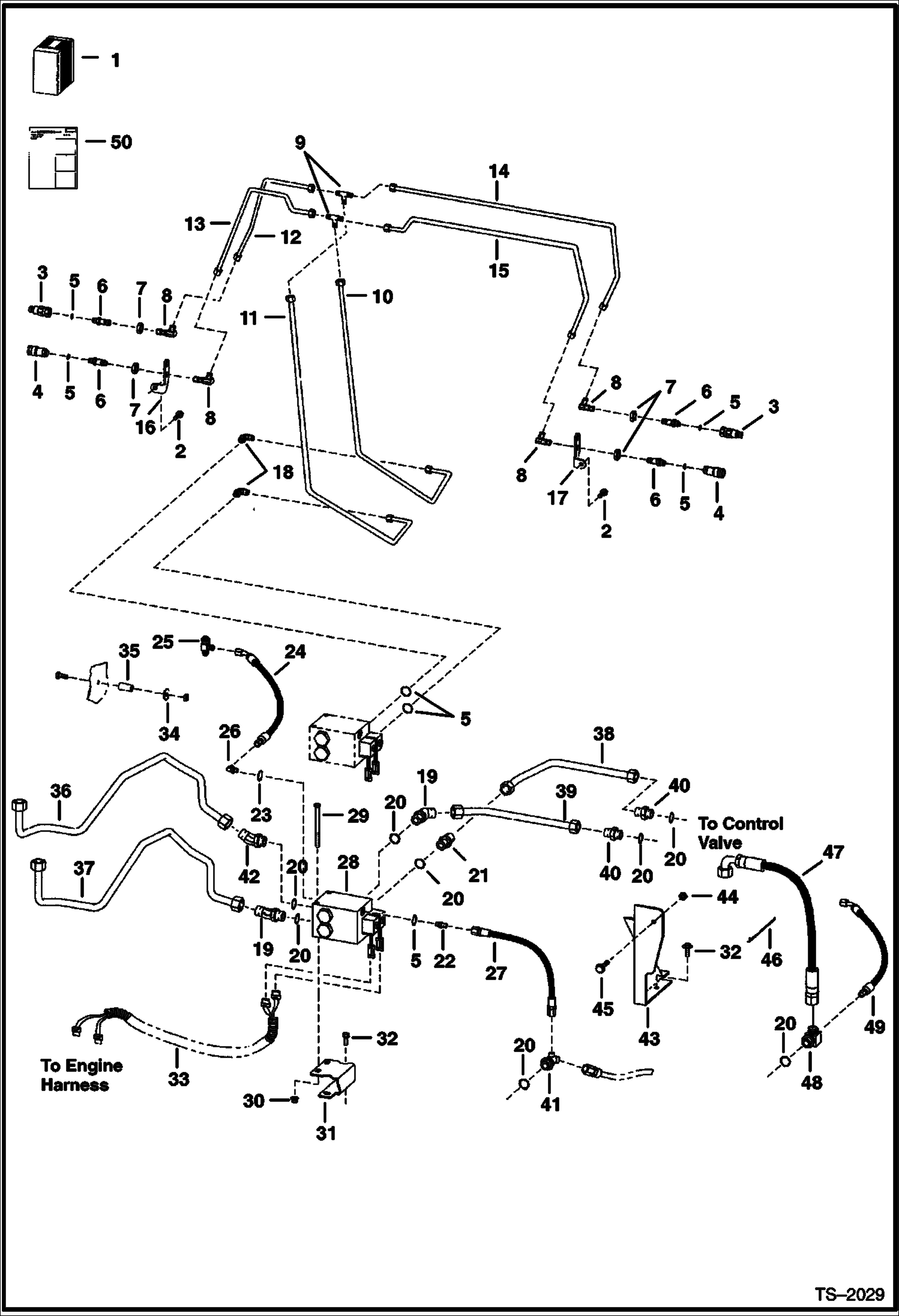

Запчасти Bobcat 700s REAR AUXILIARY KIT (S/N 5122 50001-64899, 5124 50001-52199, 5126 20001 & Abv) ACCESSORIES & OPTIONS

1

6727709

KIT Ref. 2-39, 42 & 48

1

KIT NLA - Export - Order 6727709 Kit, Ref. 15 (6715330 Hose), Ref. 41 (6700599 Tee) & Ref. 43 - 47

2

84G3712

BOLT 5

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6667803

COUPLER, FF FEMALE

5

99K6

O RING tapered boss face

5

79K6

O RING 10 flat boss face

6

6706633

ADAPTER W/Ref. 5 - check boss face to determine correct replacement O-ring

7

86F5

NUT

8

ELBOW NLA - W/ O-rings - Was 88FN00005B - A

8

88F5

ELBOW W/O O-rings

9

TEE NLA - W/flared end O-rings - Was 10KN00005B - A

9

97K6

O RING flared end

9

10K5

TEE

10

6719950

TUBE

11

6719949

TUBE

12

6707870

TUBE

13

6707869

TUBE

14

6707872

TUBE

15

6707871

TUBE

16

6707822

MOUNT

17

6707823

MOUNT

18

ELBOW NLA - W/Ref. 5 - tapered boss face - Was 17KV00005B - A

18

97K6

O RING flared end

18

17KB0606

FITTING W/Ref. 5 - flat boss face

19

ELBOW NLA - W/Ref. 20 - tapered boss face - Was 18KV00008B - A

19

97K12

O'RING flared end

19

18KB1212

FITTING, HYD ELBOW W/Ref. 20 - flat boss face

20

99K12

O RING tapered boss face

20

79K12

O RING 10 flat boss face

21

ADAPTER NLA - W/Ref. 20 - tapered boss face - Was 15KV00008B - A

21

97K12

O'RING flared end

21

15KB1212

FITTING, HYD CONNECTOR W/Ref. 20 - flat boss face

22

ADAPTER NLA - W/Ref. 5 - tapered boss face - Was 15KV00005B - A

22

97K6

O RING flared end

22

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - flat boss face

23

79K4

O RING 10 flat boss face

23

99K4

O'RING tapered boss face

24

6725365

HOSE

25

TEE See Illustration HYDROSTATIC CIRCUITRY/ PE1036 NLA - EXISTING - TAPERED BOSS FACE - WAS 21KV00005B - A

25

97K6

O RING flared end

25

21KB0606

FTG HYD STRAIGHT TEE flat boss face

25

6578209

TEE flat boss face

26

ELBOW NLA - W/Ref. 23 - tapered boss face - Was 17KV00003B - A

26

97K4

O'RING flared end

26

17KB0404

FTG HYD ELBOW 90 W/Ref. 23 - flat boss face

27

6713060

HOSE

28

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

29

17C680

BOLT

30

83D6

NUT 5

31

6725081

MOUNT

32

84G3716

SCREW 5

33

6710870

HARNESS

34

27E6

WASHER 5

35

6714428

SPACER

36

6719945

TUBE

37

6719946

TUBE

38

6719947

TUBE

39

6719948

TUBE

40

ADAPTER existing - W/Ref. 20

41

6706144

CONNECTOR cross

42

ELBOW NLA - W/Ref. 20 - tapered boss face - Was 17KV00008B - A

42

97K12

O'RING flared end

42

17KB1212

FITTING, HYD ELBOW W/Ref. 20 - flat boss face

43

6715289

MOUNT Export

44

85D6

NUT, 5 Export

45

35C620

BOLT 5 Export

46

6610510

TIE Export

47

6712848

HOSE Export

48

6700599

ELBOW Export

49

6715330

HOSE Export

50

6901222

INSTRUCTIONS Was 6901004 - A
