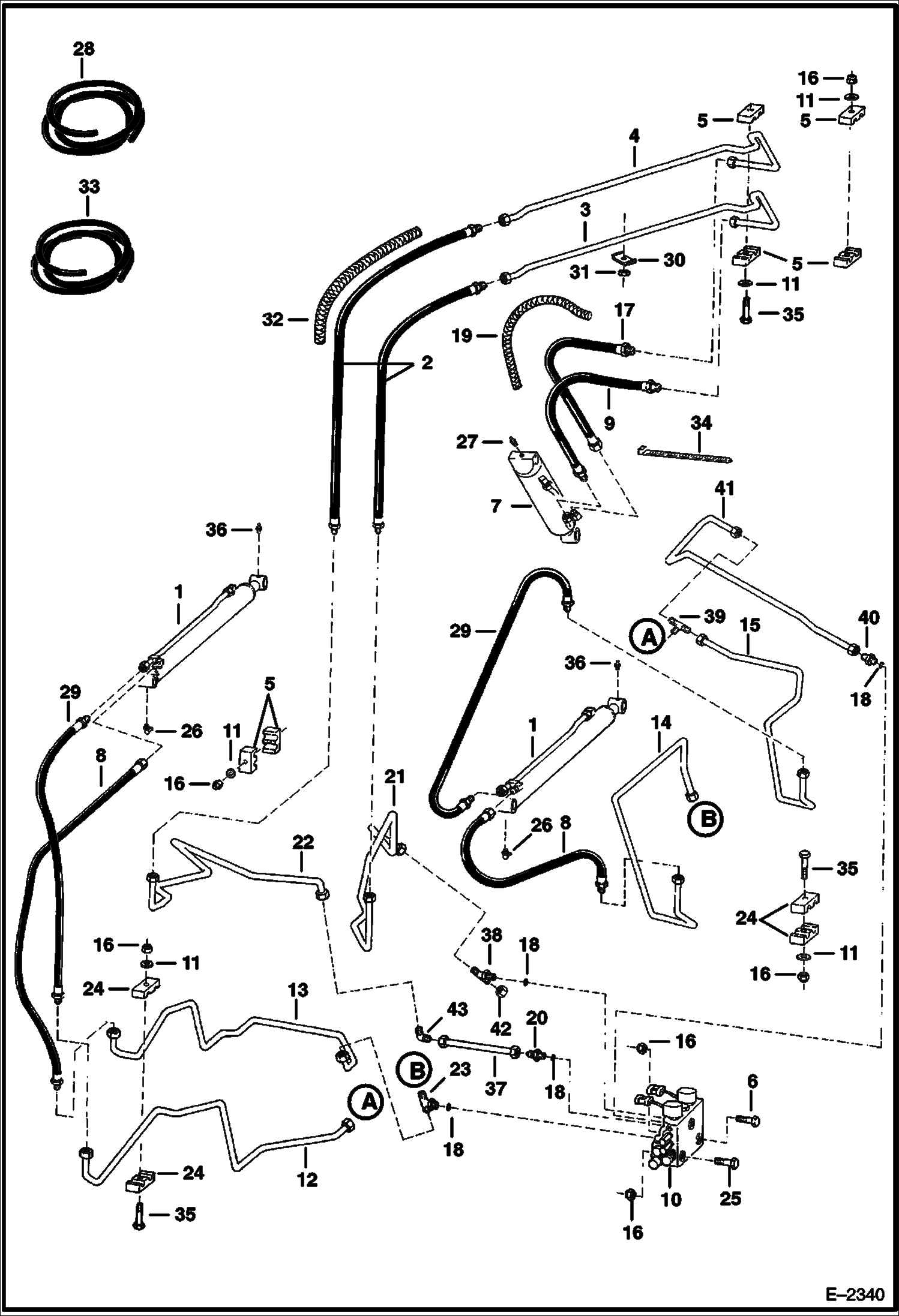

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5122 20298 & Above, 5124 40721 & Above, 5126 12258 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6539418

HOSE W/conduit - Was 6713338 - A

3

6712981

TUBE

4

6712980

TUBE

5

6701893

CLAMP

6

17C540

BOLT

7

CYLINDER See Illustration TILT CYLINDER/ TS1098A See Illustration TILT CYLINDER/ TS1098 TILT

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17294

11

872229

WASHER

12

6712701

TUBE lift

12

6712701

TUBE

12

6712701

TUBE

12

6716628

TUBE lift

12

6716628

TUBE

12

6716628

TUBE

13

6712702

TUBE lift

13

6712702

TUBE

13

6712702

TUBE

13

6713876

TUBE lift

13

6713876

TUBE

13

6713876

TUBE

13

6716627

TUBE lift

13

6716627

TUBE

13

6716627

TUBE

14

6712706

TUBE lift

15

6712705

TUBE lift

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10 flat boss face

18

99K10

O'RING tapered boss face

19

COVER NLA - 18'' (457,2 mm) long - Order Ref. 28 - A

20

15K7

FITTING W/Ref. 18 - flat boss face

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

21

6712703

TUBE tilt

22

6712704

TUBE tilt

23

6711651

TEE W/Ref. 18 - flat boss face

23

6715656

TEE W/Ref. 18 - tapered boss face

23

97K10

O-RING 10 flared end

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

95D6

NUT Was 91D000006B - A

32

COVER NLA - 30'' (762 mm) long - Order Ref. 33

33

6643249

CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot - A

34

6610510

TIE

35

84G3728

BOLT

36

12H15

FITTING, GREASE 5

37

6710573

TUBE tilt

38

19K7

TEE W/Ref. 18 - flat boss face

38

19KB1010

FITTING, HYD TEE W/Ref. 18 - tapered boss face - Was 19KN00007B - A

38

97K10

O-RING 10 flared end

39

10K6

FITTING W/O O-rings

39

10K6

FITTING W/ O-rings - Was 10KN00006B - A

39

97K8

O-RING flared end

40

731794

CONNECTR W/Ref. 18 - flat boss face

40

6715184

ADAPTER W/Ref. 18 - tapered boss face

40

97K8

O-RING flared end

41

6710616

TUBE lift

42

36K7

FITTING

43

77F7

ELBOW W/O O-rings

43

77F7

ELBOW W/ O-rings - Was 77FN00007B - A

43

97K10

O-RING 10 flared end
