Запчасти Bobcat 700s POWER BOB-TACH KIT (S/N 5122 64900 & Abv, 5124 52200 & Abv) ACCESSORIES & OPTIONS

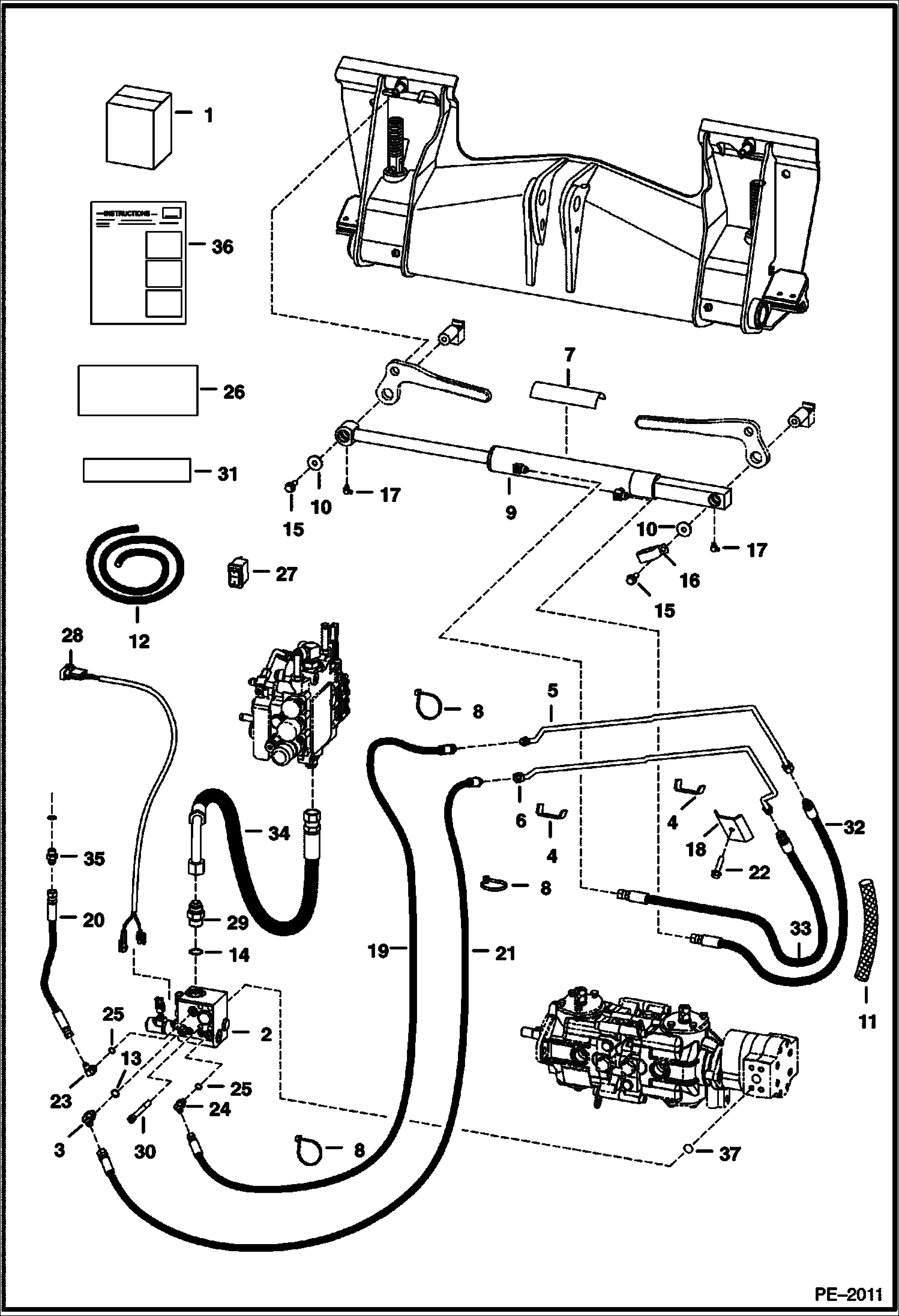

Схема запчастей Bobcat 700s - POWER BOB-TACH KIT (S/N 5122 64900 & Abv, 5124 52200 & Abv) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6735462

KIT, POWER BOB-TACH Ref. 2 - 35

2

VALVE See Illustration POWER BOB-TACH/ MS1835

3

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13

4

6703615

CLAMP

5

6732813

TUBE

6

6732814

TUBE

7

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

COVER NLA - 32''(813 mm) long - Order Ref. 12

12

6656155

HOSE COVER bulk - sold per foot

13

79K6

O RING 10

14

79K12

O RING 10

15

35C616

BOLT 5

16

31H42

CLIP

17

12H25

FITTING Was 11H000025B - B

18

6719884

BRACKET

19

6726987

HOSE

20

6735841

HOSE Was 6731662 - B

21

6719628

HOSE

22

84G3716

SCREW 5 Was 84G003714B - A

23

17KB0404

FTG HYD ELBOW 90 W/Ref. 25

24

18KB0404

FTG HYD ELBOW 45 W/Ref. 25

25

79K4

O RING 10

26

6725907

DECAL, OPERATION power Bob-Tach

27

6676732

SWITCH vertical

28

6730770

HARNESS

29

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14

30

73G656

SCREW

31

6719888

DECAL power Bob-tach

32

6725198

HOSE

33

6725199

HOSE

34

6737669

HOSE Was 6734274 - A

35

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - 2 port reservior

36

6902341

INSTRUCTIONS Was 6901788 - A

37

55K214

O-RING 1 port reservoir

Выбрано товаров: 37
