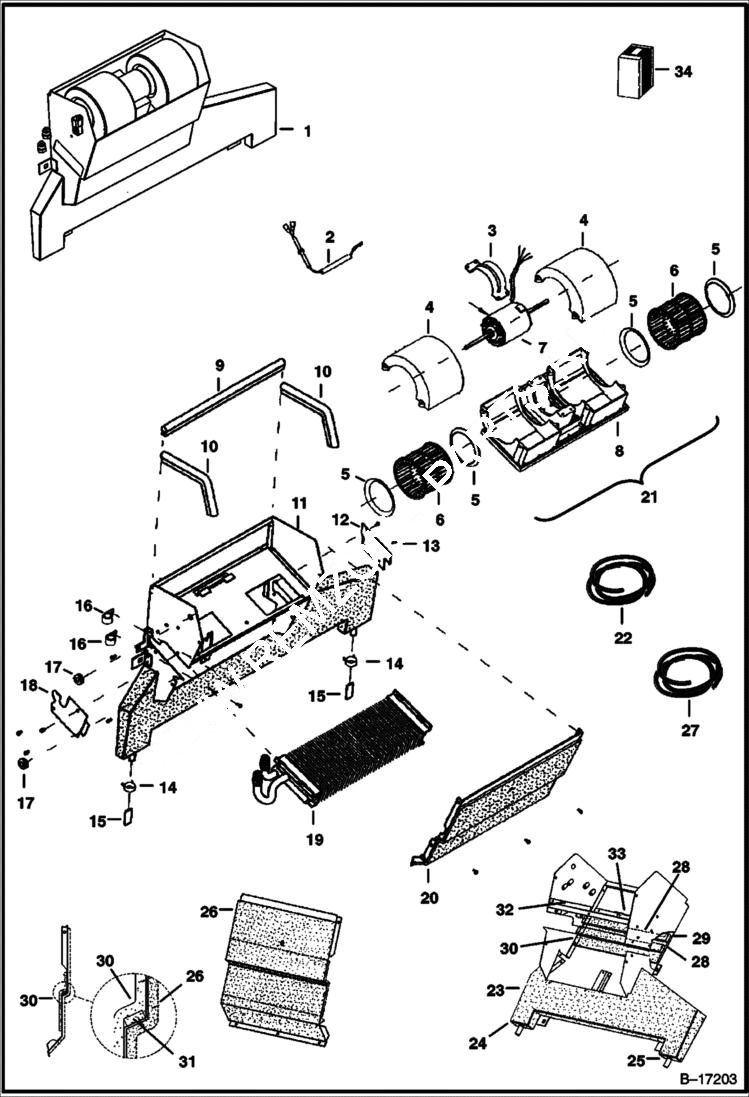

Запчасти Bobcat 700s HEATER (S/N & Below) ACCESSORIES & OPTIONS

1

6676562

HEATER Ref. 2 - 22 - Was 6674933 - A

2

6675508

HARNESS

3

6675506

MOUNT

4

6675507

COVER

5

6675504

RING

6

6675505

BLOWER WHEEL

6

6676618

CLIP

7

6675509

MOTOR, HEATER CAB

8

6675503

HOUSING

9

SEAL NLA - 14.75''(375 mm)long - Order Ref. 22

10

SEAL NLA - 8.5''(215 mm)long - Order Ref. 22

11

6675499

HOUSING W/Ref. 23 - 25 & 27 - 30

12

6675502

PLATE cover

13

BOLT

14

6675510

CLAMP

15

6675511

DRAIN VALVE

16

6675512

CLAMP

17

6675513

GROMMET

18

6675501

PLATE cover

19

COIL See Illustration HEATER/ PE1228 NLA - WAS 6675498 - A

20

6675500

COVER W/Ref. 26, 27 & 30

21

6675497

BLOWER, HEATER AND A/C Ref. 2 - 8

22

6675514

SEAL - PER FOOT bulk - Sold Per Foot

23

6688401

INSULATION Was 6675607 - A

24

6675608

INSULATION

25

6675609

INSULATION

26

6688400

INSULATION Was 6675610 - A

27

6675611

SEAL bulk - Sold Per Foot

28

6675612

INSULATION

29

6675613

INSULATION

30

6675614

INSULATION

31

SEAL NLA - 15''(381 mm) long - Order Ref. 27

32

SEAL NLA - 5.5''(140 mm) long - Order Ref. 27

33

SEAL NLA - 4''(101,6 mm) long - Order Ref. 27

34

6728567

KIT See Illustration HEATER/ PE1151
