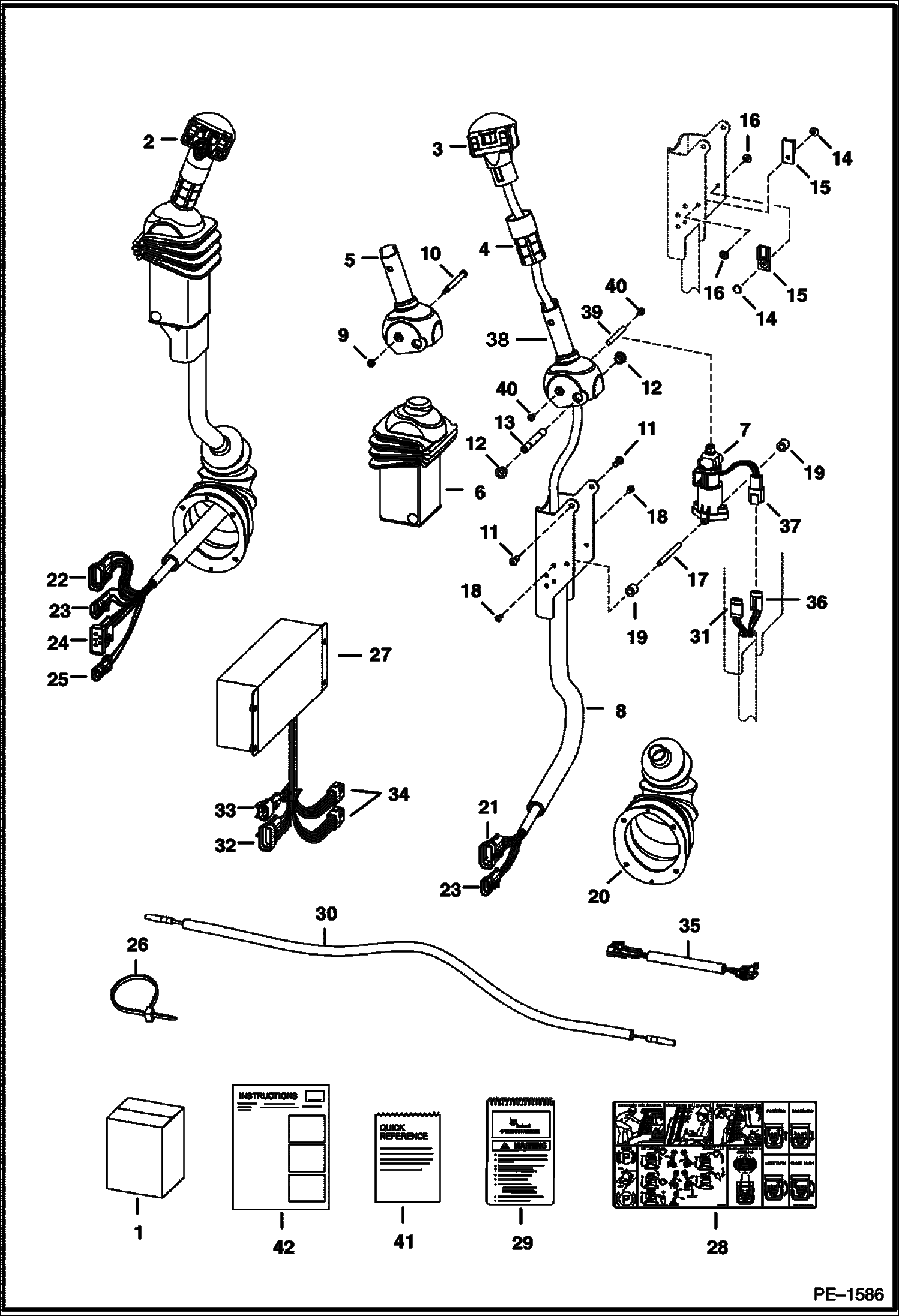

Запчасти Bobcat 700s HAND CONTROL KIT (W/Push Button Float) ACCESSORIES & OPTIONS

1

6727298

KIT SEE NOTE

2

6684913

LEVER tilt - RH - Was 6680426 - A

2

6684914

LEVER lift - LH - Was 6680425 - A

3

HANDLE See BTI335 NLA - lift - R.H. - Was 6675469 - A

3

6680417

HANDLE lift - LH - Was 6675749 - A

4

GRIP NLA - Order 6702621 Grip & cut to 2.8'' (63,5 mm) long - Was 6713349 - A

5

HANDLE NLA - R.H. - Order Ref. 38-40 - Was 6597774 - A

5

HANDLE NLA - L.H. - Order Ref. 38 - 40 - Was 6717163 - A

6

6680471

COVER Was 6713898 - A

7

6684910

SENSOR, ELEC AHC Was 6680422 - A

7

6670706

CONNECTOR 3-pin

7

6670714

PIN

7

6670710

LOCK

8

6680481

CHANNEL RH - Was 6719712 - A

8

6680480

CHANNEL LH - Was 6719711 - A

9

12D10

NUT Use W/Ref. 10

10

6716826

BOLT shoulder - 10-24UNC - Use W/Ref. 5

11

25GT410

SCREW

12

6702990

BUSHING

13

6713043

SPACER Was NLA - D

14

6665321

RIVET male

15

6665000

CLIP

16

6665322

RIVET female

17

6719834

SPACER threaded

18

6727065

BOLT

19

6719835

SLEEVE Was NLA - D

20

6532127

BOOT

21

6640692

CONNECTOR 10-pin

21

6640690

PIN

21

6640694

LOCK Use W/ 10-pin connector

21

6641176

SEAL

21

6646582

PLUG cavity

22

6640692

CONNECTOR 10-pin

22

6640690

PIN

22

6640694

LOCK Use W/ 10-pin connector

22

6641176

SEAL

22

6646582

PLUG cavity

23

6640699

CONNECTOR 3-pin

23

6640690

PIN

23

6641176

SEAL

23

6640700

LOCK

24

6667144

CONNECTOR 5-pin

24

6640690

PIN

24

6641176

SEAL

24

6646582

PLUG cavity

24

6667145

LOCK Use W/ 5-pin connector

25

6641179

CONNECTOR 2-pin

25

6640690

PIN

25

6641176

SEAL

25

6641180

LOCK Use W/ 2-pin connector

26

6610510

TIE

27

6676153

CONTROLLER

28

6727155

DECAL

29

6718719

HANDBOOK, OPERATOR'S W/WIRE ROPE - A

30

6727328

HARNESS

31

6670707

CONNECTOR 3-pin

31

6670715

PIN

31

6670711

LOCK

32

6640692

CONNECTOR 10-pin

32

6640690

PIN

32

6640694

LOCK Use W/ 10-pin connector

32

6641176

SEAL

32

6646582

PLUG cavity

33

6648307

CONNECTOR 2-pin

34

6670709

CONNECTOR 8-pin

35

6728742

HARNESS W/capacitor

36

6677364

CONNECTOR 3-pin

36

6676640

SEAL

37

6676870

CONNECTOR 3-pin

37

6676640

SEAL

37

6670715

PIN

37

6670711

LOCK

38

6729594

HANDLE RH - Was NLA - D

38

6729595

HANDLE LH - Was NLA - D

39

6680469

SPACER 2.28'' threaded on both ends - Was 6729600 - A

40

6727065

BOLT button head - 10-24UNC

41

6718719

HANDBOOK, OPERATOR'S W/WIRE ROPE Was 6902600 - B,D

42

6901100

INSTRUCTIONS
