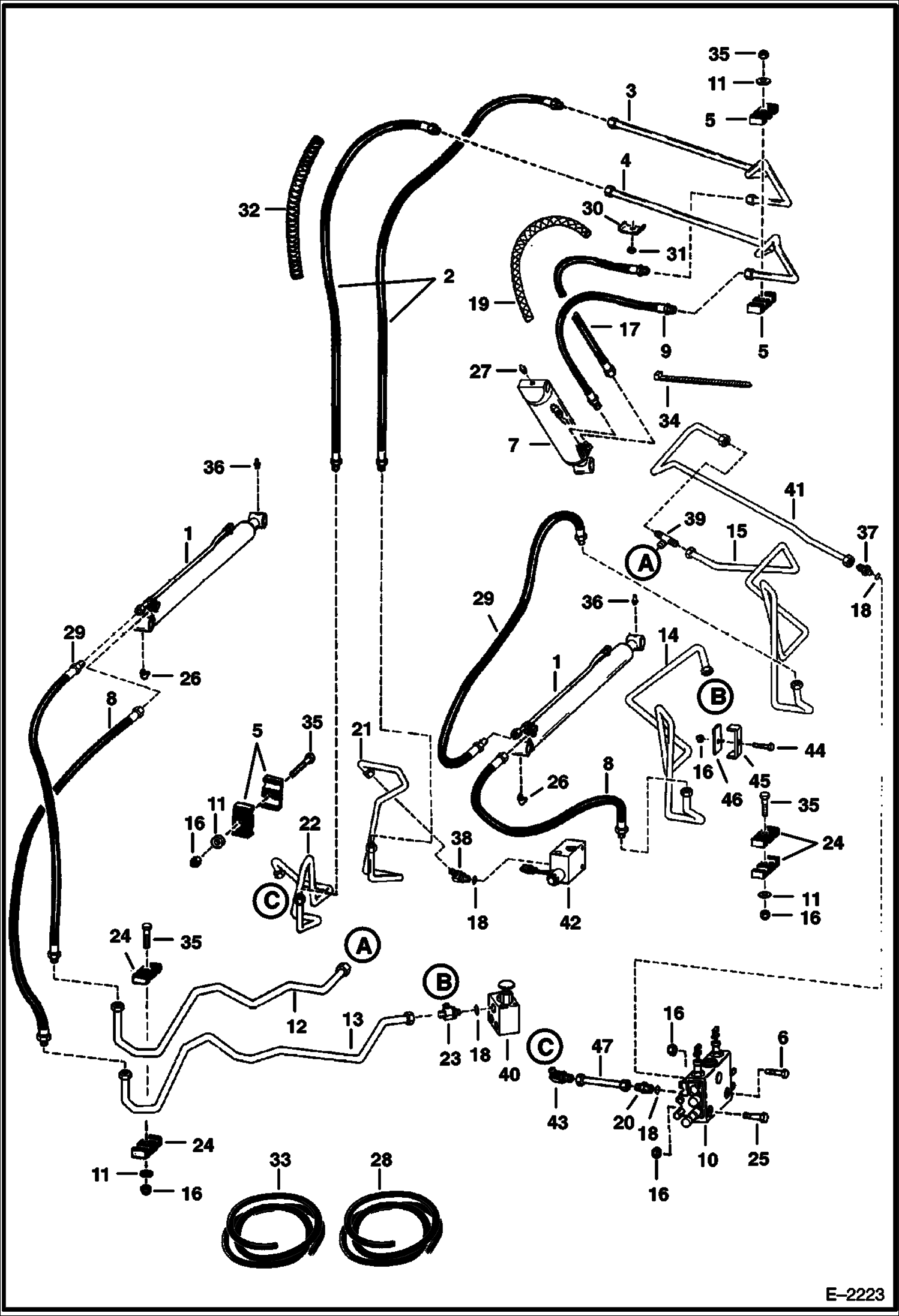

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5122 20297 & Below, 5124 40720 & Below, 5126 12257 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6708498

HOSE Was 6577669 - B

3

6706835

TUBE

4

6706834

TUBE

5

6701893

CLAMP

6

17C540

BOLT

7

CYLINDER See Illustration TILT CYLINDER/ TS1098 TILT

8

6577671

HOSE, HYD ASSY

9

6704335

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2219

11

872229

WASHER

12

6707678

TUBE lift

13

6707667

TUBE lift

14

6707685

TUBE lift

15

6708214

TUBE lift

16

85D5

NUT 5

17

6704336

HOSE

18

79K10

O RING 10 flat boss face

18

99K10

O'RING tapered boss face

19

COVER NLA - 18'' (457,2 mm) long - Order Ref. 28

20

15K7

FITTING W/Ref. 18 - flat boss face

20

15KB1010

FITTING, HYD CONNECTOR W/Ref. 18 - tapered boss face - Was 15KV00007B - A

20

97K10

O-RING 10 flared end

21

6707688

TUBE tilt

22

6707687

TUBE tilt

23

6578183

TEE W/Ref. 18

24

6701892

CLAMP

25

17C532

BOLT 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6718954

HOSE Was 6578808 - A

30

6502203

CLAMP

31

95D6

NUT Was 91D000006B - A

32

COVER NLA - 30'' (762 mm) long - Order Ref. 33

33

6705749

SHIELD 1.85'' I.D. - bulk - Sold Per Foot

34

6610510

TIE

35

84G3728

BOLT

36

12H15

FITTING, GREASE 5

37

731794

CONNECTR W/Ref. 18 - flat boss face

37

6715184

ADAPTER W/Ref. 18 - tapered boss face

37

97K8

O-RING flared end

38

17K7

ELBOW W/Ref. 18

39

10K6

FITTING

40

6664850

VALVE See Illustration LIFT LOCK VALVE/ C3386 See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 - lift lock

41

6705141

TUBE lift

42

6664849

VALVE See Illustration TILT LOCK VALVE/ C3387 See Illustration LIFT & TILT CONTROL SYSTEM/ E2213 TILT LOCK

43

77F7

ELBOW Was 77K000007B - D

44

35C536

BOLT

45

6706783

CLAMP

46

6706784

PAD

47

6705069

TUBE tilt
