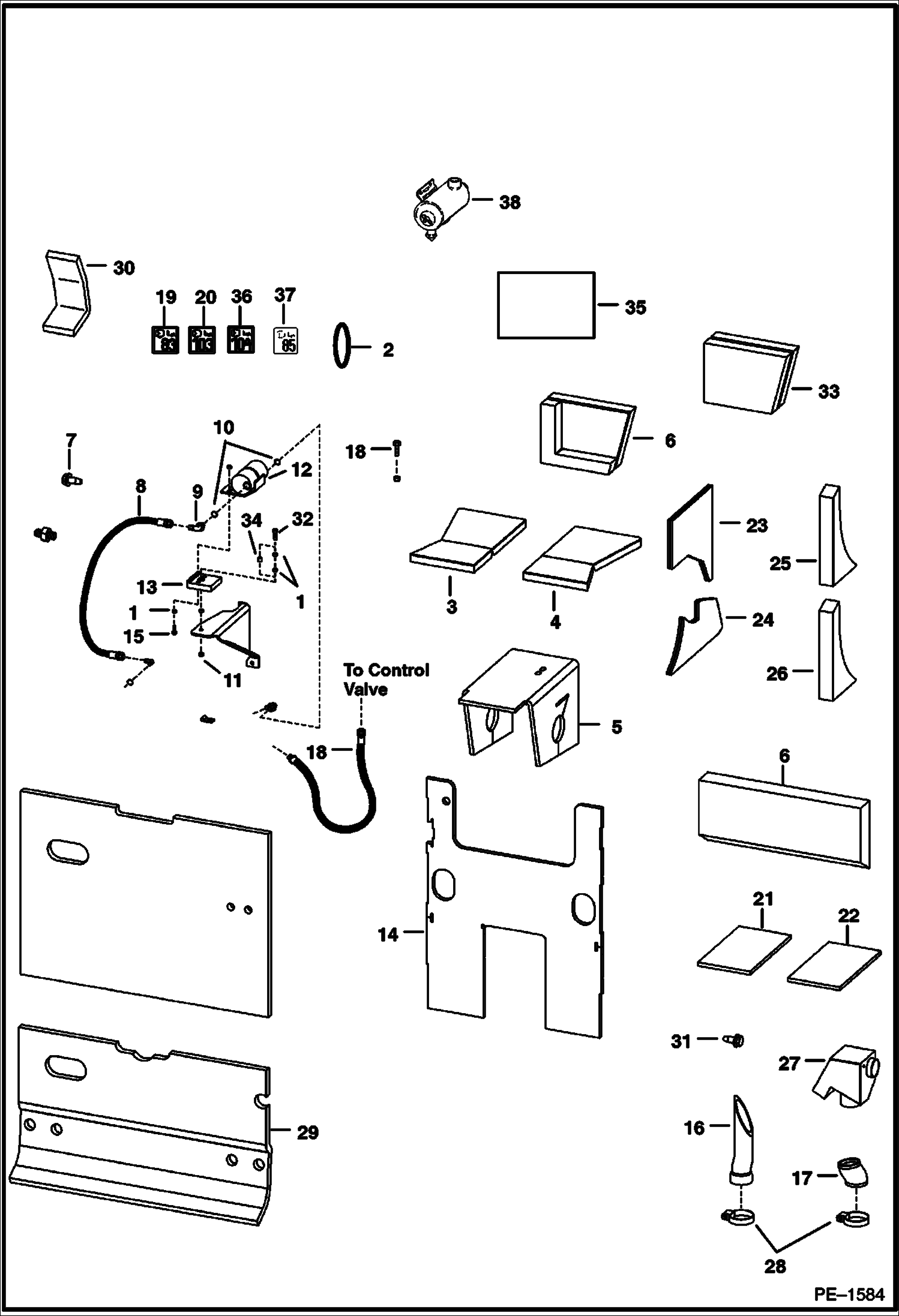

Запчасти Bobcat 700s EUROPEAN ACCESSORIES (Sound Option) ACCESSORIES & OPTIONS

1

6562619

BUSHING

2

6712970

PULLEY fan drive - 4.75'' (120,65 mm) O.D.

2

6712971

PULLEY fan drive - 5.00'' (127 mm) O.D.

2

6703483

PULLEY, FAN DRIVE IDLER fan drive - 5.25'' (133,4 mm) OD

3

6732722

INSULATION cross member - L.H. - Was 6704721 - A

4

6732723

INSULATION cross member - R.H. - Was 6704722 - A

5

6715372

INSULATION pedal

6

6725316

INSULATION transmission

7

84G3716

SCREW 5

8

6729144

HOSE pump to hyd. muffler - Was 6707231 - A

9

ELBOW NLA - W/Ref. 10 - tapered boss face - Was 17KV00008B - A

9

97K12

O'RING flared end

9

17KB1212

FITTING, HYD ELBOW W/Ref. 10 - flat boss face

10

99K12

O RING tapered boss face

10

79K12

O RING 10 flat boss face

11

85D6

NUT, 5

12

6659982

MUFFLER hydraulic

13

6705333

MOUNT rubber

14

6719372

INSULATION steering panel

15

35C616

BOLT 5

16

HOSE NLA - intake - Order Ref. 38 - Was 6715239 - A

17

HOSE NLA - air cleaner - Order Ref. 38 - Was 6715240 - A

18

6729154

HOSE, HYD ASSY muffler to control valve - Was 6714594 - A

19

6579399

DECAL noise warning - 83 decibel

20

6579403

DECAL noise warning - 103 decibel

21

6705849

INSULATION brace

22

6705850

INSULATION brace

23

6719332

INSULATION blower housing

24

6704769

INSULATION blower housing

25

6707923

INSULATION upright

26

6707924

INSULATION upright

27

MUFFLER NLA - intake - Order Ref. 38 - Was 6719649

28

42H52

CLAMP max dia. 3.75'' (95.25 mm)

28

42H44

HOSECLAM5 max dia. 3.25'' (82.55 mm)

29

6715106

INSULATION rear door

30

6703331

INSULATION air inlet

31

84G3112

BOLT 5

32

84G3724

BOLT

33

6705848

INSULATION transmission

34

6715744

BUSHING

35

6715371

INSULATION transmission

36

6731994

DECAL, DECIBEL noise level - 104db

37

6579385

DECAL noise warning - 85 decibel

38

6735285

AIR CLEANER European
