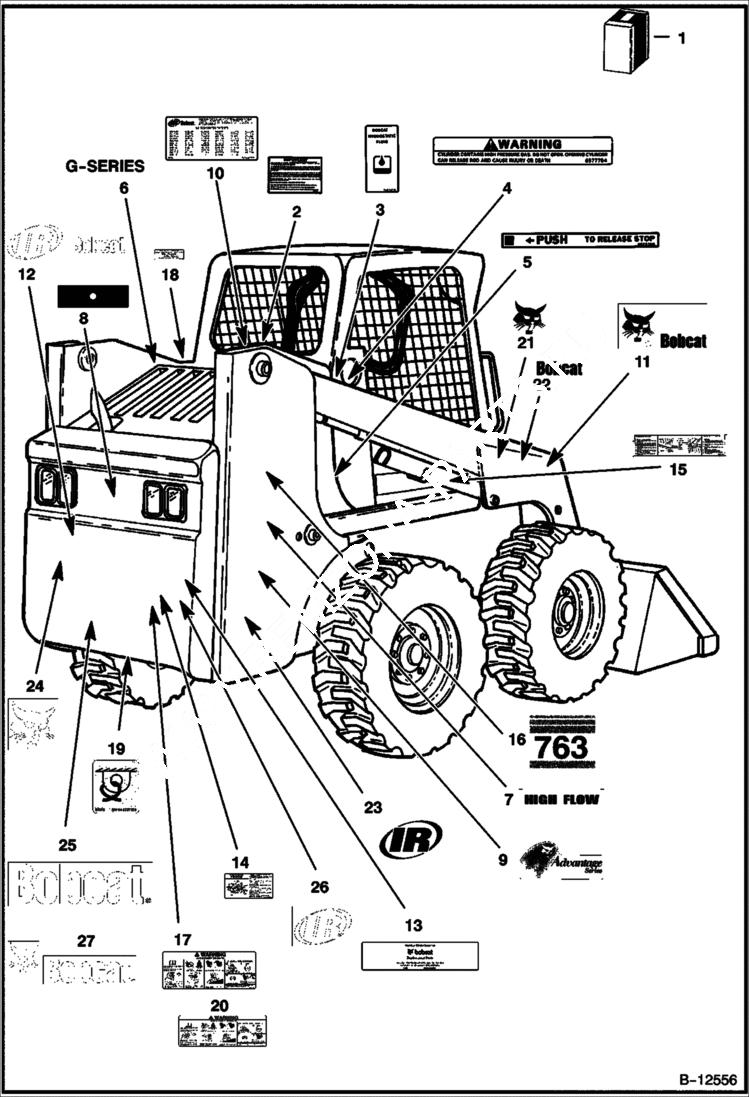

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6901067

KIT decal

1

6725366AR

KIT decal

1

6725366BR

KIT decal

1

6725366JP

KIT decal

1

6725367AR

KIT translation

1

6725367BR

KIT translation

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6717907

DECAL ''G'' Series

7

6727913

DECAL high flow - Not in Kit - Was 6714534 - A

8

6714242

DECAL not in kit

9

6718272

DECAL advantage series - R.H. - 14''(355,6 mm) wide - not in kit

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH R.H. - not in kit - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - not in kit - Was 6702827 - A

12

DECAL NLA - Logo - not in kit - Was 6727311 - A

13

6565200

DECAL, FILTER

14

6709030

DECAL belt tension - spring loaded idler

15

6706558

DECAL, OPERATION lift arm support

16

6714533

DECAL model

17

6734534

DECAL, SERVICE warning/service schedule/ service parts - Was 6718398 - A

18

6708929

DECAL, COOLANT propylene glycol

19

6727595

DECAL Was 6533898 - A

20

6728539

DECAL Was 6718698 - A

21

6731507

DECAL RH - Bobcat head - black

21

6731508

DECAL LH - Bobcat head - black

22

6731336

DECAL Bobcat - black - Was 6731509 - A

23

DECAL NLA - IR Logo - Black - Was 6735864 - A

24

DECAL NLA - Bobcat head - white - Order Ref. 27 - Was 6732420 - A

25

DECAL NLA - Bobcat - white - Order Ref. 27 - Was 6732419 - A

26

DECAL NLA - IR - White - Was 6732423 - A

27

6735901

DECAL, LOGO BOBCAT HEAD white
