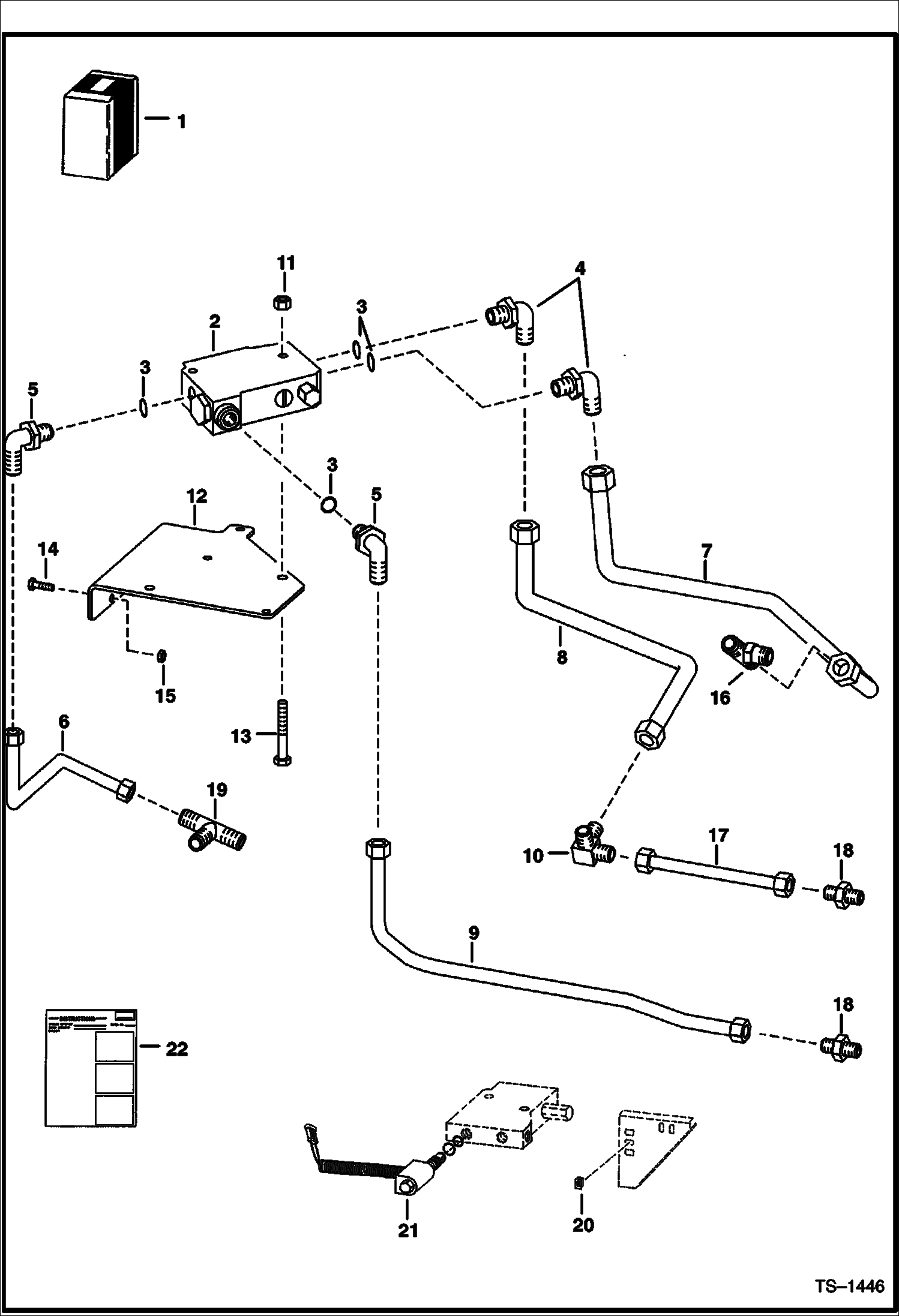

Запчасти Bobcat 700s BUCKET POSITIONING VALVE KIT (S/N 5122 62999 & Bel, 5124 51999 & Bel) ACCESSORIES & OPTIONS

1

6712050

KIT Ref. 2 - 15 & 20 - 22

2

VALVE NLA - Order 6673959 valve - If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 loadd check - Was 6666341 - A

3

99K10

O'RING tapered boss face

3

79K10

O RING 10 flat boss face

4

ELBOW NLA - W/Ref. 3 - tapered boss face - Was 17KV00007B - A

4

97K10

O-RING 10 flared end

4

17KB1010

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

5

17KB0810

FITTING, HYD ELBOW W/Ref. 3 - flat boss face - Was 6715716 - A

6

6705068

TUBE

7

6710583

TUBE

8

6704839

TUBE

9

6710584

TUBE

10

6705070

TEE

11

57D5

NUT

12

6704833

BRACKET

13

35C536

BOLT

14

35C412

BOLT

15

55D4

NUT

16

TEE See Illustration HYDRAULIC CIRCUITRY/ E2383 NOT IN KIT

17

TUBE See Illustration HYDRAULIC CIRCUITRY/ E2383 NOT IN KIT

18

ADAPTER See Illustration HYDRAULIC CIRCUITRY/ E2383 NOT IN KIT

19

10K6

FITTING See Illustration HYDRAULIC CIRCUITRY/ E2383 Not in Kit

20

6668814

SWITCH

21

6672863

VALVE, SOLENOID

21

6670634

SEAL KIT

21

6671527

NUT

22

6724522

INSTRUCTIONS
