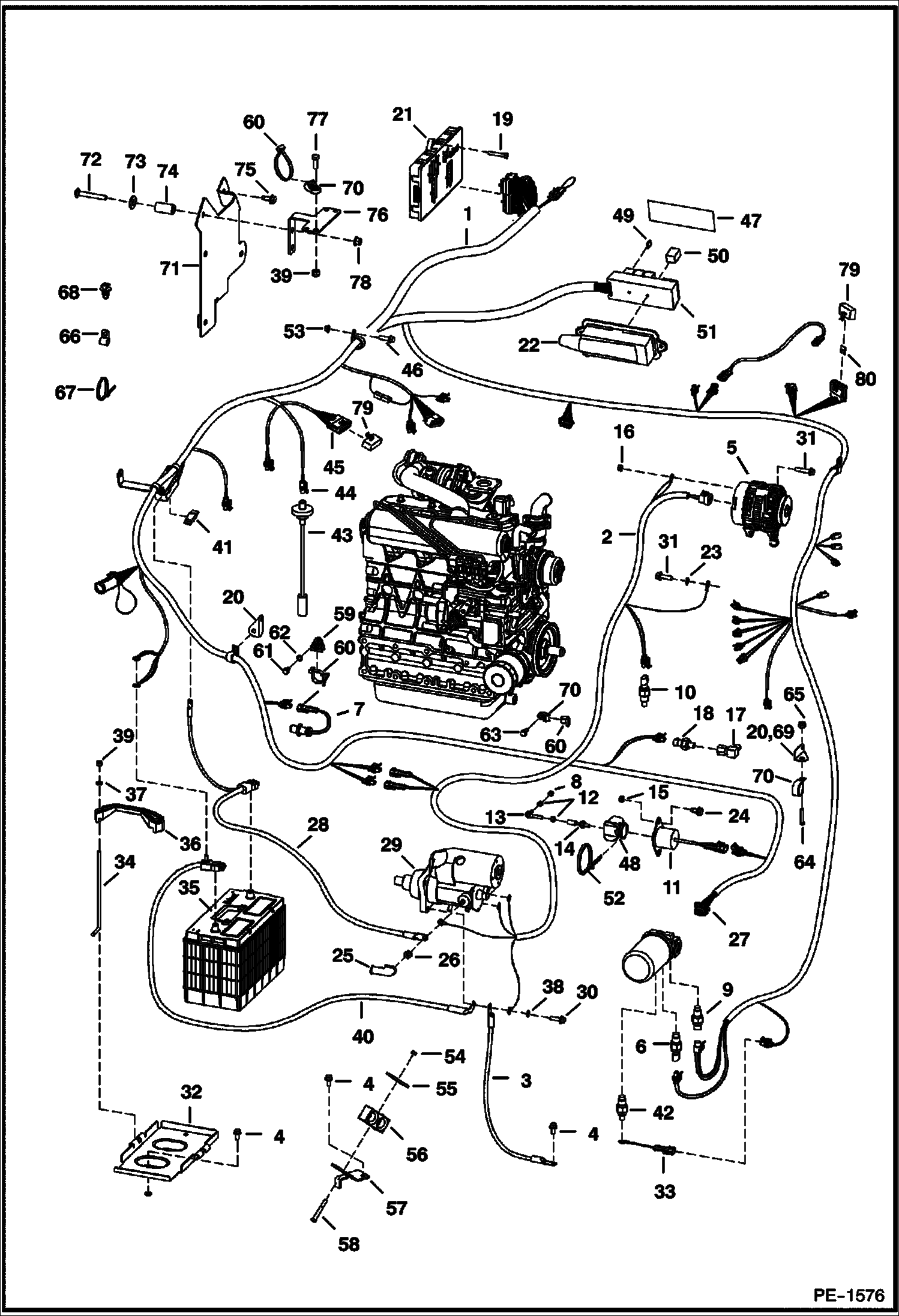

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 5122 58000 & Above, 5124 51000 & Above) (Front & Rear Lights located on Ill. PE1062) ELECTRICAL SYSTEM

1

6729055

HARNESS, MFR main frame

1

6729962

HARNESS, MFR main frame - for 4-plug controller

1

7101088

HARNESS, MFR main frame - for 2-plug controller - W/Ref. 79 & 80 - Was 6732801 - A

1

7101088

HARNESS, MFR

2

6726601

HARNESS alt./starter - W/Ref. 20

2

6726601

HARNESS

2

7101311

HARNESS alt./starter - Was 6729973 - A

2

7101311

HARNESS

3

6565170

CABLE neg

4

84G3712

BOLT 5

5

ALTERNATOR See Illustration ALTERNATOR/ C3529 See Illustration ALTERNATOR/ C3312

6

6727869

SENDER,HYD TEMP

7

6684037

SENSOR rpm - Was 6658260 - B

8

66D4

NUT

9

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

10

6718415

SWITCH eng. temp.

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

43DM8

NUT

17

6707040

ELBOW

18

6674315

SENSOR eng oil pressure

19

43C616

BOLT

20

6714979

BRACKET Use W/Ref. 1 (6729055 Harness)

20

6714979

BRACKET

21

CONTROLLER NLA - Bobcat - 4-plug - Order 6678673 Controller - Was 6678068 - A

21

21

CONTROLLER NLA - Bobcat - 4-plug - Was 6678673 - A

21

CONTROLLER NLA - Was 6678673

21

6682421

CONTROLLER, BOBCAT bobcat - 4 plug W/ boost

21

6678674

CONTROLLER Bobcat - 2-plug

21

6678674

CONTROLLER

22

6718659

HOUSING fuse - boot

23

6E5

WASHER

24

17C410

BOLT 10

25

6560172

COVER

26

4DM10

NUT

27

6676400

CONNECTOR

28

6727528

CABLE See Illustration STARTER/ D2297 POS. - USE W/STARTER

28

6731256

CABLE See Illustration STARTER/ B16488R - pos - Use W/starter

29

STARTER See Illustration STARTER/ D2297 - Was 6685190 - B

30

35C620

BOLT 5

31

29CM820

SCREW

32

6718260

BATTERY PAN

33

6728626

HARNESS

34

6576280

BOLT

35

6674687

BATTERY, DRY 600 AMP

36

6569203

CLAMP

37

25E15

WASHER

38

6E6

WASHER

39

59D5

NUT 5 Use W/Ref. 1 (6729055 harness)

39

59D5

NUT 5

39

59D5

NUT 5 Use W/Ref. 1 (6729962 Harness)

39

59D5

NUT 5

40

6729008

CABLE ground

41

6675155

FUSE, 100A mega

41

6675154

HOLDER high amp fuse

42

SWITCH See Illustration HYDROSTATIC OIL FILTER/ NA1844

43

6674209

SENSOR fuel- W/gasket- Was 7000004 - A

43

6717579

GASKET

44

6646383

CONNECTOR fuel sender

44

6648330

TERMINAL female

45

6677216

CONNECTOR

46

35C616

BOLT 5

47

6718774

DECAL 2'' X 7'' (50,8 MM X 177,8 MM) - FUSE/RELAY

48

6664286

BOOT Order W/Ref. 52

49

6654806

FUSE, 15A

49

6702444

FUSE 25A 5

49

6718034

FUSE, 30A

50

6679820

RELAY relay - Was 6674376 - A

51

6673200

FUSE BLOCK

52

6610510

TIE

53

95D6

NUT Was 91D000006B - A

54

91D5

NUT 5

55

6715132

RETAINER

56

6715197

CLAMP

57

6719230

BRACKET

58

17C540

BOLT

59

6678818

MOUNT Use W/Ref. 1 (6729962 Harness)

60

6624289

STRAP, TIE Use W/Ref. 1 (6729962 Harness)

61

1CM825

BOLT Use W/Ref. 1 (6729962 Harness)

62

25E14

WSHR Use W/Ref. 1 (6729962 Harness)

63

1CM870

BOLT Use W/Ref. 1 (6729962 Harness)

64

17C516

BOLT Use W/Ref. 1 (6729962 Harness)

65

85D5

NUT 5 Use W/Ref. 1 (6729962 Harness)

66

30H60

CLIP Use W/Ref. 1 (6729962 Harness)

67

6678668

STRAP, DUAL TIE Use W/Ref. 1 (6729962 Harness)

68

6678666

MOUNT, STRAP TIE push in - Use W/tie strap

69

6714979

BRACKET Use W/Ref. 1 (6729962 Harness)

70

6678667

MOUNT Use W/Ref. 1 (6729962 Harness)

71

6719562

MOUNT

72

37C540

BOLT

73

25E16

WSHR

74

6714428

SPACER

75

84G3112

BOLT 5

76

6728621

BRACKET Use W/Ref. 1 (6729962 Harness)

77

17C514

BOLT Use W/Ref. 1 (6729962 Harness)

78

83D5

NUT 5 Use W/Ref. 1 (6729962 Harness)

79

6684126

COVER

80

6684415

BUSS BAR
