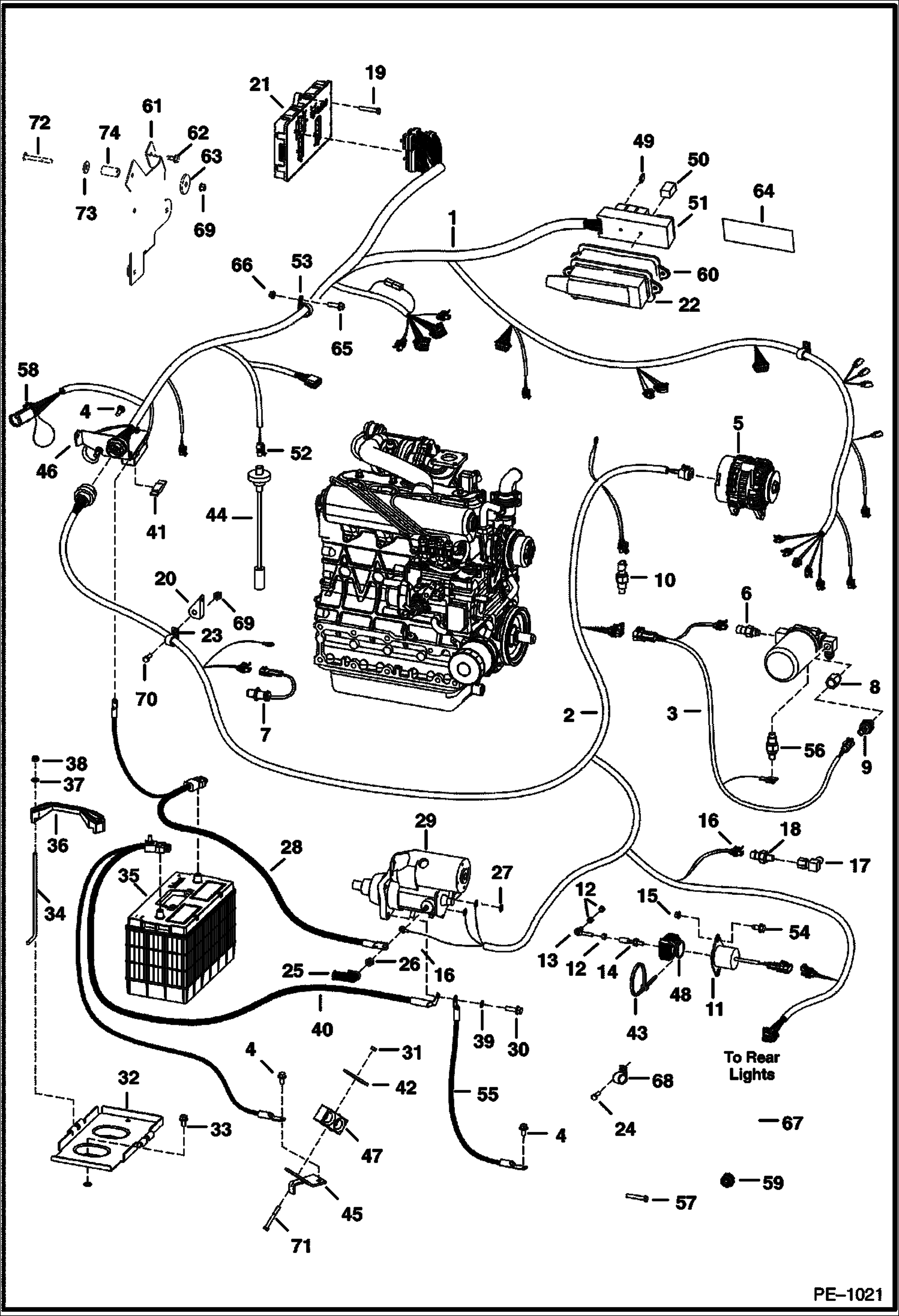

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 5122 50001-57999, 5124 50001-50999, 5126 20001 & Above) ELECTRICAL SYSTEM

1

6719802

HARNESS, MFR W/Ref. 49 -51 & 53 - Was 6719720 - A

1

6719803

HARNESS AHC - W/Ref. 49 - 51 & 53 - Was 6718913 - B

2

6718871

HARNESS engine - W/Ref. 20, 69 & 70

3

6715975

HARNESS filter

4

84G3712

BOLT 5

5

ALTERNATOR See Illustration ALTERNATOR/ C3312

6

6718417

SENDER hyd. temp. - Was 6727869 - D

7

6684037

SENSOR rpm - Was 6658260 - B

8

6718948

SNUBBER W/filter

8

6675278

FILTER

9

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

10

6718415

SWITCH eng. temp.

11

6681513

SOLENOID fuel shut off - Was 6667993 - A

12

62D4

NUT

13

6578363

ROD END swivel

14

6578366

BALL JOINT

15

61D4

NUT 5

16

6672750

CONNECTOR

17

6707040

ELBOW

18

6674315

SENSOR eng oil pressure

19

43C616

BOLT Was 35C000616B - B

20

6714979

BRACKET

21

CONTROLLER NLA - Bobcat - 4-plug - W/O boost - Was 6678673 - A

21

6682421

CONTROLLER, BOBCAT bobcat - 4 plug W/ boost

21

6678674

CONTROLLER Bobcat - 2-plug

21

CONTROLLER See Illustration CONTROLS ELECTRICAL/ PE1042 BOBCAT - AHC, ACS OPTION

22

6718659

HOUSING fuse - boot

23

6675171

CLAMP

24

1CM1220

BOLT

25

6560172

COVER

26

4DM10

NUT

27

4DM5

NUT

28

6719060

CABLE pos.

29

STARTER See Illustration STARTER/ D2297

30

35C620

BOLT 5

31

91D5

NUT 5

32

6718260

BATTERY PAN

33

84G3716

SCREW 5

34

6576280

BOLT

35

6674687

BATTERY, DRY 600 AMP

35

BATTERY CAP

36

6569203

CLAMP

37

25E15

WASHER

38

59D5

NUT 5

39

6E6

WASHER

40

6719059

CABLE ground

41

6675155

FUSE, 100A mega

41

6675154

HOLDER high amp fuse

42

6715132

RETAINER

43

6610510

TIE

44

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

44

6717579

GASKET

45

6719230

BRACKET

46

6726503

BRACKET Was 6718970 - A

47

6715197

CLAMP

48

6664286

BOOT Also Order Ref. 43

49

6654806

FUSE, 15A

49

6702444

FUSE 25A 5

49

6718034

FUSE, 30A

50

6679820

RELAY relay - Was 6674376 - A

51

6673200

FUSE BLOCK

52

6646383

CONNECTOR fuel sender

52

6648330

TERMINAL female - Was 6632946 - B

53

6674673

CLAMP

54

17C410

BOLT 10

55

6713821

CABLE

56

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

57

6716744

BOLT thumb - 1.5''(38,1 mm) long

58

6667533

COVER diagnostics

59

6675096

GROMMET

60

6725302

GASKET See Illustration PANELS/ B16483

61

6719562

MOUNT

62

84G3112

BOLT 5

63

872229

WASHER

64

DECAL See Illustration PANELS/ B16483 2.10'' x 9.4'' (53,3 mm x 238,8 mm) - fuse/relay

65

35C616

BOLT 5

66

95D6

NUT Was 91D000006B - A

67

59D6

NUT

68

30H48

CLIP

69

85D5

NUT 5 Was 85D000008B - B

70

17C512

BOLT 5

71

17C540

BOLT

72

37C540

BOLT

73

25E16

WSHR

74

6714428

SPACER
