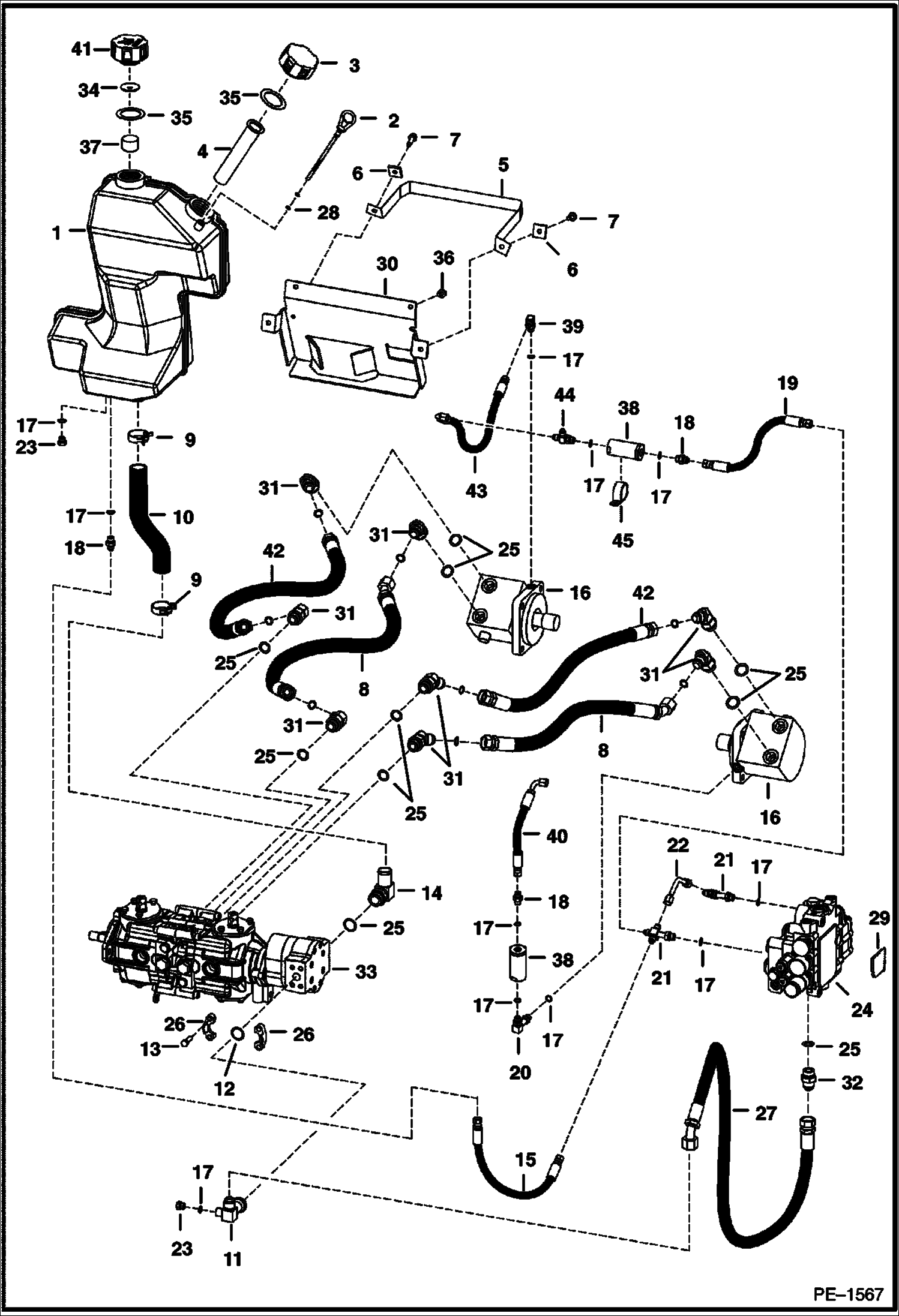

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 5122 67828 & Abv, 5124 52335 & Abv) HYDROSTATIC SYSTEM

1

7108991

TANK W/vented breather cap & non vented fill cap - Was 6732278 - A

2

6577459

DIPSTICK W/Ref. 28

3

6728149

CAP , HYD NON VENTED breather

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6732805

BAND

6

6559447

WASHER

7

84G3716

SCREW 5

8

6736201

HOSE mega seal - Use W/Ref. 31 (6718181 Elbow)

9

5HM42

HOSECLAMP constant tension

10

6732804

HOSE 1.25'' (31,8 mm) I.D.

11

6734048

TEE split flange

12

55K214

O-RING

13

17C620

BOLT

14

6715191

ELBOW W/Ref. 25

15

6735840

HOSE

16

MOTOR See Illustration HYDROSTATIC MOTOR/ C3431

17

79K6

O RING 10

18

15KB0606

FITTING, HYD CONNECTOR W/Ref. 17

19

6717385

HOSE 14.5''(368,3 mm) long

20

6715190

ELBOW W/Ref. 25

21

6817553

CROSS W/Ref. 17

22

6577690

TUBE

23

24K5

PLUG W/Ref. 17

24

VALVE

25

79K12

O RING 10

26

19J12

CLAMP

27

6734246

HOSE one straight and one 45 degree end

27

6726251

HOSE two 90 degree ends

28

25K20010

O RING 10

29

COVER SIDE OF MAIN FRAME

30

6732806

BRACKET tank

31

6737453

ELBOW W/Ref. 25 - mega seal

32

15KB1212

FITTING, HYD CONNECTOR W/Ref 25 - Was 6813608 - A

33

PUMP

34

6701552

BAFFLE

35

6700631

GASKET

36

84G3712

BOLT 5

37

6703427

FOAM FILTER

38

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

39

17KB0606

FITTING W/Ref. 17

40

HOSE NLA - to Ref. 22 - 95'' (241,3mm) long w/short elbow - Was 6715251

40

7100142

HOSE 10'' (254 mm) long w/ long elbow

41

6577785

CAP breather - W/Ref. 17

42

6736200

HOSE mega seal - Use W/Ref. 31 (6737453 Elbow)

43

6702079

HOSE

44

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 17

45

30H79

CLAMP
