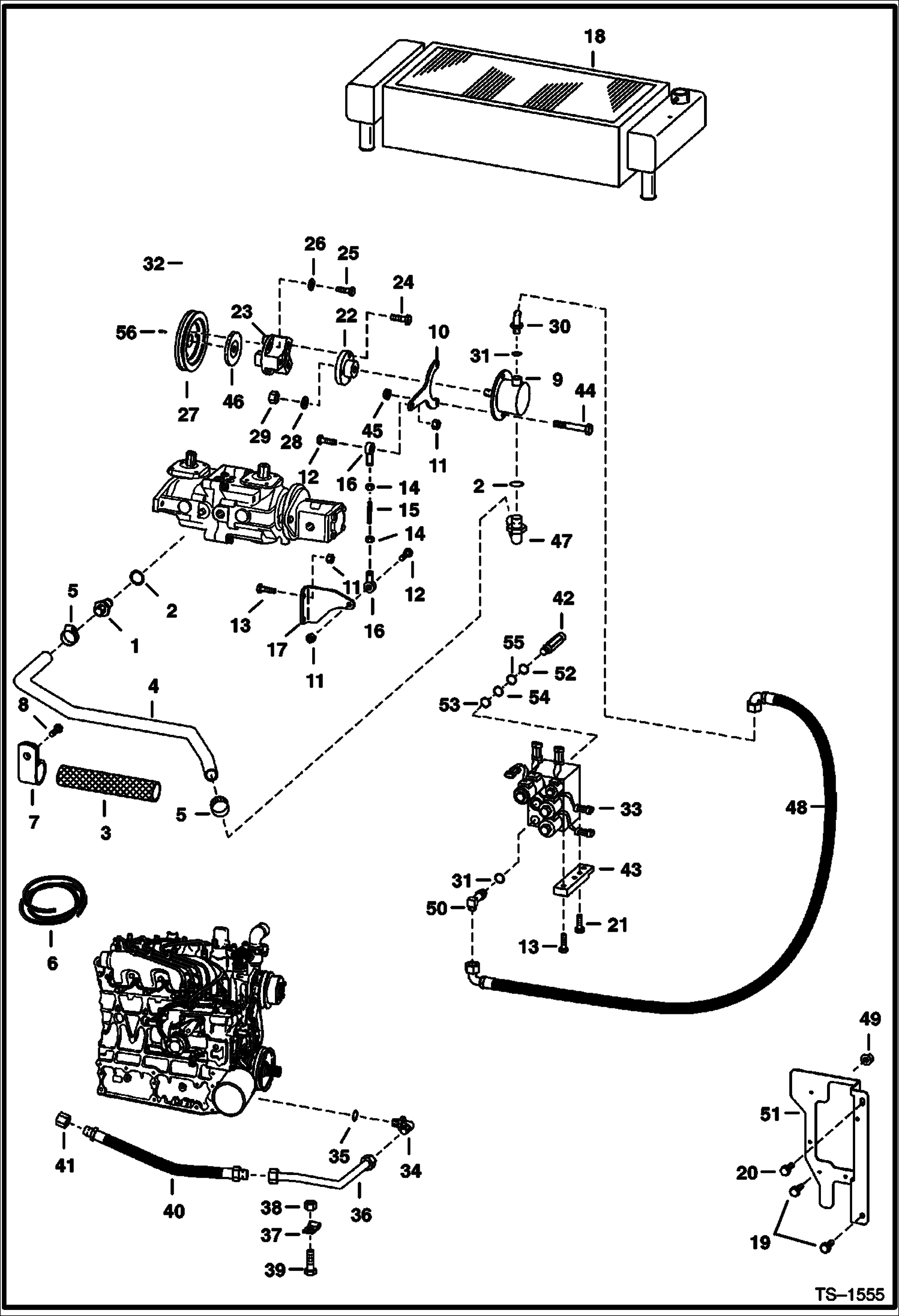

Запчасти Bobcat 700s HIGH FLOW HYDRAULICS HIGH FLOW HYDRAULICS

1

6713124

ADAPTER W/Ref. 2

2

79K16

O RING 10

3

SHIELD NLA - hose - 10''(25,4 mm) long - Order Ref. 6

4

6712854

HOSE

5

44H16

CLAMP worm gear - Was 6666865 - A

5

5HM42

HOSECLAMP constant tension

6

6705749

SHIELD bulk - sold per foot

7

6669672

CLAMP

8

6CM1220

BOLT

9

6667382

PUMP See Illustration HIGH FLOW HYDRAULICS/ B13927 GEAR

10

6703722

ARM torgue

11

85D6

NUT, 5

12

17C620

BOLT

13

17C616

BOLT 5

14

62D6

NUT 5

15

6703719

ROD

16

6512954

ROD END R.H. threads

17

6704016

MOUNT

18

RADIATOR

19

84G3712

BOLT 5

20

84G3716

SCREW 5

21

35C610

BOLT 5

22

6705129

COUPLER

23

6705112

COUPLER

24

17C720

BOLT

25

17C524

BOLT

26

25E15

WASHER

27

6705780

PULLEY

28

25E21

WASHER 5

29

62D8

NUT

30

ELBOW NLA - W/Ref. 31 - tapered boss face - Was 17KV00007B - A

30

97K10

O-RING 10 flared end

30

17KB1010

FITTING, HYD ELBOW W/Ref. 31 - flat boss face

31

99K10

O'RING tapered boss face

31

79K10

O RING 10 flat boss face

32

6704720

BELT, ALT See Illustration ENGINE & ATTACHING PARTS/ E2098

33

VALVE See Illustration HIGH FLOW HYDRAULICS/ TS1434R CONTROL - W/Ref. 42

34

763818

ELBOW W/Ref. 35

35

79K12

O RING 10

36

6705436

TUBE

37

30H40

CLAMP

38

85D8

NUT, 5

39

17C816

BOLT

40

6705442

HOSE

41

36K7

FITTING

42

6676155

RELIEF VALVE relief - Was 6665626 - A

43

6705471

MOUNT

44

17C724

BOLT

45

83D7

NUT

46

6710480

RETAINER nut

47

1629414

ELBOW W/Ref. 2

48

6714352

HOSE

49

25E14

WSHR Use between Ref. 51 & timer module

50

6714134

ELBOW

51

6731060

SHIELD Was 6717812 - A

52

6665569

WASHER backup

53

6665570

RING glide

54

25K20016

O RING 10

55

58K017

O-RING 10

56

3974546

KEY
