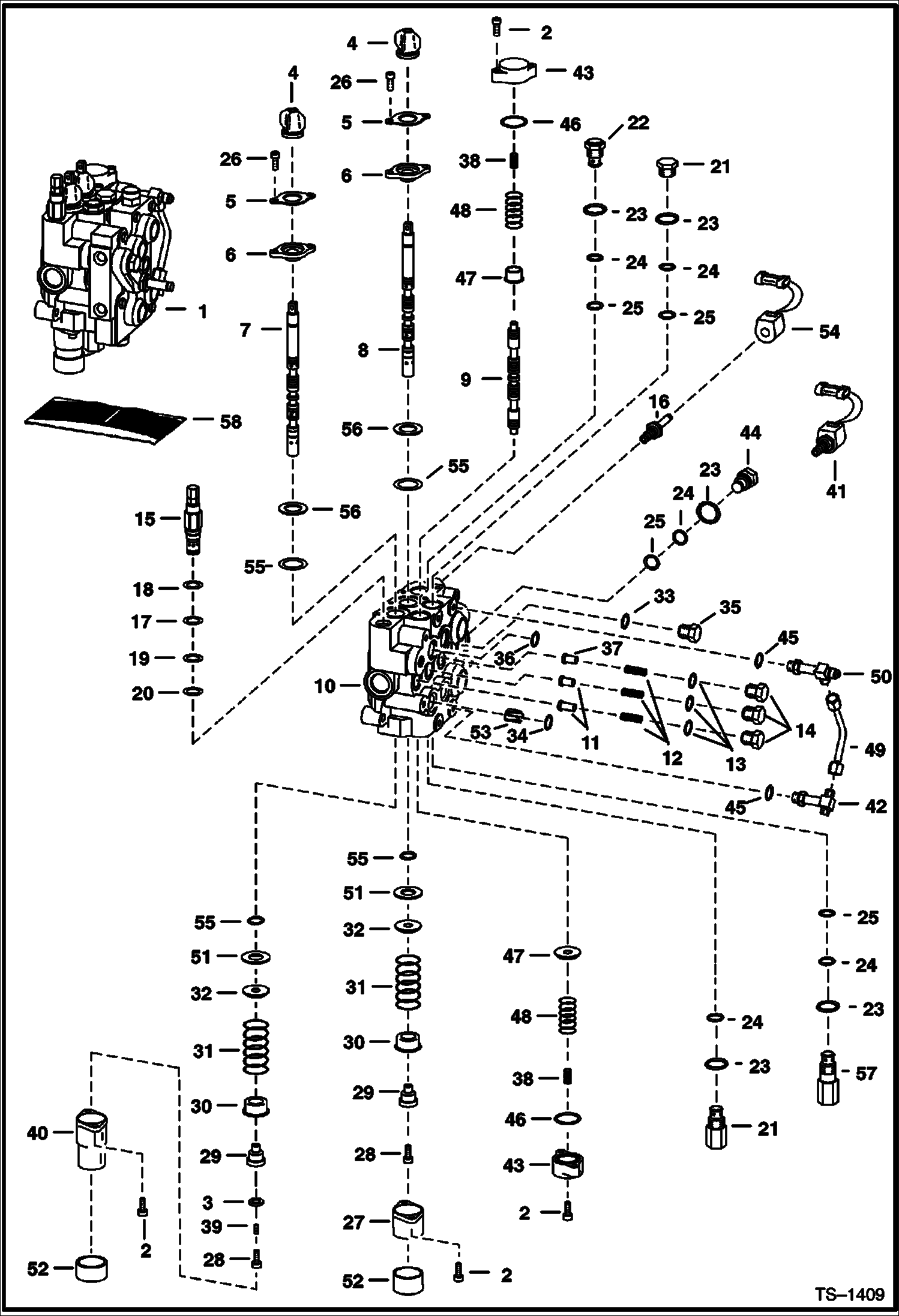

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (Advanced Hand Controls) (S/N 5122 62999 & Bel, 5124 51999 & Bel) HYDRAULIC SYSTEM

1

VALVE See BTI368 - NLA - valve is minus all fittings, relief valves, anti-cavitation valves, solenoid coils & solenoid spools - remove & use existing parts from old valve or order new parts as needed

1

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

2

29G416

BOLT

3

54K20002

O'RING 10

4

6587763

BOOT

5

6589564

RETAINER

6

6589565

BUSHING seal

7

7222716

SPOOL, LIFT lift - #1 or red - Was 6674297 - A

7

7222717

SPOOL, LIFT lift - #2 or green - Was 6674298 - A

7

7222718

SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674299 - A

8

SPOOL NLA - tilt - # 1 or red - Order 7108242 spool - SEE NOTE - Was 6677662 - A

8

SPOOL NLA - tilt - # 2 or green - Order 7108242 spool - SEE NOTE - Was 6677663 - A

8

6674302

SPOOL tilt - # 3 or Black

9

6588074

SPOOL auxiliary

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

VALVE NLA - main relief - 2550 PSI - W/Ref. 17-20 - preset at factory - Was 6676197 - A

15

VALVE NLA - 2600 PSI - Was 6680145 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6666616

STEM

17

58K017

O-RING 10

18

6665569

WASHER back-up

19

25K20016

O RING 10

20

6665570

RING glide

21

6678574

RELIEF VALVE port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6673184 - A

22

6667549

VALVE anti-cavity check - W/Ref. 23-25

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back-up washer not required

26

29G412

BOLT

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

95K12

O-RING tapered boss face - Was 99K000012B - B

33

75K12

O'RING 10 flat boss face

34

55K212

O RING 10

35

PLUG NLA - W/Ref. 33 - tapered boss face - socket head - Was 90KV00008B - A

35

90K8

PLUG W/Ref. 33 - flat boss face

36

55K204

O RING 10

37

6596569

SEAT

38

6589045

SPRING white

39

6801167

PLUG plastic - 0.69'' long

40

6803092

BONNET .625'' flange

41

6665084

SOLENOID solenoid - W/Ref. 16 & 54 - Was 6653395 - B,D

41

6586459

SEAL KIT

42

6817552

CROSS W/Ref. 45 - W/flared end O-ring - flat boss face - Was 6805241

42

97K6

O RING flared end

43

6588781

END CAP

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10 flat boss face

46

58K124

O RING 10

47

7108780

SLEEVE Was 6595951 - A

48

6596332

SPRING

49

6577690

TUBE

50

6805243

TEE W/Ref. 45 - flat boss face - W/ flared end O-ring

50

97K6

O RING flared end

51

6595663

BUSHING

52

6662848

CAP

53

6534630

RESTRICTOR .134/.141

54

6717706

COIL, 10 VOLT W/nut - 10 volt

54

6676566

NUT

55

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

56

1K127

O-RING 10 Was 93K127 - A

57

VALVE port relief - 3400-3600 PSI - W/Ref. 23-25 - Was 6671632

58

6816250

KIT, SEAL one spool - Ref. 2,3, 4, 26, 55 & 56 - Was 6803605 - A

58

6632279

KIT, SEAL main relief - Ref. 17-20 - main relief

58

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

58

6816253

KIT, SEAL complete - Ref. 2, 4, 13, 16-20, 23-26, 34, 36, 42, 45, 46, 55 & 56 - Was 6809448 - A
