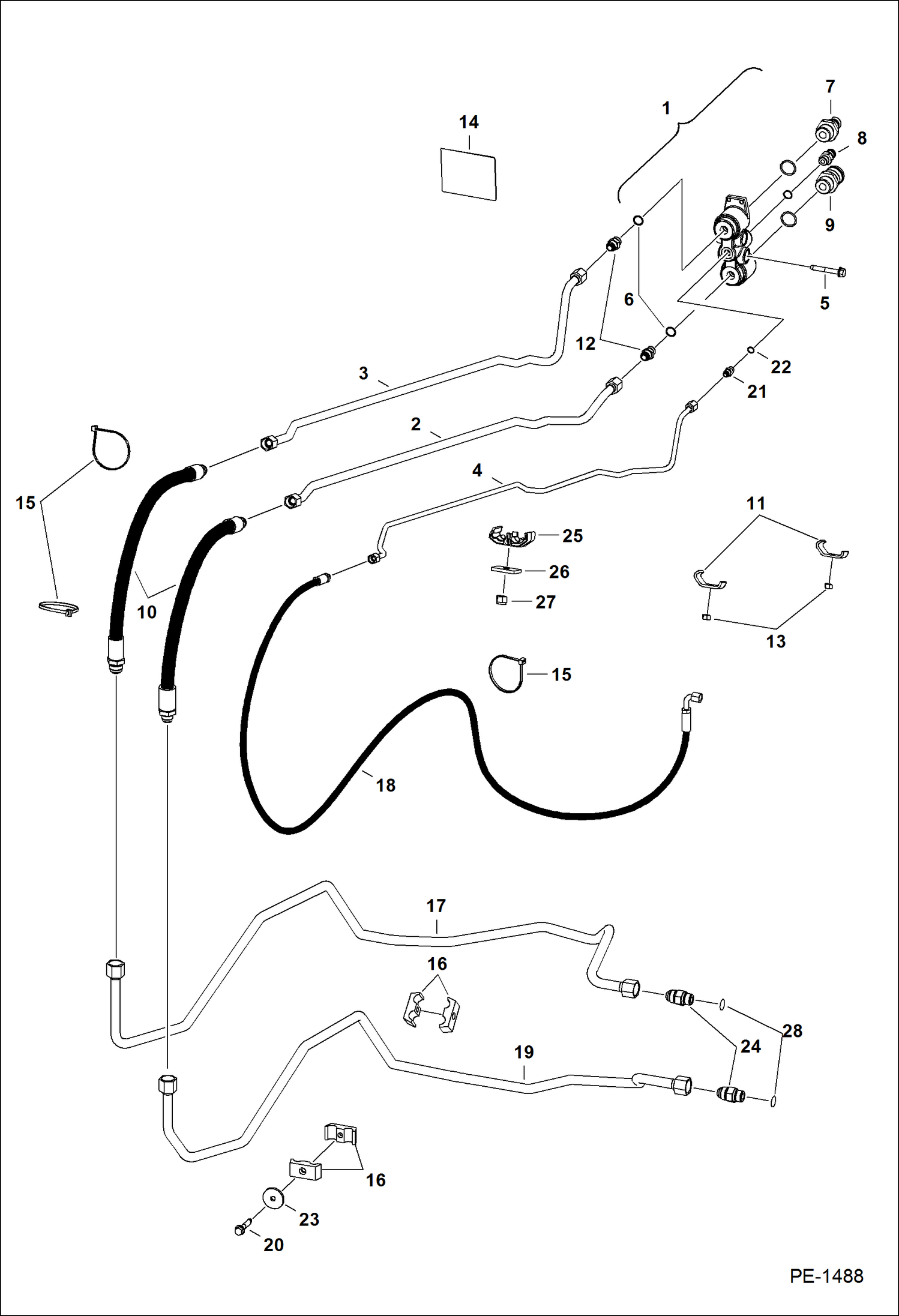

Запчасти Bobcat 700s AUXILIARY HYDRAULICS (W/Pressure Relief Coupler Block) (S/N 5122 63235 & Abv, 5124 52027 & Abv) HYDRAULIC SYSTEM

1

6678951

BLOCK ASSY. coupler

2

6732129

TUBE

3

6732130

TUBE

4

6732134

TUBE

5

84G3740

BOLT

6

79K12

O RING 10

7

6679837

COUPLER coupler - male - FF

7

6679841

SEAL blue

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

8

6679840

SEAL blue

9

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

9

6680020

SEAL KIT (3) O-rings & (3) back-up washers

9

6680018

COUPLER, KIT female - Use W/hydraulic breaker

10

6729155

HOSE W/cover

11

CLAMP NLA - Order Ref. 25-27 - Was 6731732 - A

12

6679835

KIT adapter - W/spring & Ref. 6

12

97K6

O RING flared end

13

95D6

NUT Was 91D000006B - A

14

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

6732128

TUBE

18

6732220

HOSE case drain - 91'' (2311,4 mm) long

18

6735139

HOSE .375'' I.D. - 91'' (2311,4 mm) long

19

6732127

TUBE

20

84G3732

BOLT

21

ADAPTER NLA - W/Ref. 22 - tapered boss face - Was 15KV00005B - A

21

97K6

O RING flared end

21

15KB0606

FITTING, HYD CONNECTOR W/Ref. 22 - flat boss face

22

99K6

O RING tapered boss face

22

79K6

O RING 10 flat boss face

23

872229

WASHER

24

15KB1212

FITTING, HYD CONNECTOR W/Ref. 6

25

6717951

CLAMP

26

6553709

WASHER

27

59D8

NUT 5
