Запчасти Bobcat 700s AUXILIARY HYDRAULICS (W/Pressure Relief Valve) (S/N 5122 63234 & Bel, 5124 52026 & Bel) HYDRAULIC SYSTEM

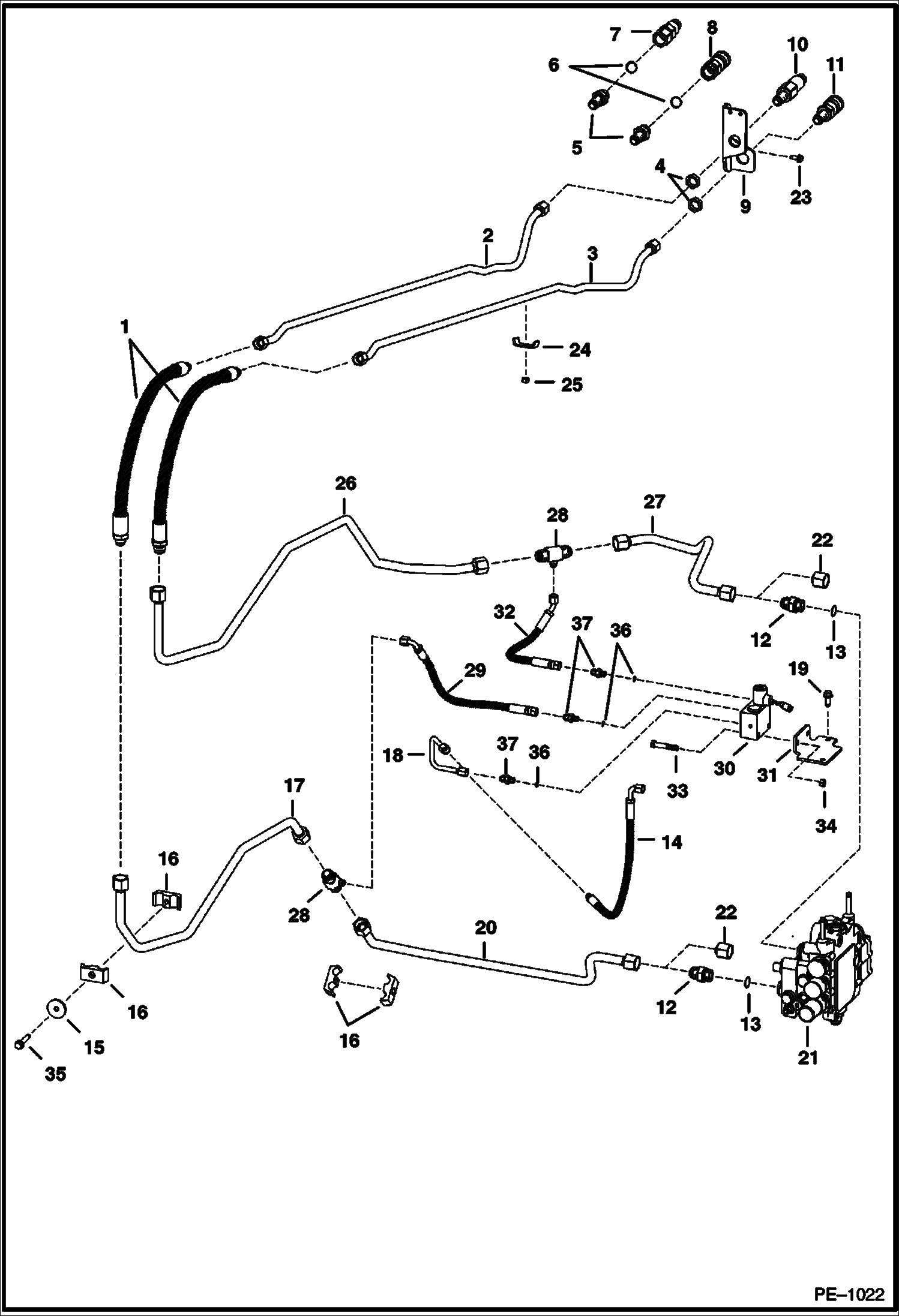

Схема запчастей Bobcat 700s - AUXILIARY HYDRAULICS (W/Pressure Relief Valve) (S/N 5122 63234 & Bel, 5124 52026 & Bel) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6714595

HOSE

2

6711737

TUBELINE, HYD

3

6727801

TUBELINE, HYD Was 6711738 - A

4

86F7

LOCK NUT

5

ADAPTER NLA - W/Ref. 6 - flat boss face W/flared end O-ring - Was 6715185 - A

5

97K10

O-RING 10 flared end

5

6812816

ADAPTER W/Ref. 6 - flat boss face

6

79K10

O RING 10 flat boss face

6

99K10

O'RING tapered boss face

7

QUICK COUPLER NLA - FF Male - Order Ref. 10 - Was 6667808 - B

7

7

6679841

SEAL Was 6672026 - A

8

QUICK COUPLER NLA - FF Female - Order Ref. 11 - Was 6672960 - B

8

9

6713850

MOUNT

10

6676444

COUPLER, FF MALE FF Male

10

6676444

COUPLER, FF MALE

11

6676446

COUPLER, FF FEMALE FF Female

11

6676446

COUPLER, FF FEMALE

12

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 15KN00008B - A

12

97K12

O'RING flared end

12

ADAPTER NLA - W/Ref. 13 - flat boss face W/flared end O-ring - Was 6812646 - A

12

97K12

O'RING flared end

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

13

99K12

O RING tapered boss face

13

79K12

O RING 10 flat boss face

14

6719655

HOSE

15

872229

WASHER

16

6592506

CLAMP

17

6717911

TUBE

18

6719211

TUBE

19

84G3716

SCREW 5

20

6717910

TUBE

20

6729912

TUBE

21

VALVE

22

36K8

CAP

23

84G3112

BOLT 5

24

6502203

CLAMP

25

95D6

NUT Was 59D000006B - B

26

6718096

TUBE

27

6718097

TUBE

28

6717923

TEE

29

6717919

HOSE

30

VALVE NLA - W/.4375'' threaded ports - Order 6678150 Valve & (3) of Ref. 37 (15KB-606 Adapter) - Was 6674372 - A

30

6678150

VALVE W/.5625'' threaded ports

31

6717922

BRACKET

32

6718842

HOSE

33

17C636

BOLT

34

95D6

NUT Was 91D000006B - A

35

84G3732

BOLT

36

79K4

O RING 10 flat boss face

36

99K4

O'RING tapered boss face

37

CONNECTOR NLA - W/Ref. 36 - flat boss face - Use W/Ref. 30 (NLA/6674372 Valve) - Was 6718109 - A

37

97K6

O RING flared end

37

15KB0604

FTG HYD S CONNECTOR W/Ref. 36 - flat boss face

37

ADAPTER NLA - W/Ref. 36 - tapered boss face - Use W/Ref. 30 (6678150 Valve) - Was 15KV00005B - A

37

97K6

O RING flared end

37

15KB0606

FITTING, HYD CONNECTOR W/Ref. 36 - flat boss face - Use W/Ref. 30 (6678150 Valve)

Выбрано товаров: 58
