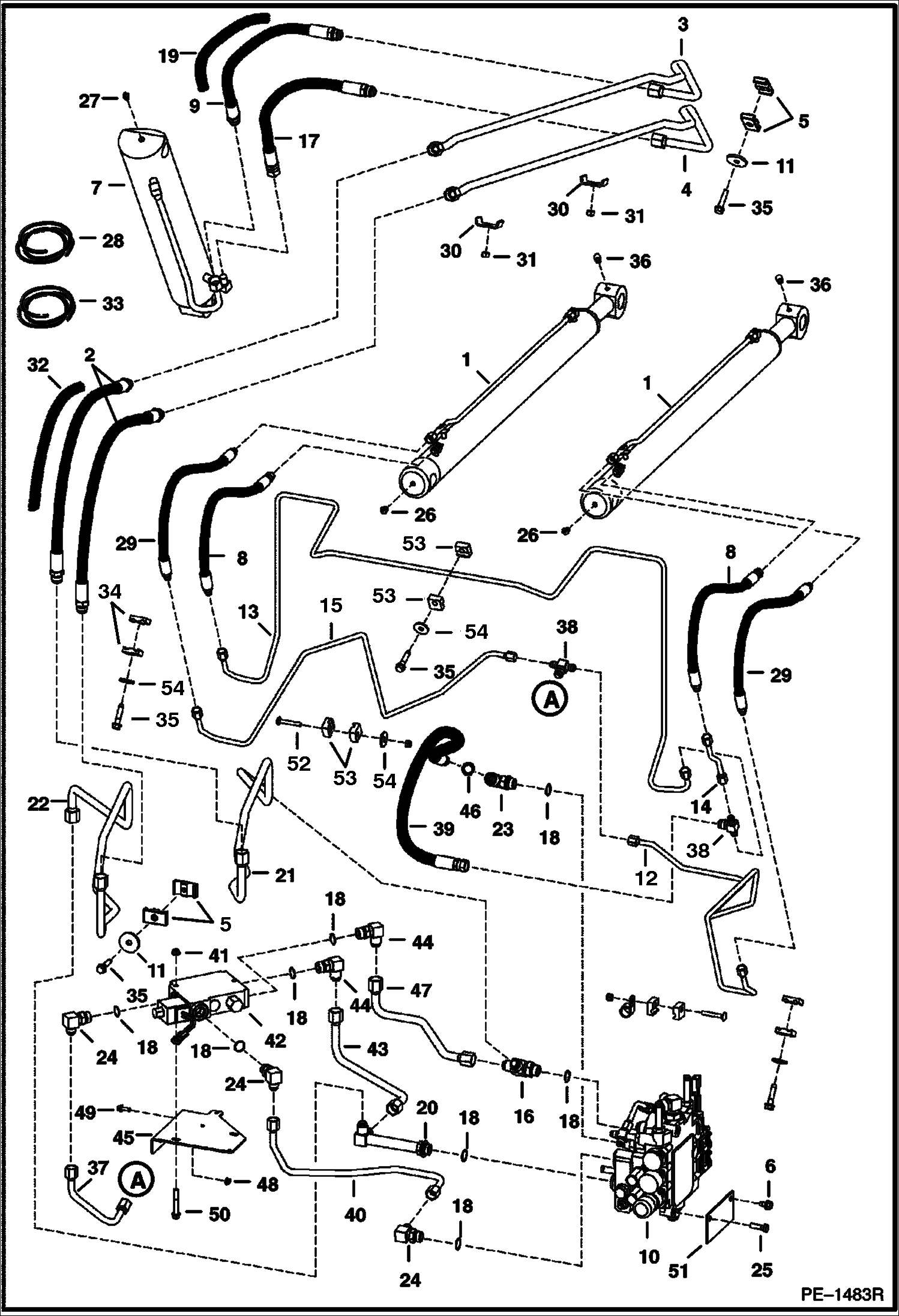

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 5122 63000 & Abv, 5124 52000 & Abv) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ TS1097 LIFT

2

6539418

HOSE W/conduit - Was 6713338 - A

3

6712981

TUBE

3

6733094

TUBE

4

6712980

TUBE

4

6733095

TUBE

5

6701893

CLAMP

6

17C620

BOLT

7

CYLINDER TILT

8

6727686

HOSE

9

6704335

HOSE

10

VALVE

11

872229

WASHER

12

6729911

TUBE lift

13

6730916

TUBE lift

14

6730917

TUBE lift

15

6729913

TUBE lift

16

ELBOW NLA - W/Ref. 18 - tapered boss face - Was 21KN00007B - A

16

97K10

O-RING 10 flared end

16

21KB1010

FITTING, HYD TEE W/Ref. 18 - flat boss face

17

6704336

HOSE

18

99K10

O'RING tapered boss face

18

79K10

O RING 10 flat boss face

19

COVER NLA - 18''(457,2 mm) long - Order Ref. 28

20

6730142

TEE W/Ref. 18 - check boss face to determine correct replacement o-ring

20

97K10

O-RING 10 flared end

21

6712703

TUBE tilt

22

6729910

TUBE tilt

23

ELBOW NLA - W/ 1.0'' nut - W/Ref. 18 - tapered boss face - Was 6727639 - A

23

97K10

O-RING 10 flared end

23

6814531

ELBOW W/ 1.0625' nut - W/Ref. 18 - flat boss face

24

17KB0810

FITTING, HYD ELBOW W/Ref. 18 - flat boss face - Was 6715716 - A

25

84G3710

SCREW

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

29

6727687

HOSE Was 6578808 - A

30

6502203

CLAMP

31

95D6

NUT

32

COVER NLA - 30''(762 mm) long - Order Ref. 33

33

6643249

CONDUIT 1'' (25,4 mm) ID - bulk - sold per foot

34

6726277

CLAMP

35

84G3728

BOLT

36

12H15

FITTING, GREASE 5

37

6727627

TUBE lift

38

6727659

TEE

38

97K8

O-RING flared end

39

6730915

HOSE W/Ref. 46

40

6727628

TUBE

41

57D5

NUT

42

VALVE NLA - order 6673959 valve - Was 6666341 - A

43

6727626

TUBE

44

ELBOW NLA - W/Ref. 18 - tapered boss face - Was 17KV00007B - A

44

97K10

O-RING 10 flared end

44

17KB1010

FITTING, HYD ELBOW W/Ref. 18 - flat boss face

45

6704833

BRACKET

46

79K8

O RING 10

47

6727629

TUBE

48

57D4

NUT

49

35C412

BOLT

50

35C536

BOLT

51

6727837

COVER

52

37C532

BOLT

53

6727707

CLAMP

54

619021

WASHER, 5
